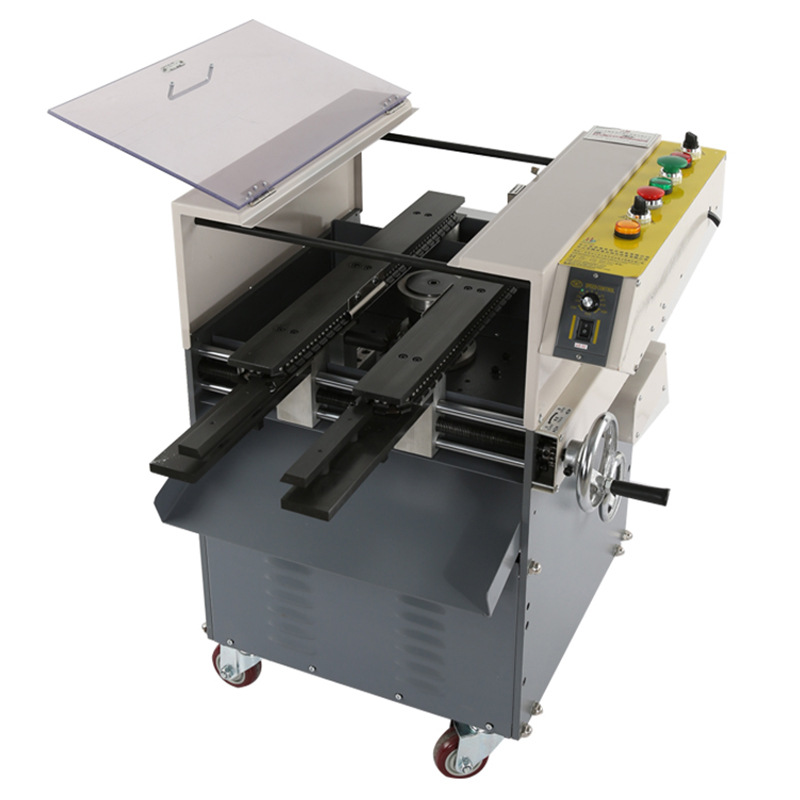

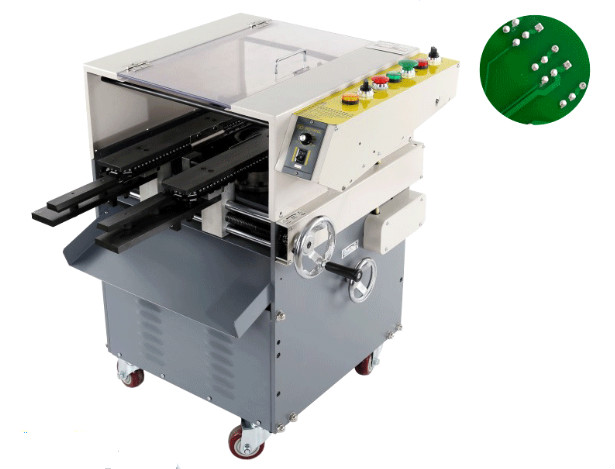

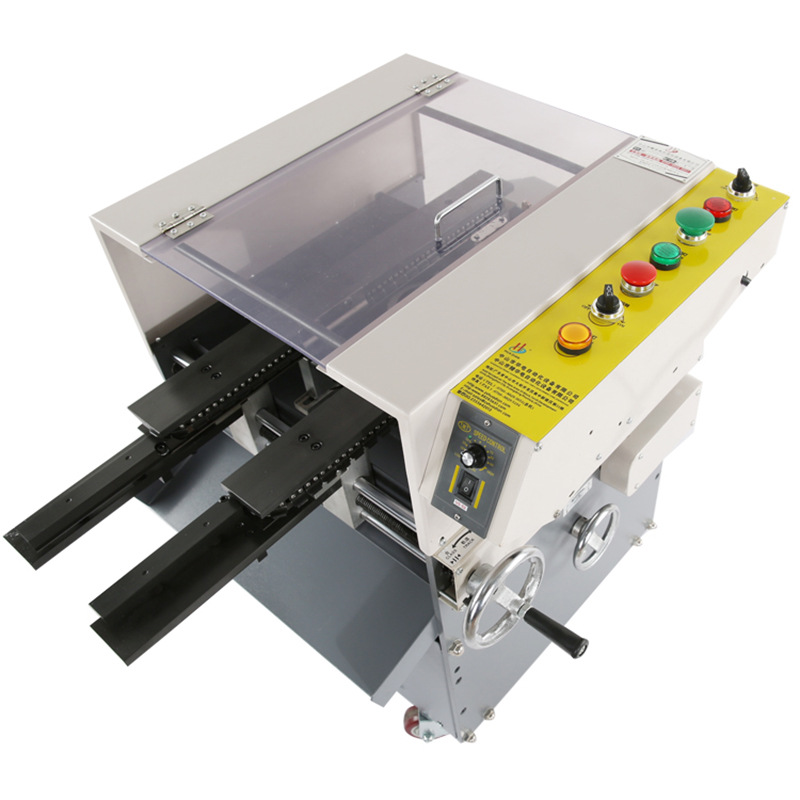

Dip soldering PCB Lead Leg Cutting Machine
automatic pcb lead leg cutting machine
Dip Soldering pcb lead legs cutting machine
Characteristics
1. This machine is to cut the lead legs on the pcb boards after wave soldering or dip soldering components on the pcb boards .

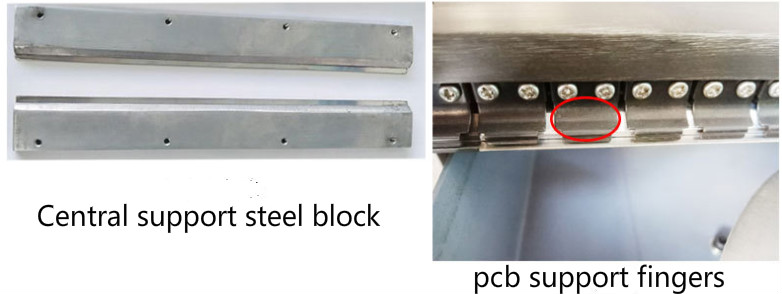

2. The pcb board is clamped by the fingers feeding automatically inside the machine on the stainless rail which improve the cutting stability .
3. The pcb feeding speed can be adjusted according to the components legs sizes which can improve the blade life time .

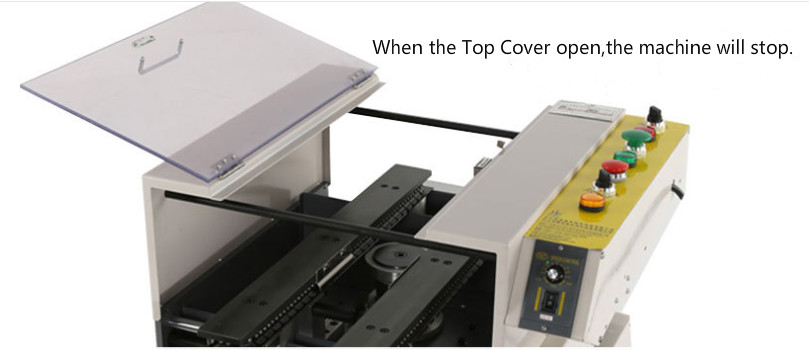

4. The pcb lead leg cutting machine equipped with cover safety sensor ,when the top cover open ,the blade will stop to run ,prevent safety accident ,such as hand cut /injury .
Technical Specifications
|
Machine Model |
LD250ACT |
|
Blade Rotation Speed |
4500rR/MIN |
|
PCB Board Feeding |
Automatical Feeding inside |
|

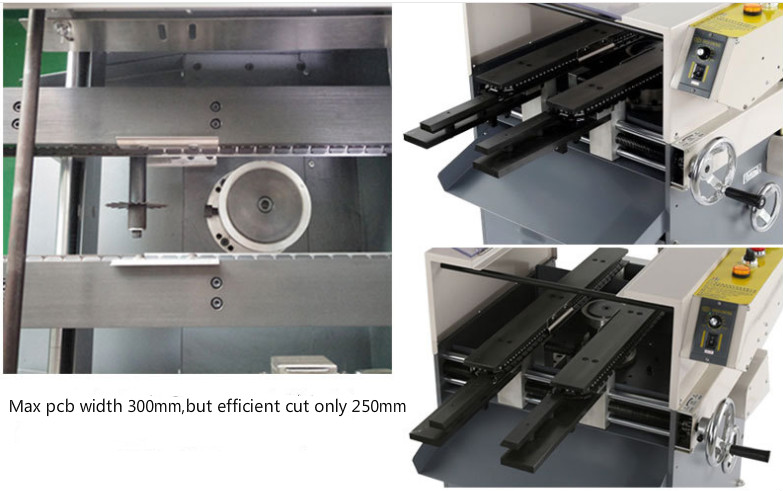

Max Cutting pcb sizes |
（Length no Limit）*Width 300mm |
|
Efficient cutting pcb max width |
250mm |
|
Blade Diameters |
D=250MM |
|
PCB Width Adjust |
Manual Screw |
|
Blade Height Adjust |
Manual Screw |
|
No.of Blade including |
1 PCS (Mitsubishi Blade) |
|
Leag Leg Length after cutting |
1mm±0.3mm |
|
Net Weight |
Approx 115 KGS |
|
Machine Sizes |
(L)75cm *(W) 60cm*(H) 86cm |
|
Power Supply |
AC Single Phrase ,22V ,50/60Hz,550W |
|
PRICE |
2600 USD /SET |

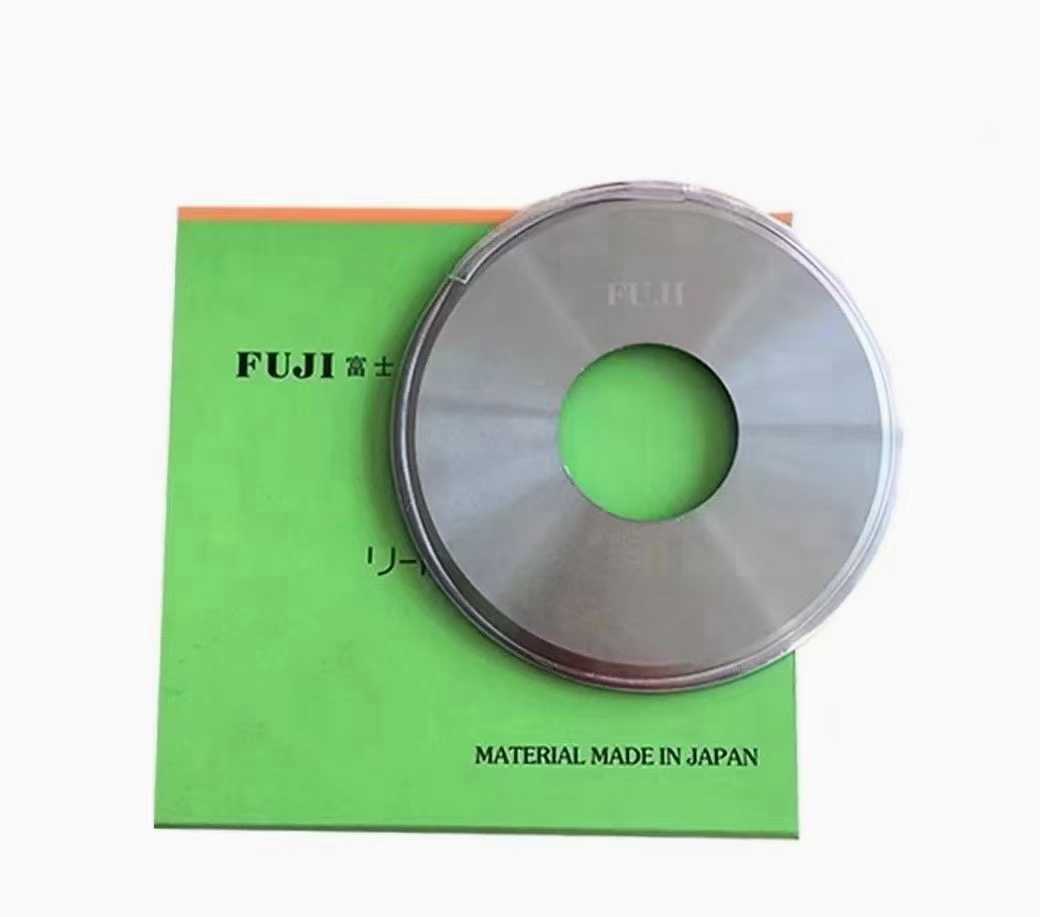

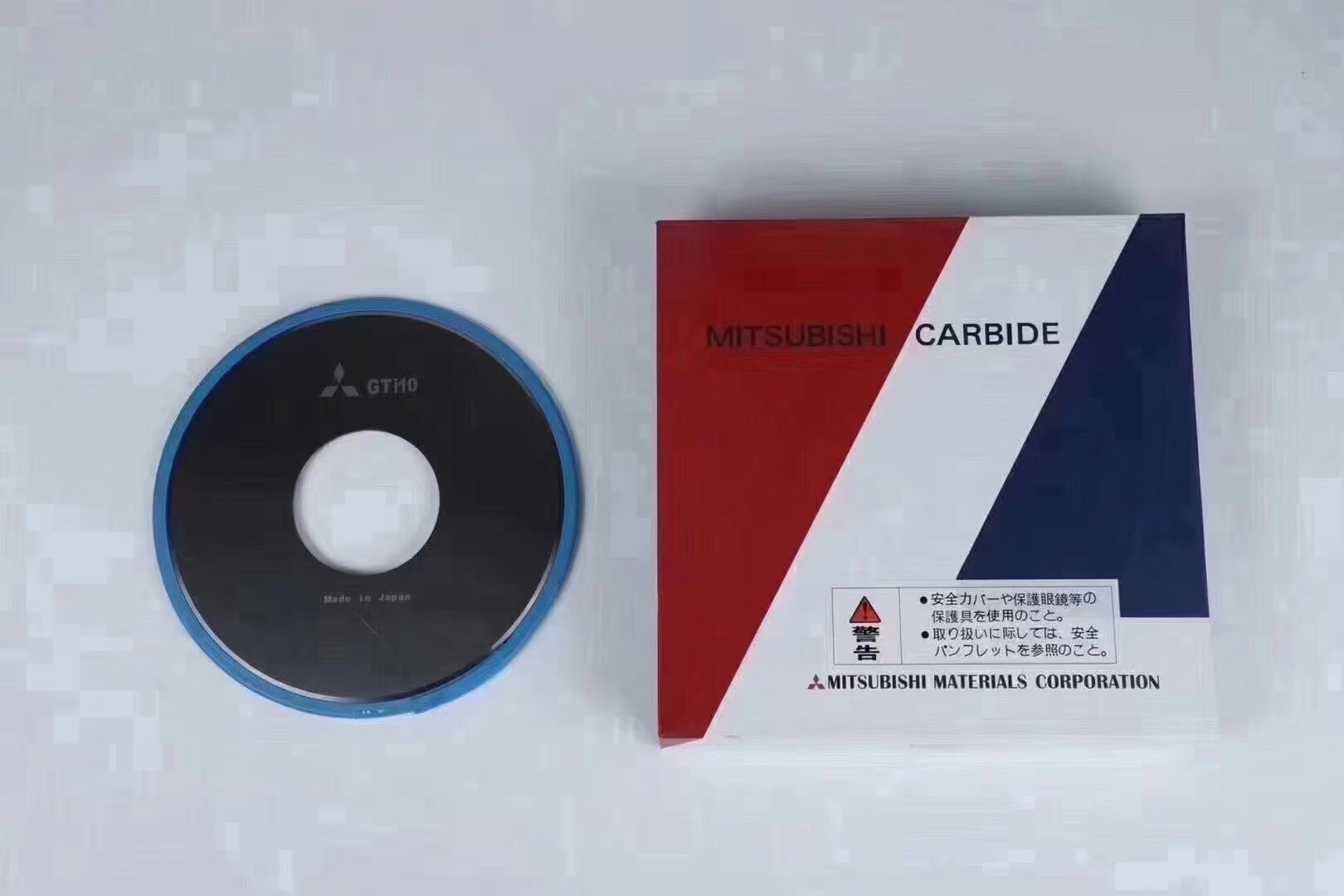

Mitsubishi Blades and JUKI Blades Opional

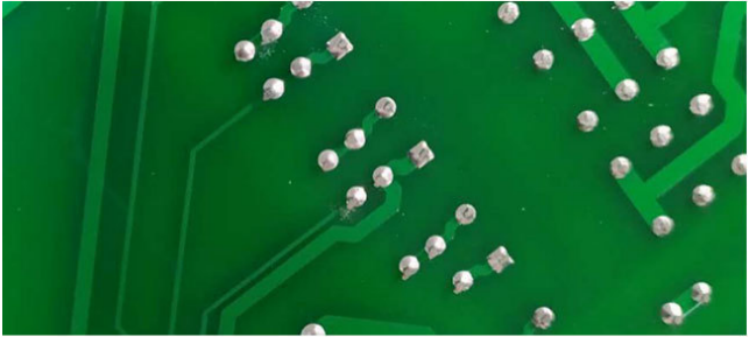

Cutting Effect
