Led Lights Aging Testing Machine
Led Lights Aging Testing Line
Led Lights Aging Testing Machine is for check the led lights whether can suffer from the electric power voltages fluctuations and on-off swithes for a time (about 30 mins ) . The Aging Testing Machine will not come out any report or data , its principle is simulation the daily use of a led light.

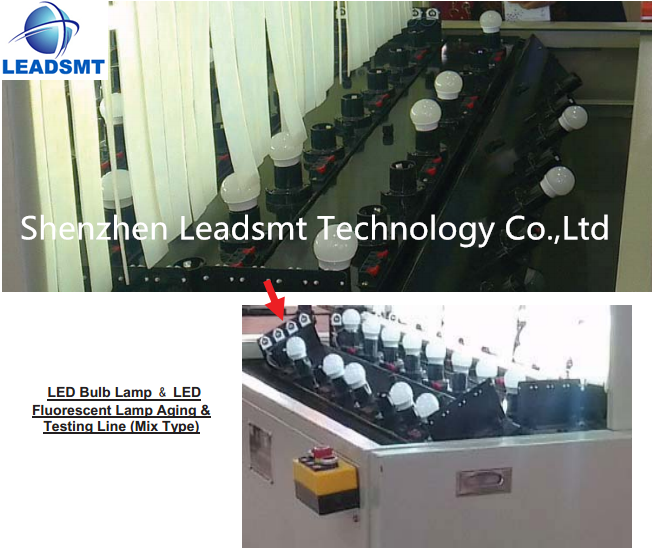

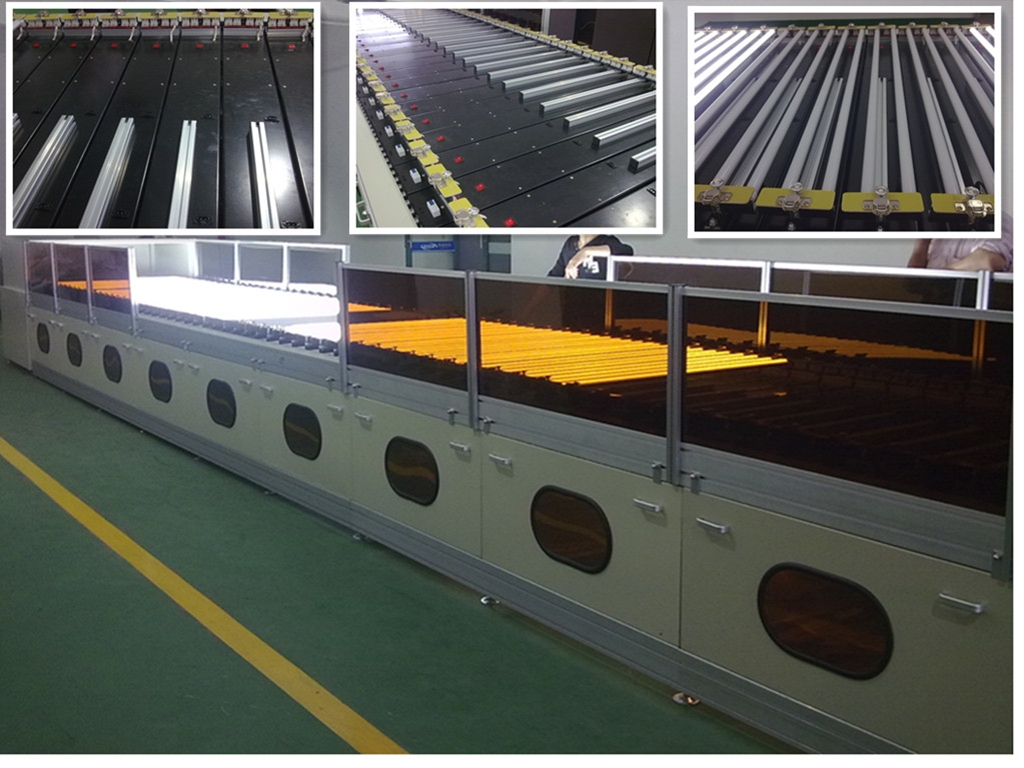

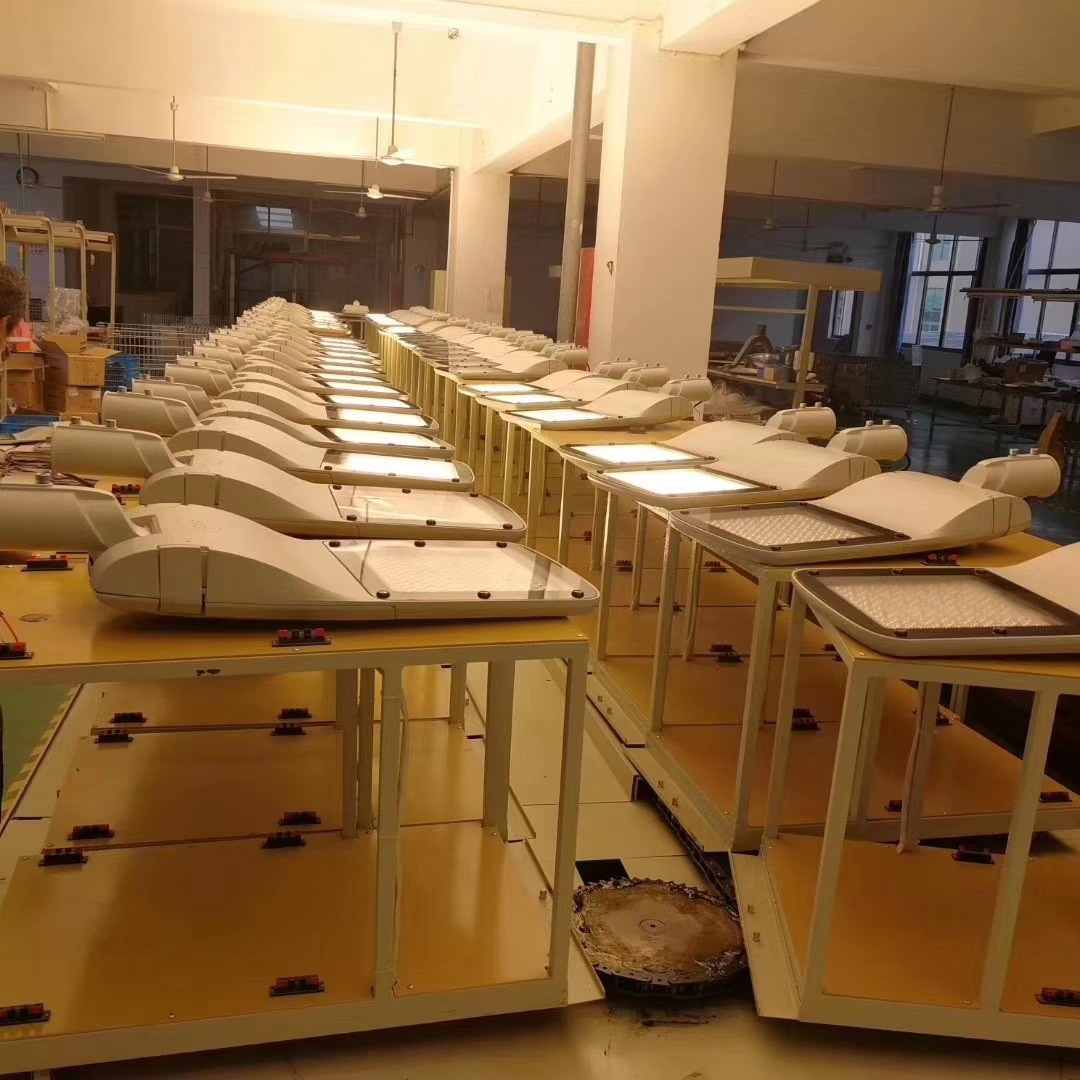

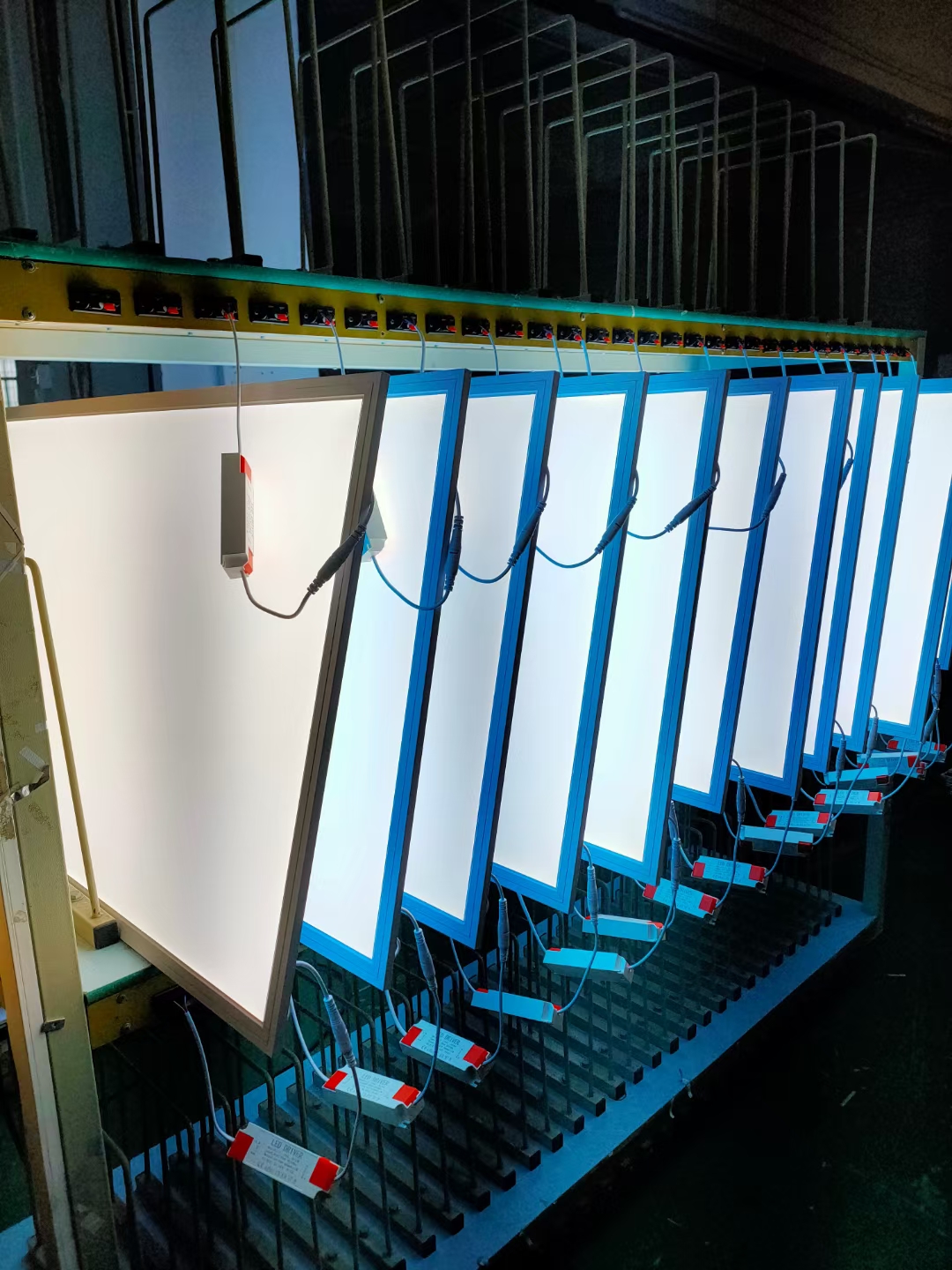

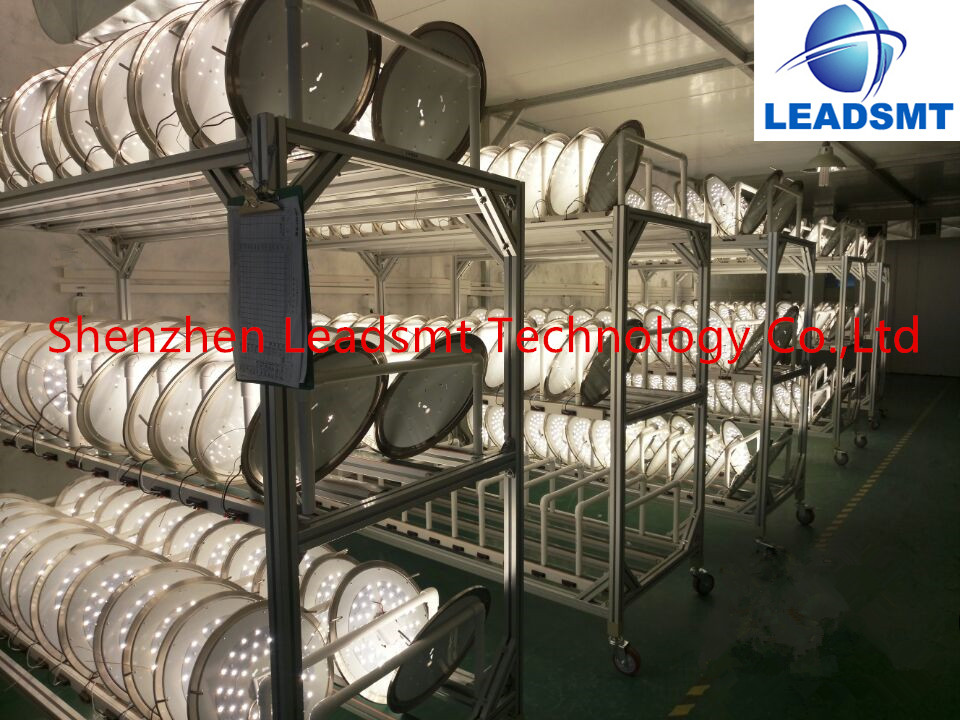

There is no standard machine for Led Lights Aging Testing Machine , all the aging tesing machines /aging testing Line is made according to the types of Led lights that need to be aging test . therefore , there are different types of aging testing machine , such led bulbs aging testing line ,Led Tube Light aging testing line , led flood light aging testing line , led street line aging testng line , led pannel lights Aging test Line , Led bulbs and Tubes Aging Testing Line , Led street Lights & Led flood Lights & Downlights Aging Testing Line etc .
The Length of the line (machine) depends on the aging test capacity . Normally the Length of the aging testing Line is about 12M Long (including control box),the length also manufactured based on the led lights features .

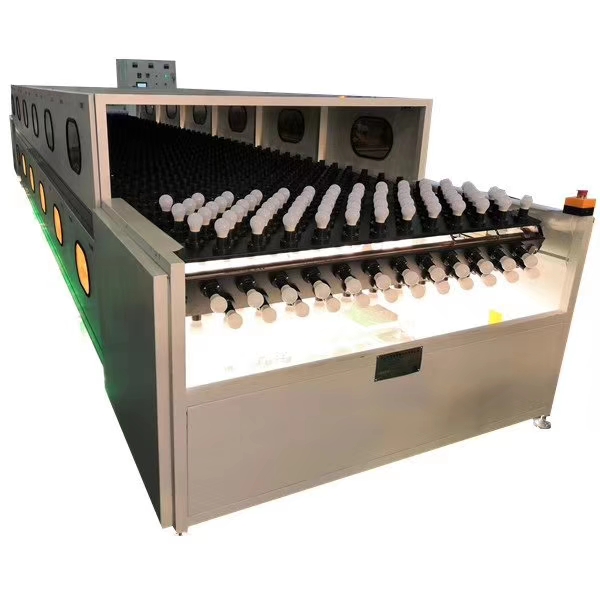

Led Bulbs Aging Testing Machine technical details
| Machine Sizes | 1200(L)*1540(W)*800(H)MM |
| Function & Features |
This Equippment is specialized in Led bulbs (E27&B22 end cap) Aging Testing Through different voltages (0-300V) ,High temperature 70-80 degree centigrade ,on-off switches functions, high temperature and high voltage aging , roaming function and normal light on function to observe the lights with problem in short circuit ,blasting capacitance,bad wires connections ,failure soldering inside ,also aging test the led drivers . Simulation the led bulbs daily use .Electricity control system adopt variable frequent regulation system ,easy to operation . |
| Motor | Adopt Taiwan brand 1500W east cropland motor,WPS 80 Type 1:60 of Jiacheng Reducer ,famous brand 2HP frequency converter,frequency conversion stepless speed regulators ,linear speed 2-6M/min can be adjustable . |
| Conveyor Chain | Made by Shanghai chain factory ,an inch of double pitch ,single ear double holes chain,each long 20meters |
| Machine body&frame | Rack with 40*40 steel pipe welding ,skeleton fluctuation edge use special aluminium alloy profiles special for aing line purpose ,guard with 1.5mm cold plate bending .leg match galvanized adjustable goblets. |
| Chain Plate | Using cold steel plate bending rolling into 148*1350*15 mm,totally 72 plates ,each plate equipped with 25 pcs of E27 /B22 screw-type sockets in order to aging led bulbs ,equipped with high marks off miniature circuit breaker(made by sino-foreign joint venture Foshan Factory) ,chain plates bottom side installation acoustic conduction system(copper),each side road install two conductive blocks ,each plate was two pieces of blocks . |
| Aging Capacity |
One time/one cycle can maximum aging test 1800 pcs of LED Bubls ,aging time is about 37mins-1 hour, According to work 8 hours every day ,a day can test 14400 pcs of led bulbs . |
| Eye light shield | About 7 sections of llight shield blocks arranged at the both sides ,made of brown plastic plates and aluminum alloy combination.Effective damping strong lighting reflection,better protect your eyes . |
| Condutive Rail | Up and down with all the acoustic condution chanel rail,covered with isolation rubber sheets ,it is stainless steel electric rail . |
| Consistant Temperature zone | Thermostatic system use electric infrared heated tubes ,a period of two pcs of 2000W/set of electric conductive tank .temperature control from room temperature to 70 degree centigrade with digital display on the control box . |
| On-off Dective Zone | As for a block a beat control area ,on-off switches time controlled by PLC Microcomputer . |
| Roaming Test Zone | Set any one zone for roaming area ,make electric voltages change with the time goes ,voltages fluctuation from 180V-220V-250V ,uninterrupted shift,roaming time by PLC microcomputer control. |
| The Voltage Zones | A total of 3 pieces of voltage regulators ,each one 10KW ,the effective voltage areas altogether designs 7 areas,1 piece of regulator 0-250kv adjustable ,two pieces of regulators 0-300kv adjustable . |
| Control system | Voltages ,temperature insctructions use touch screen operations,the whole system use PLC control ,all the control devices installed on or inside the eletric cabinet .Beside the operation station with a urgent stop switch ,convenient to stop the machine in time . |

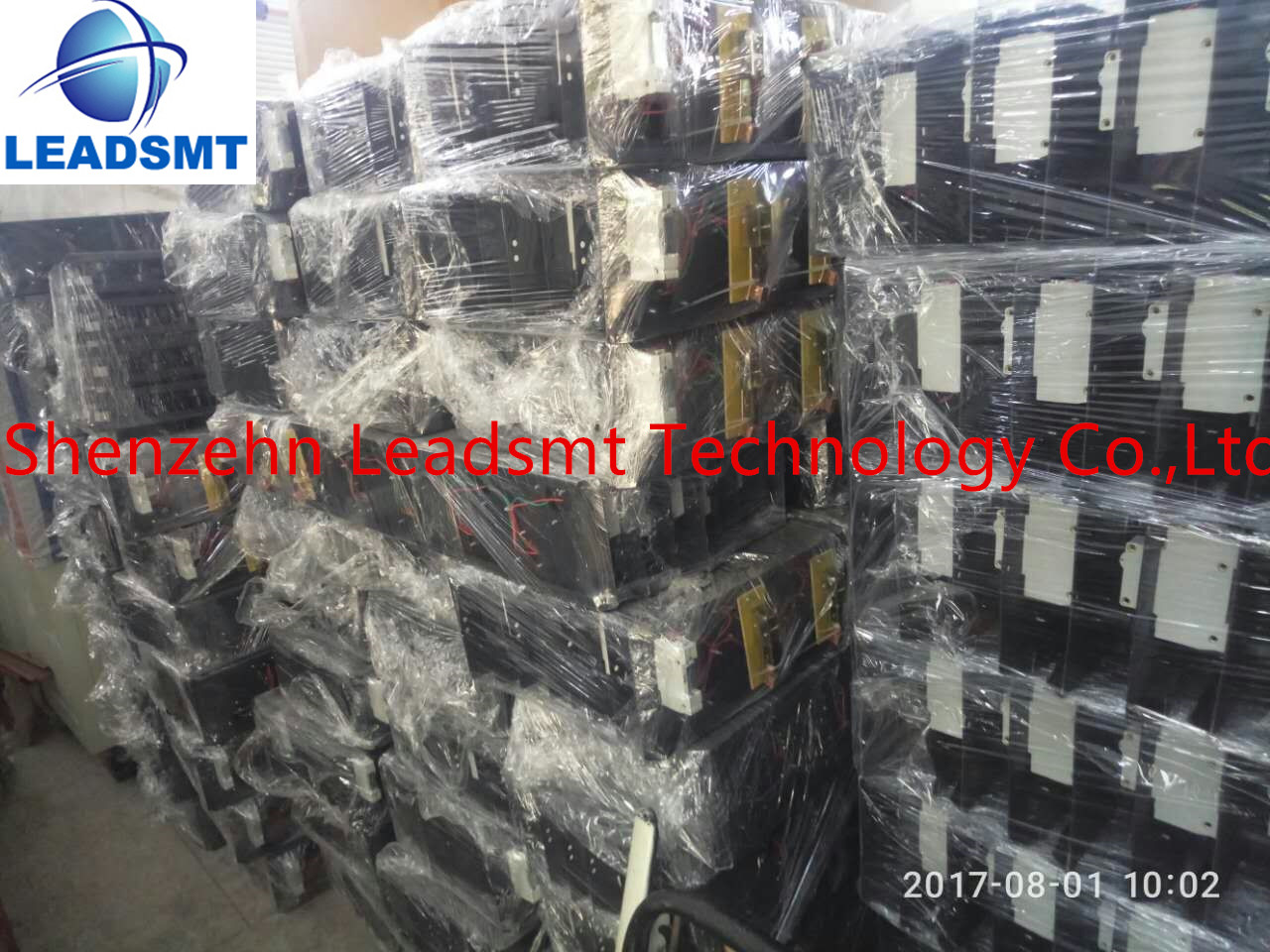

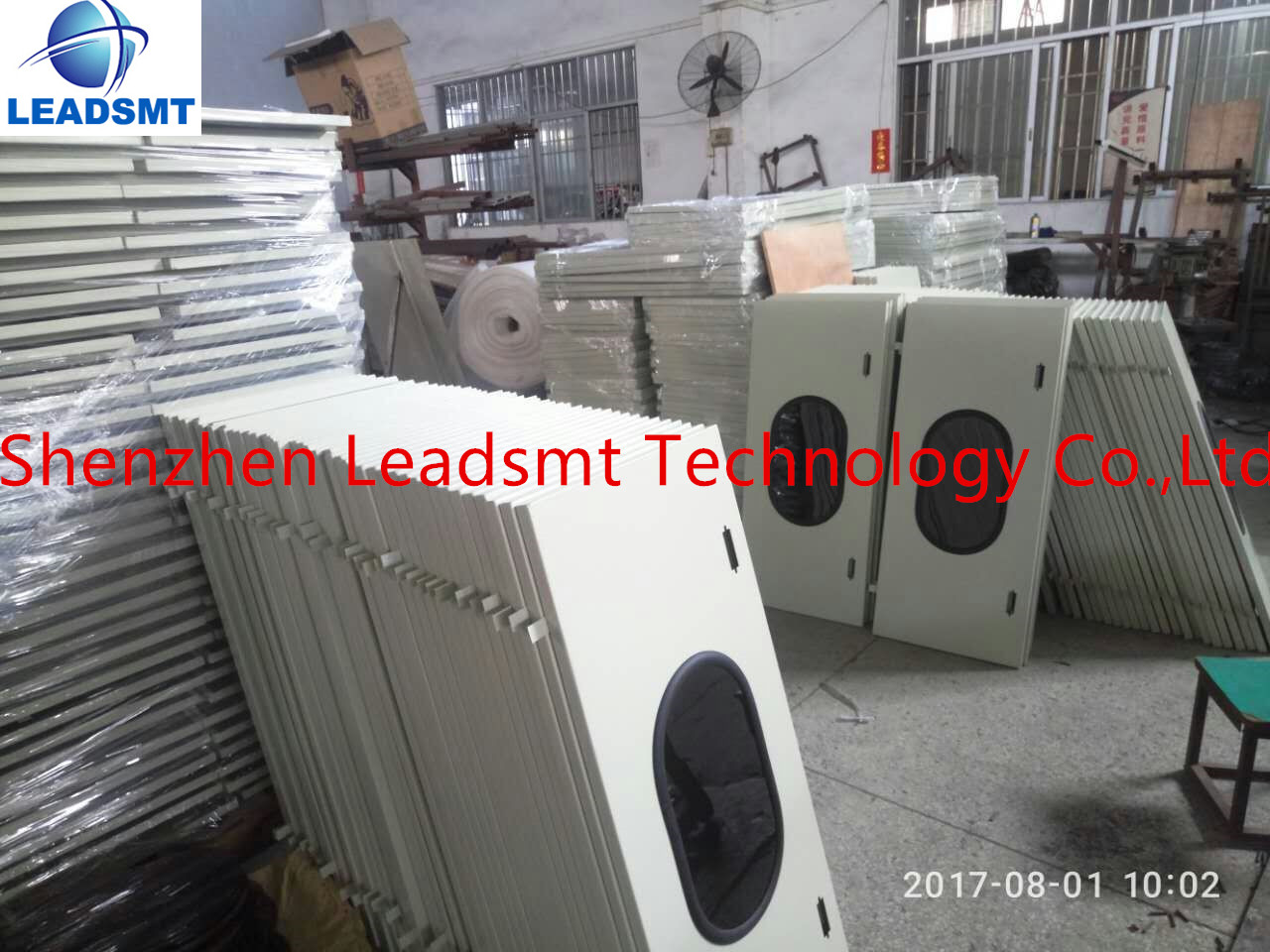

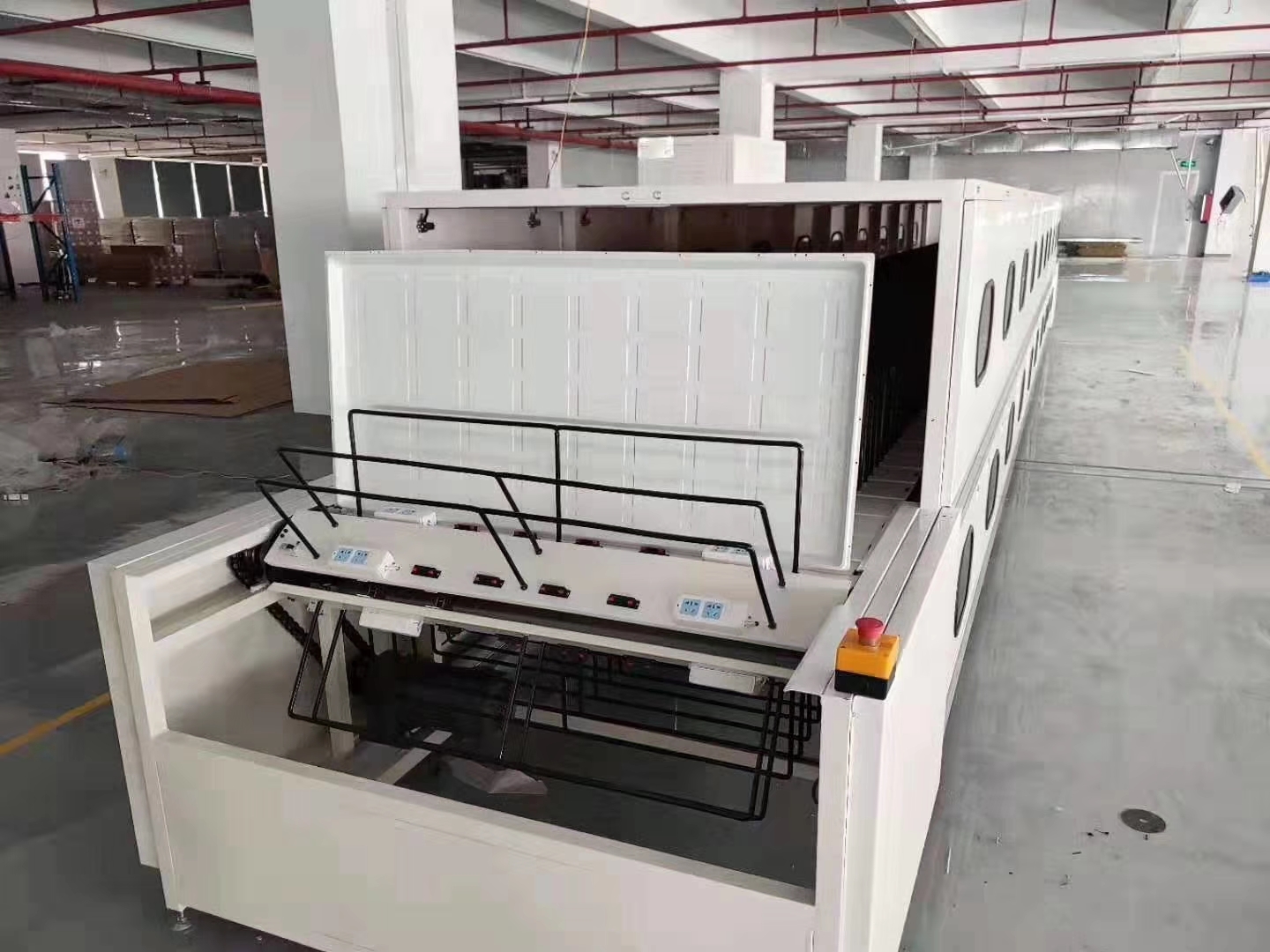

Some manufacture details

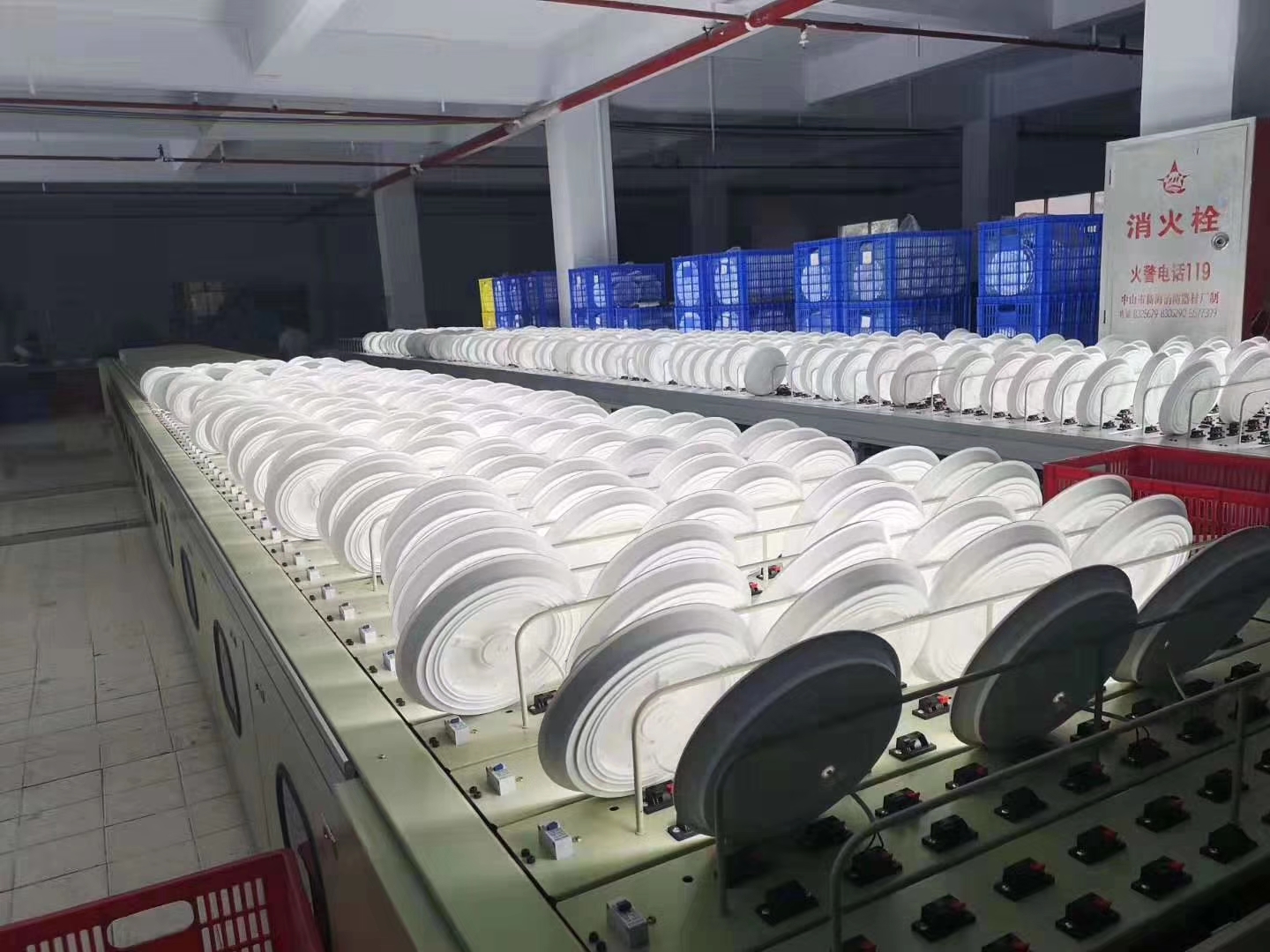

Installation in Some Overseas cutomers factory

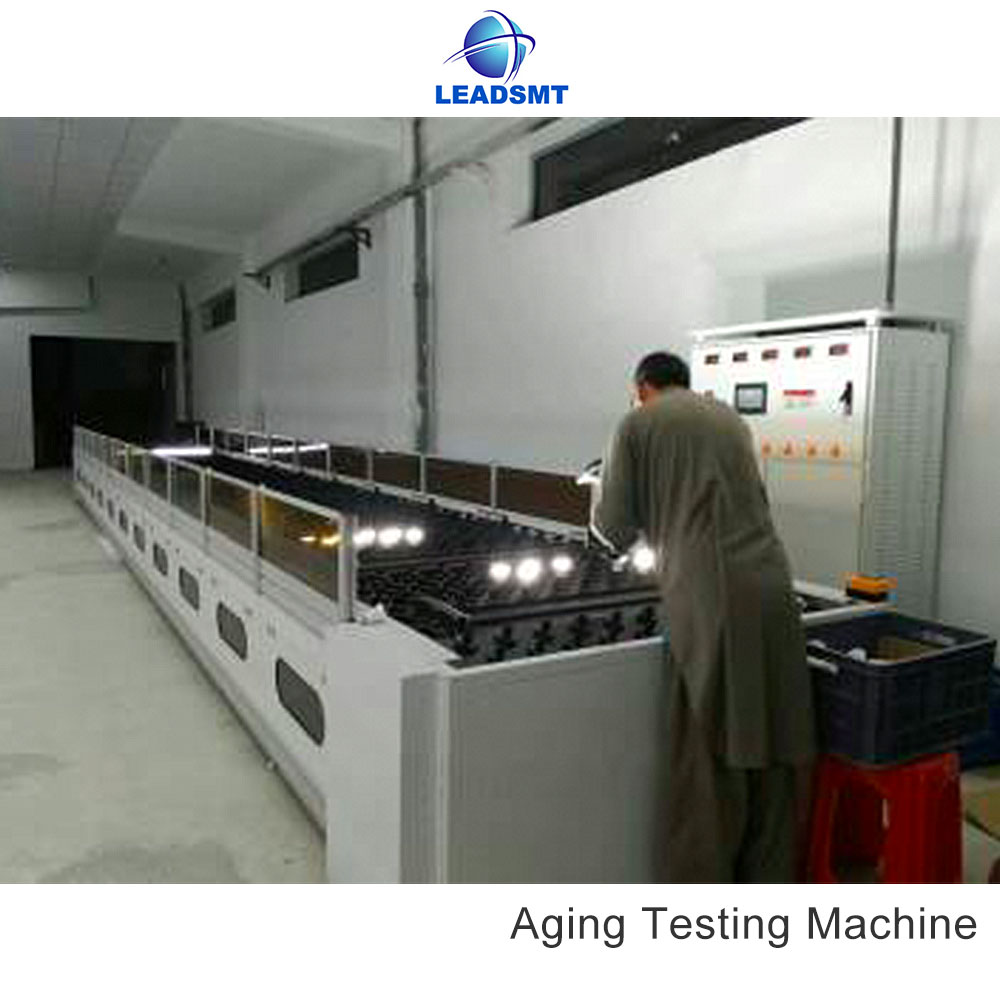

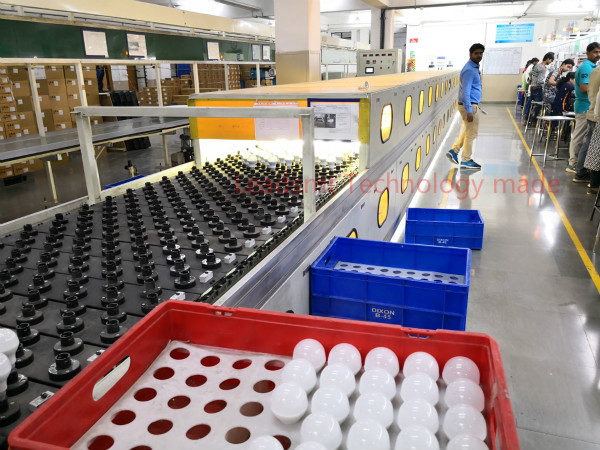

Above picture , Led Bulbs Aging Test Machine (20M Long ) in Dixon Factory Noida ,total 12 sets aging test Machines in 3 dixon factories .(installation year 2018 )

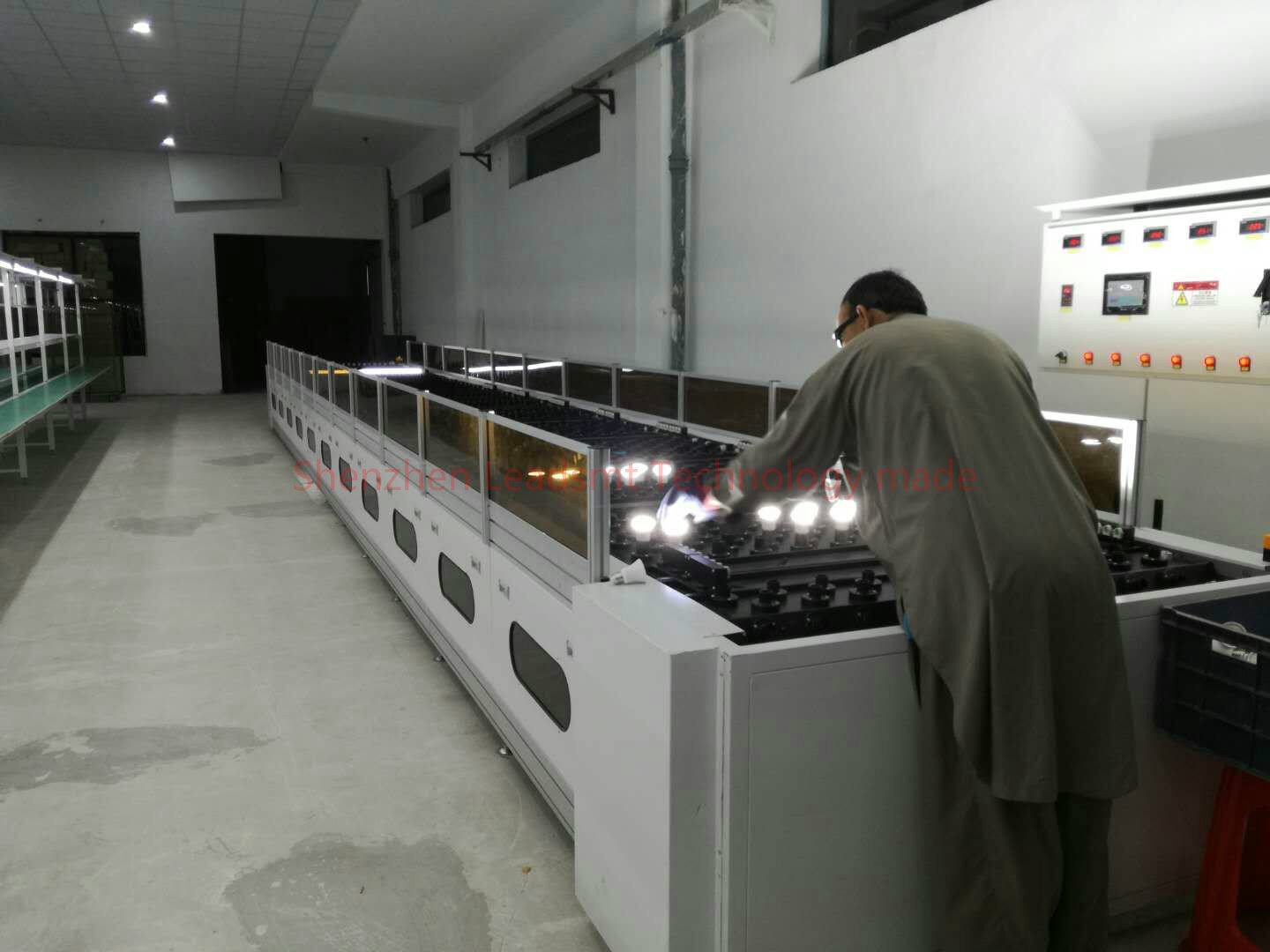

Above picture: Led bulbs and Tubes Aging Test Line in M/S KHYBER ELECTRIC LAMPS MFG, CO, LTD
PESHAWAR CANTT.,25000, KPK,PAKISTAN (Year of Installation 2017 )
Welcome to Contact for more details for Led Lights Aging Testing Machine
