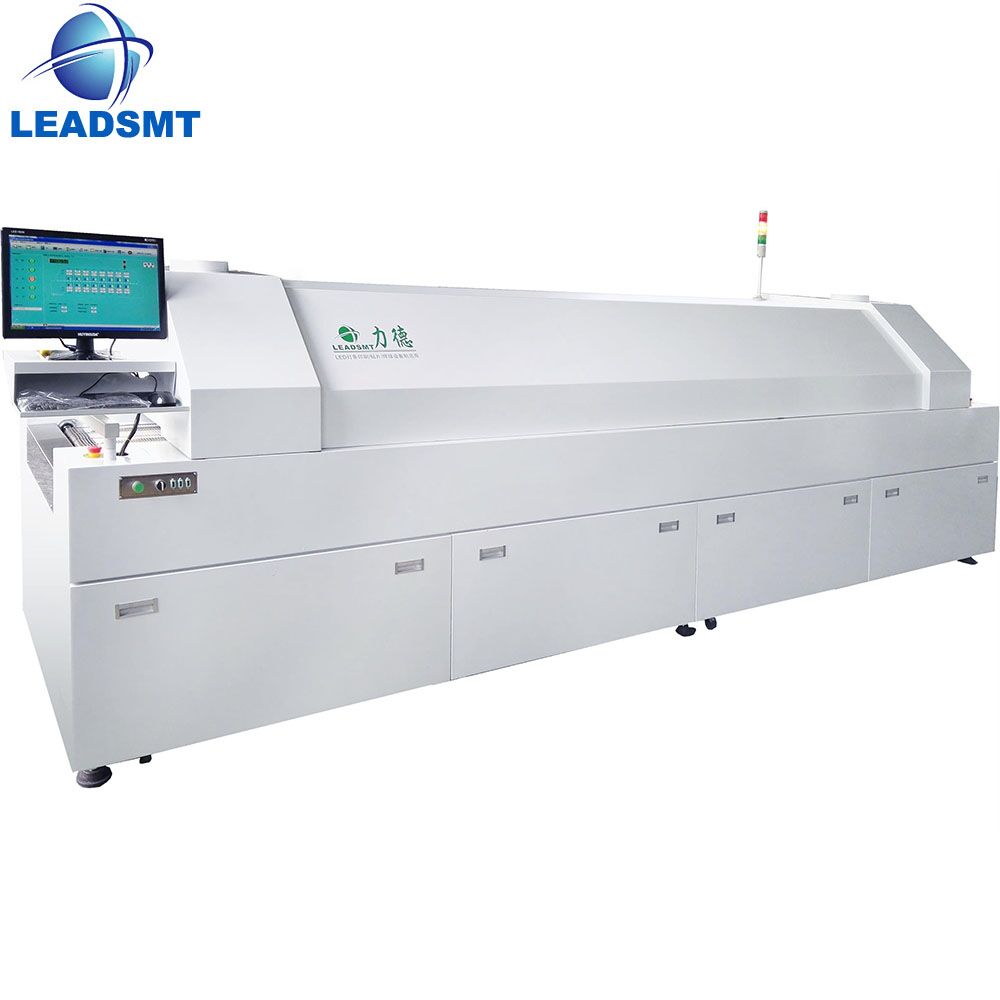

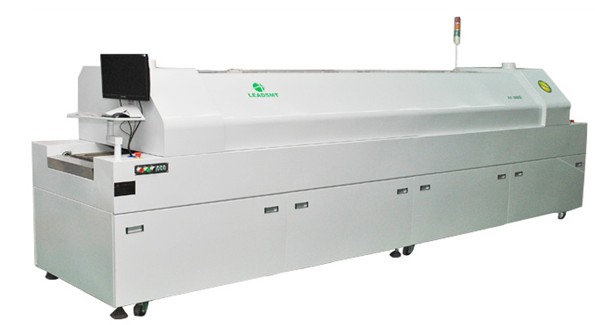

RF8810 Reflow Soldering Machine

Reflow Soldering is an important process for the smd/smt workart , the pcb will go through smt stencil Printing solder then come to smd components on the board , then inspection , then go to reflow soldering to solidate the components on the pcb board finally .

Leadsmt Technology with 20 years of reflow soldering machine manufacturing experiences , more than 32 countries enjoy the reflow soldering machines from Leadsmt .

Detail Specifications

Features

♦ All temperature area up and down heating respectively,Independent hot air circulation ,temperature control accuracy of ± 3°C .

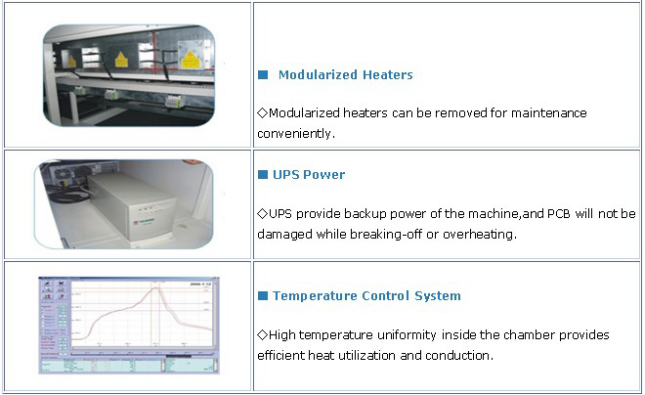

♦ Modular heating structure ,effectively prevent the temperature influence from other zones,ensure that components heated evenly ,the transverse temperature deviation < ± 2°C .

♦ Upper furnace open type using pneumatic jack-up, safe and reliable for furnace clean.

♦ Special nickel nobelium long lifetime heated wires to make hot sources,heating up fast ,from room temperature to constant temperature less than 20 minutes .

♦ Use the high speed motors imported from Taiwan ,driven straightly from thermal cycling wind ,low noise ,little vibration ,high efficiency of thermal cycle .fully enclosed structure with special temperature keeping materials coating the surface of the upper surface .

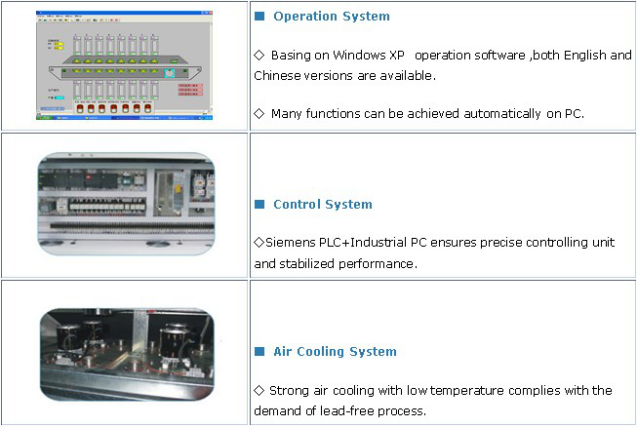

♦ Up and down adopt Original Siemens PLC industrial control , with first-class stability.

♦The time-delay switch protection function,prevent deformation of the transmission parts due to uneven cooling .

♦ Artificial intelligence software control,has the perfect online temperature testing curves and analysis,storage and printing data functions,greatly convenient for the user .

♦ With functions of power-off protection ,ensure the PCB normal come out without damage when power cut off suddenly .

♦ Special temperature acquisition module ,adopt RS-485 interface ,high precision of speed with functions of cooling junction compensation,convenient remote equipment temperature monitoring .

♦ Have regular automatic shutdown function .

♦ Imported high quality motor for high temperature resistance,good heat dissipation structure,ensure the long life and reliability ,straight league way connected to the rotor speed up to 2800rpm provide adequate air flow .

♦ Temperature control Adopt PLC control, stable precision, temperature zones with separately control separately .

♦ Scaning powder recycle device, no filter design, effectively prolong furnace cleaning cycle

♦The upper control ,can cut off the computer ,independent control ,computer mainframe adopts industrial PC ,man-machine dialogue is convenient ,the interface is clear ,image intuitive,can switch at any time in both Chinese and English ,each parameter is set to realize accurate and fast numerical value input .
