Online smt pick and place machine for 1.2m smd led pcb manufacture
1.2M smt pick and place machine

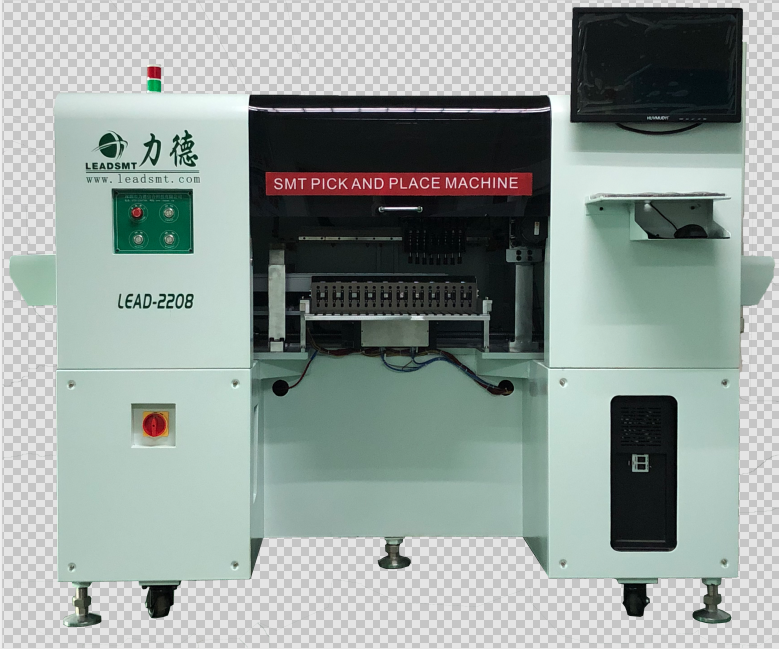

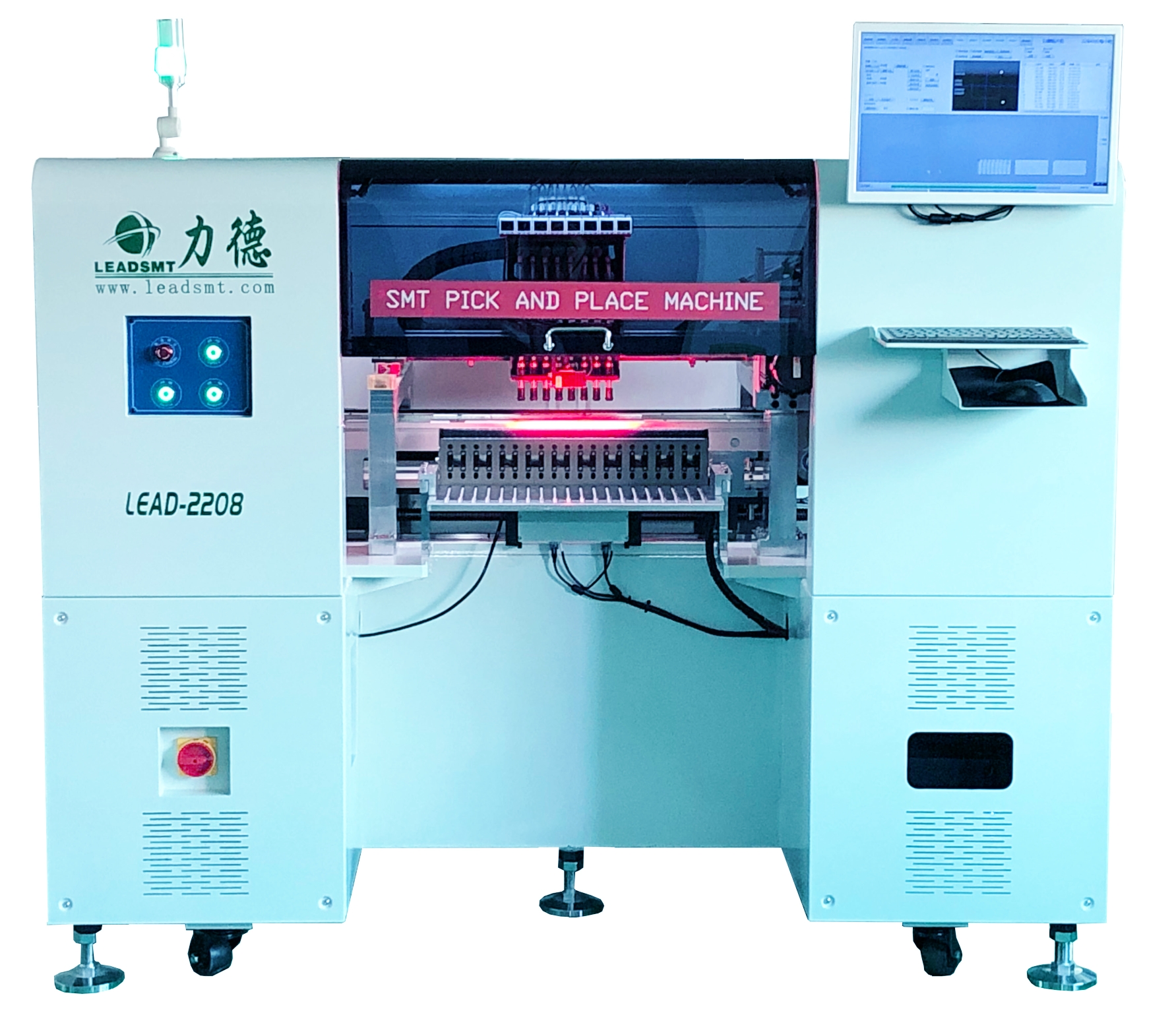

LEAD-2208 online automatic smt pick and place machine developed by Leadsmt in 2015 , Already widely application in China and put into production led smd led pcb boards by customers from USA , Russia, India , Pakistan ,Iran ,Vietnam ,Spain ,Turkey and Egypt .
Can make smd led pcb boards for led bulbs, Led Flood Lights , Led Panel Lights , Led Strip Lights , Led Tube Lights,Led Corn Lights , Led street Lights , Led Canopy Lights ,
Led vegetible lights ,Led Linear Lights etc .

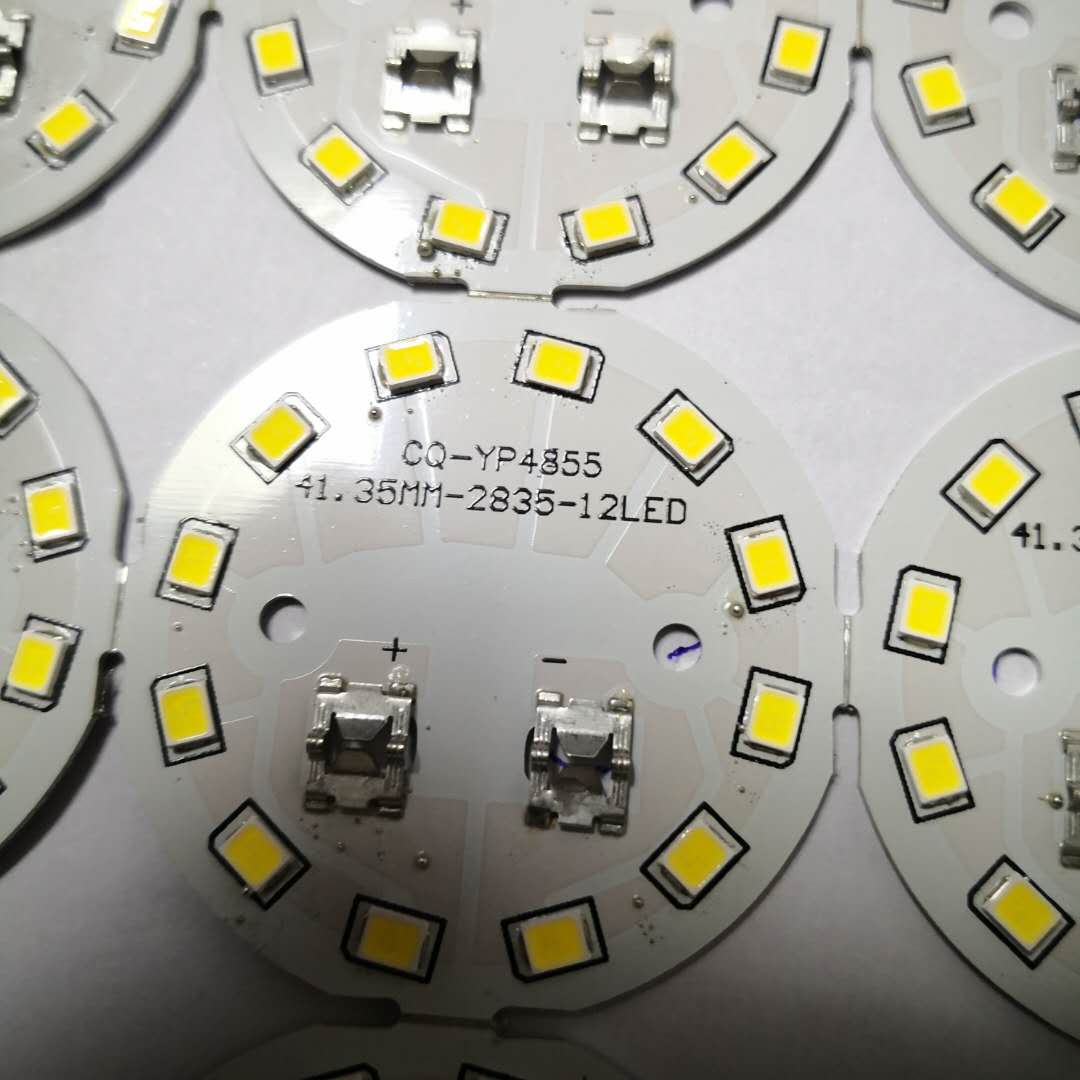

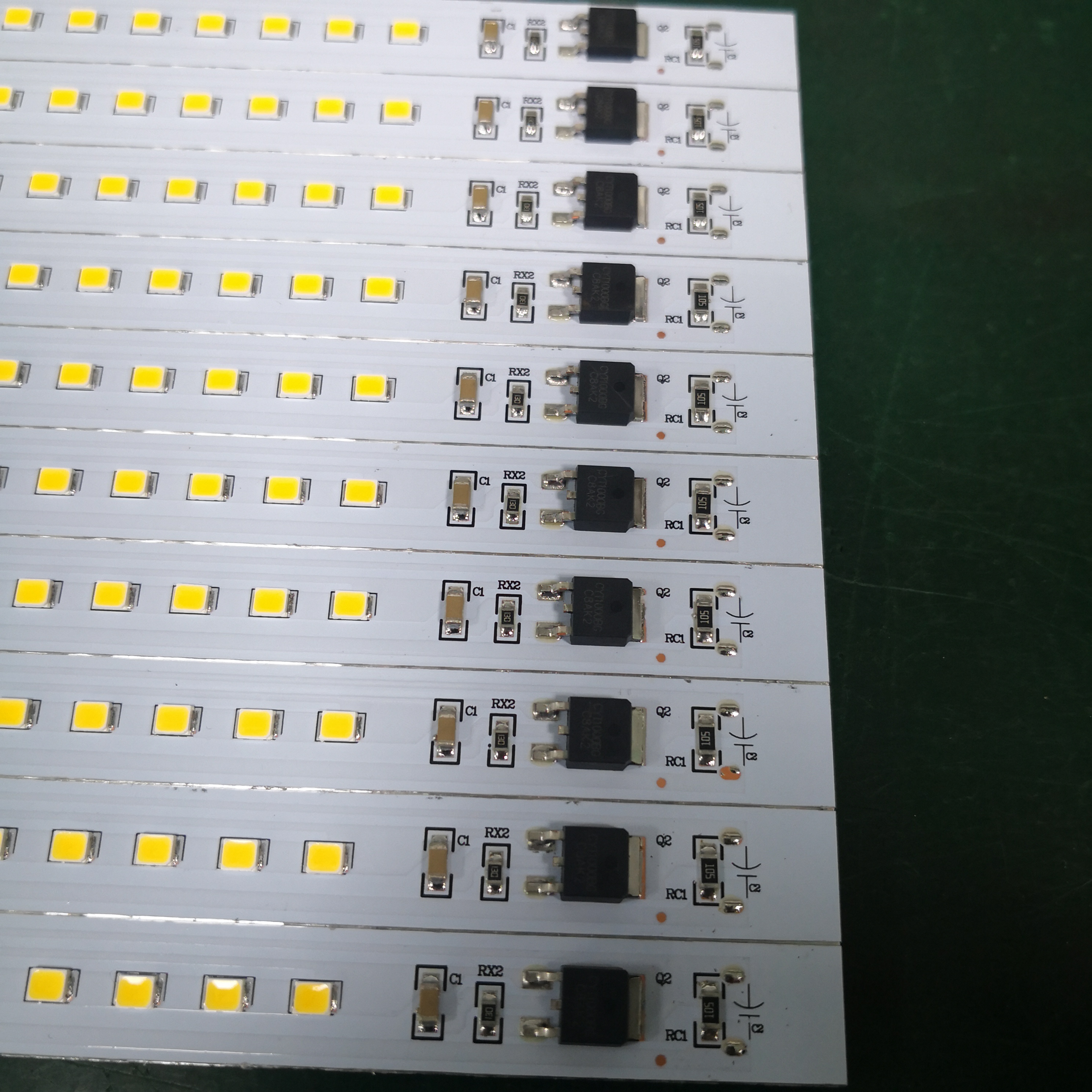

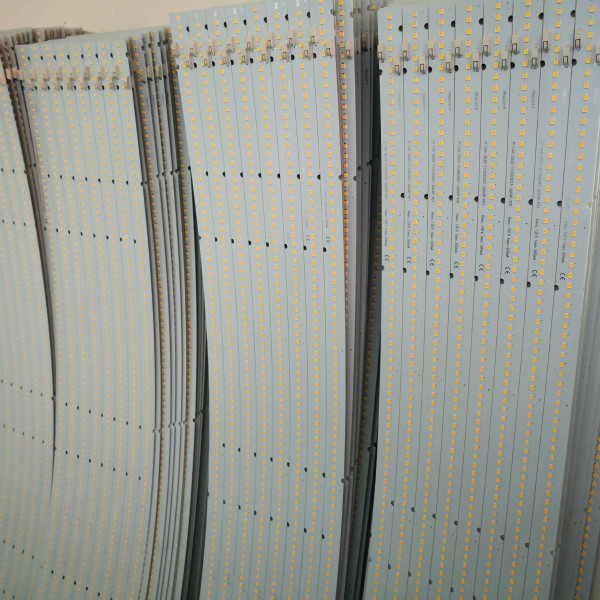

Mounting Effect as Below :

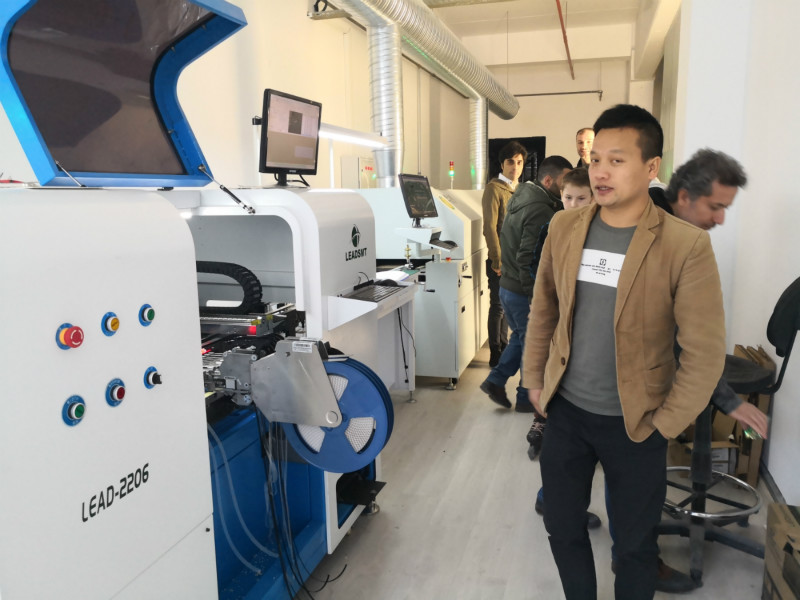

LEIF Industrial in Michigen ,USA Training Complete Line with LEAD-2206 at Leadsmt Factory in 2015

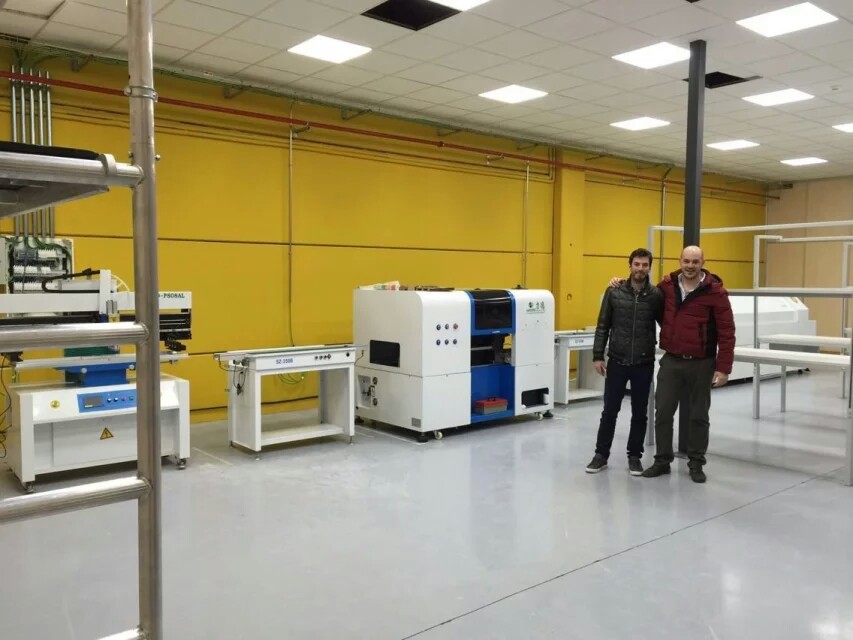

At SysLed factory Gatafe 28906 Madrid,Spain in 2016(added new model line in 2020 Novemeber)

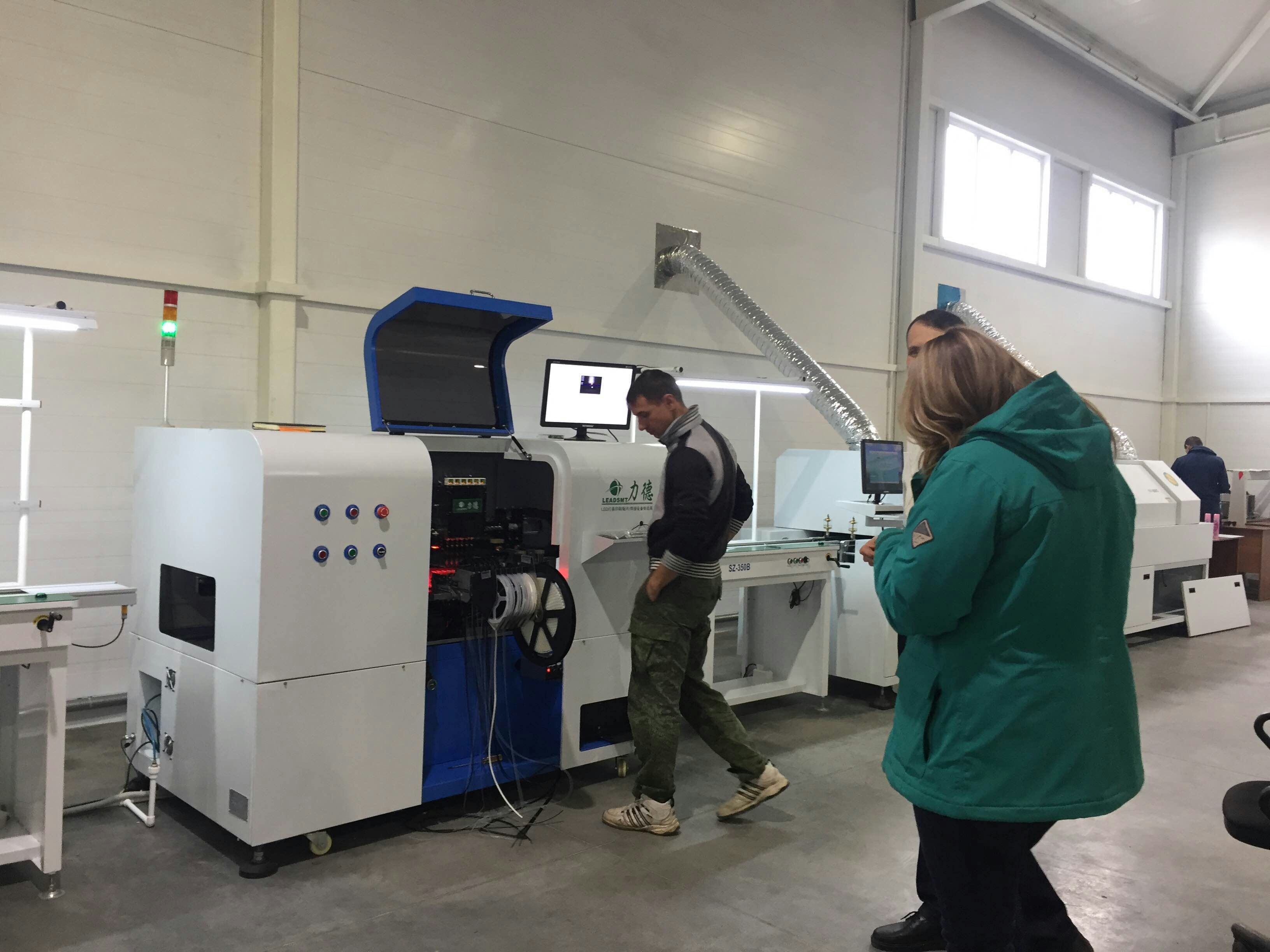

At OOO "TD Fereks" factory training in Russia Federation in 2017

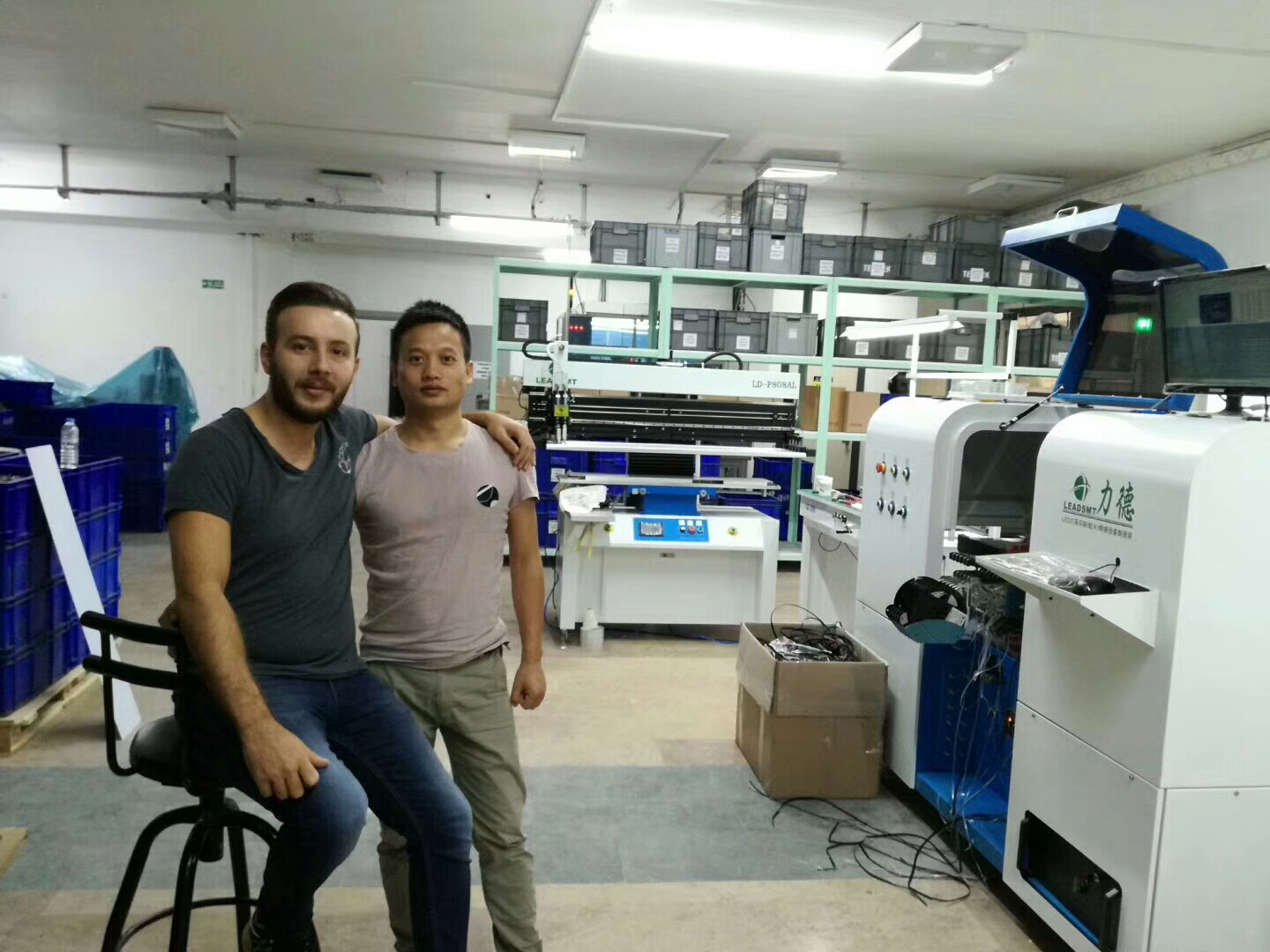

Training at Teletek factory in Istanbul ,Turkey 2017

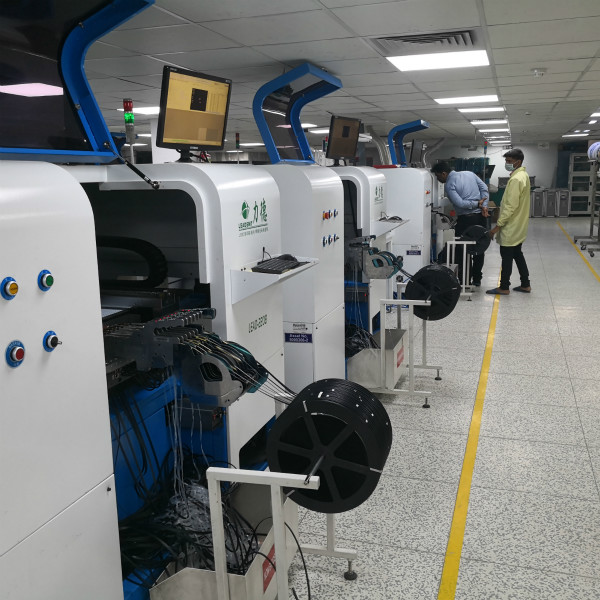

20 sets of LEAD-2208 SMT Machine at Dixon Factory Phrase II,Noida,India in 2018
Training at Vekta Factory ,Istanbul ,Turkey 2019
Technical Specifications
| Machine Model No. | LEAD-2208 |
| Working Mode | online & Automatic |
| Mouting Nozzle Heads | 8 PCS |
| Nozzle Head Structure | Spline Crash proof structure,allow new operator make a mistake sometimes |
| Stable Practical Speed | 40000 CPH |
| Max Speed | 65000 CPH |
| Position Accuracy | 0.03mm, with 5 million Pixels position sony camera |
| Placement Accuracy | 0.05mm, 8 PCS of 3 Million CCD Sony Cameras for each nozzle component pick up inspection |
| Max Moving Range | X Axis 1220mm, Y Axis 430mm |
| Max Z axis Range | 15mm |
| Position and Programming Method |
1.Keyboard and mouse input 2.Vision Mark Points recognization 3.PCB Gerber file input |
| Mounting components type | Including and above 0402 smd compoents ,such as resistors ,ic ,led and capacitors |
| Max PCB Sizes | (L) 1200*(W)320MM , in one cycle |
| No.of feeder Positions | 20 pcs of electric feeder positions ,viberation tray feeder optional |
| Feeder Sizes acceptable | 8mm ,12mm,16mm,24mm,32mm electric feeders |
| Operation software system | Window 7 |
| Air Pressure detective system | Negative air pressure detective system with digital display |
| PCB Width adjustment | By electric Buttons Control |
| Vacuum Aceleration and system stability | Equipped with 4 sets of vacuum pumps with air blow aceleration system and stable air pressure for components pick up . |
| Weight | Approx 1000 kgs |
| Power Supply | AC 220V ,1 Phrase , 50/60Hz ,1.8KW |
| Dimensions | (L)181CM *(W)118CM*(H)162CM |
Welcome to contact for more details
