E27 Led Bulb End Cap Crimping and Spike Pin Machine
Machines for led bulbs Assembly

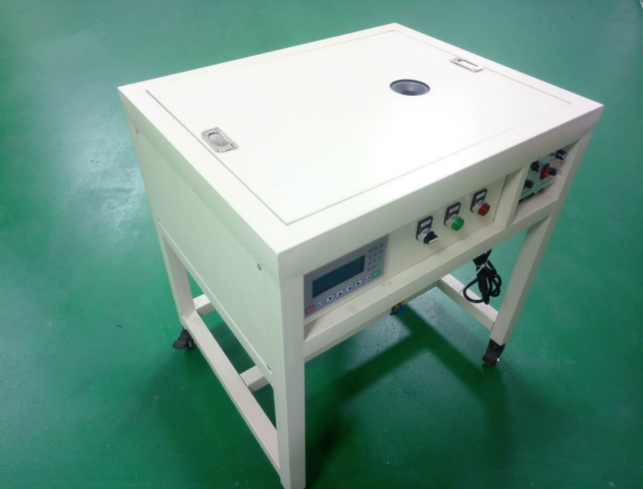

E27 Led Bulb Lamp Cap Crimping and Spiking Machine
This Machine is to Crimping the joint betweeen the end cap and Housing Plastic base then Spike the pin into the end cap while the end cap is beening hold up .After spike the pin into end cap completed ,the bulb will be on if the bulb is in good condition (testing function ) , the machine also with automatic counting Function .
Detail Specifications as Following :
| Machine Functions | Crimping ,Spiking Pin ,Testing & Counting |
| End Cap Model | E27 OR E14 (E27 and E14 can not Compatible ) |
| Crimping Needl e No. | E27 with 12 needles and E14 with 8 Needles |
| Pins Materials | Nickel Steel Pins |
| Pins Fixing Device | Made with Pins Sample |
| Pins Feeding System | By Vibration Tray |
| Control System | Touch Screen and PLC Control |
| Production Speed | 2000-3000 PCS Per Hour |
| Machine Structure |
Machine body made with 60*40mm steel by welding, Supports with 40*40mm steel,Cover panel with 1.5mm steel plate |
| Power Supply | AC 220V ,50/60Hz, 90W |
| Compressed Air Pressure |
0.6MPa=6kgf/cm2 |
| Machine Net Weight | Approx 95 KGS |
| Machine Sizes |
730*590*780mm |
| Spare Parts |
1 sets of Tool ,12 pcs of Needles |
| Warranty | 1 Years |

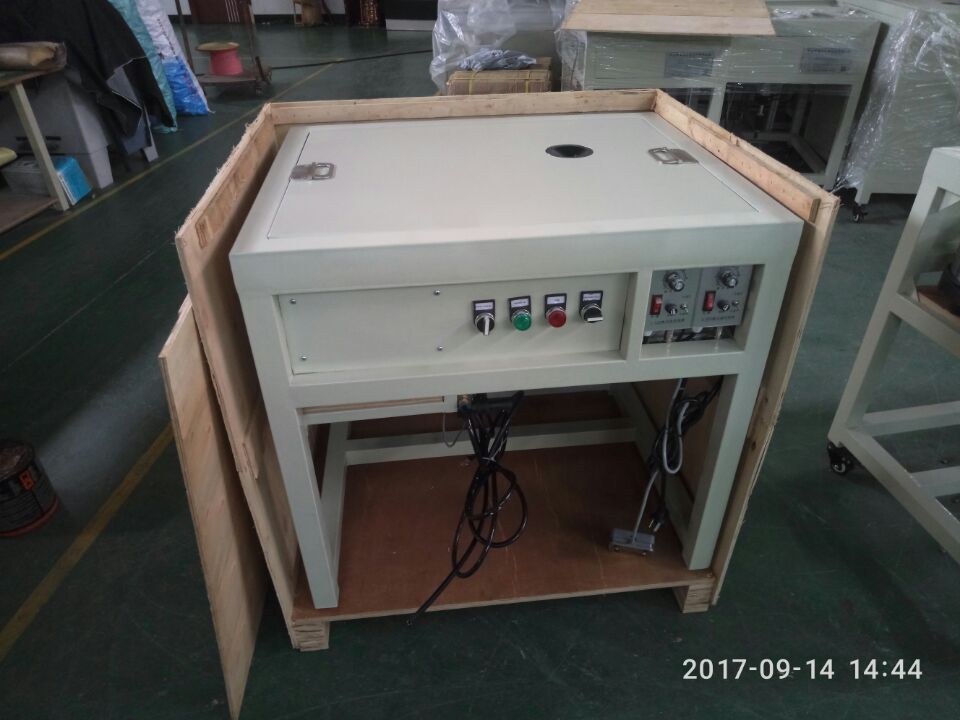

Below is Packing Information
The wheels will be removed and packing inside the box in order fix the machine for better packing .
Gross Weight : 102.5 KGS
Packing Plywood Box Sizes: (L)80*(W)66*(H)83CM
Volume: 0.44 CBM
