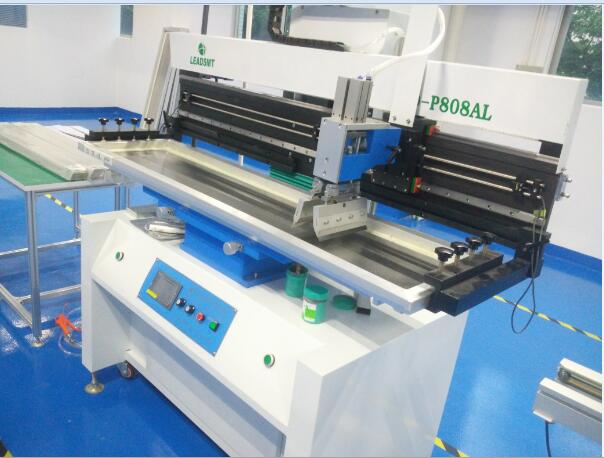

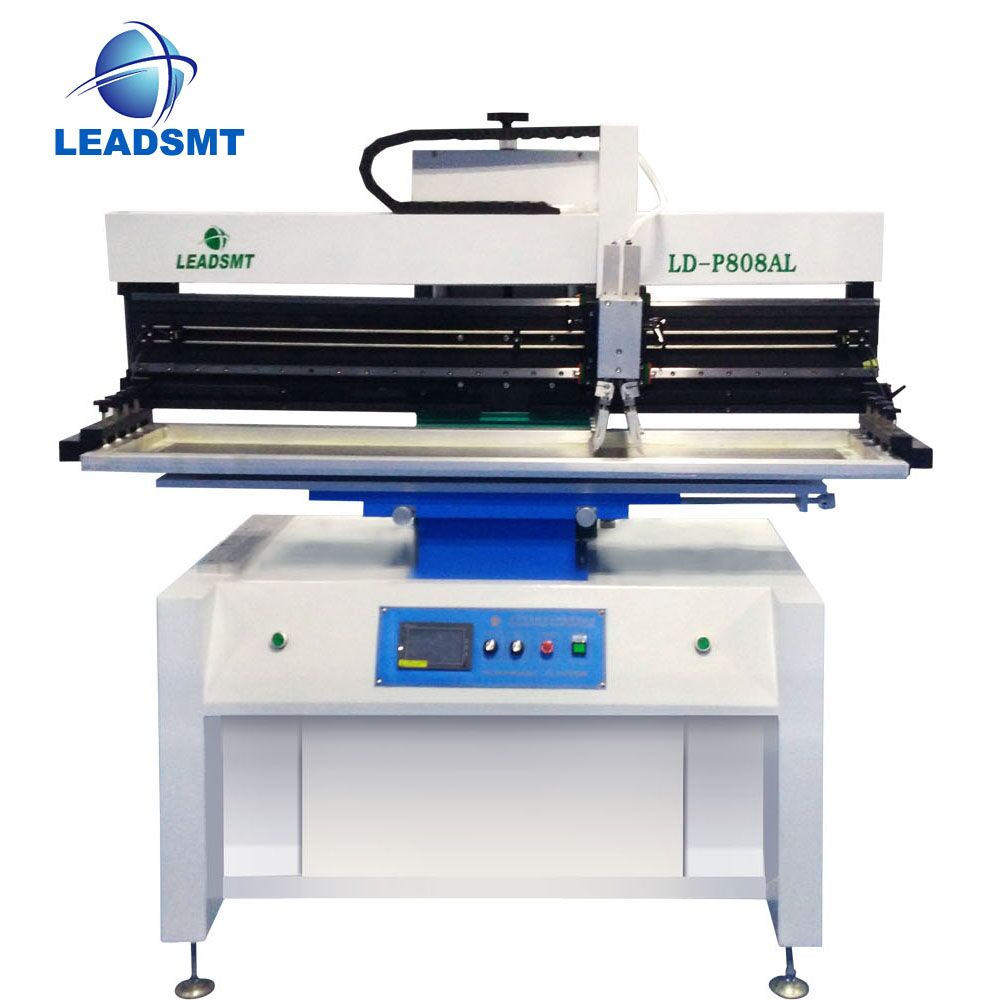

LD-P808AL Leadsmt smd Stencil Printing Machine

Leadsmt with up to 1.5M ,1.2M ,1.0m ,0.8m,0.6m Led Smd PCB Board Stencil Printing Machine , more than 12 years true manufacturing experiences .

Our LD-P808AL Series smt stencil printing machines are widely use in 32 different countries .

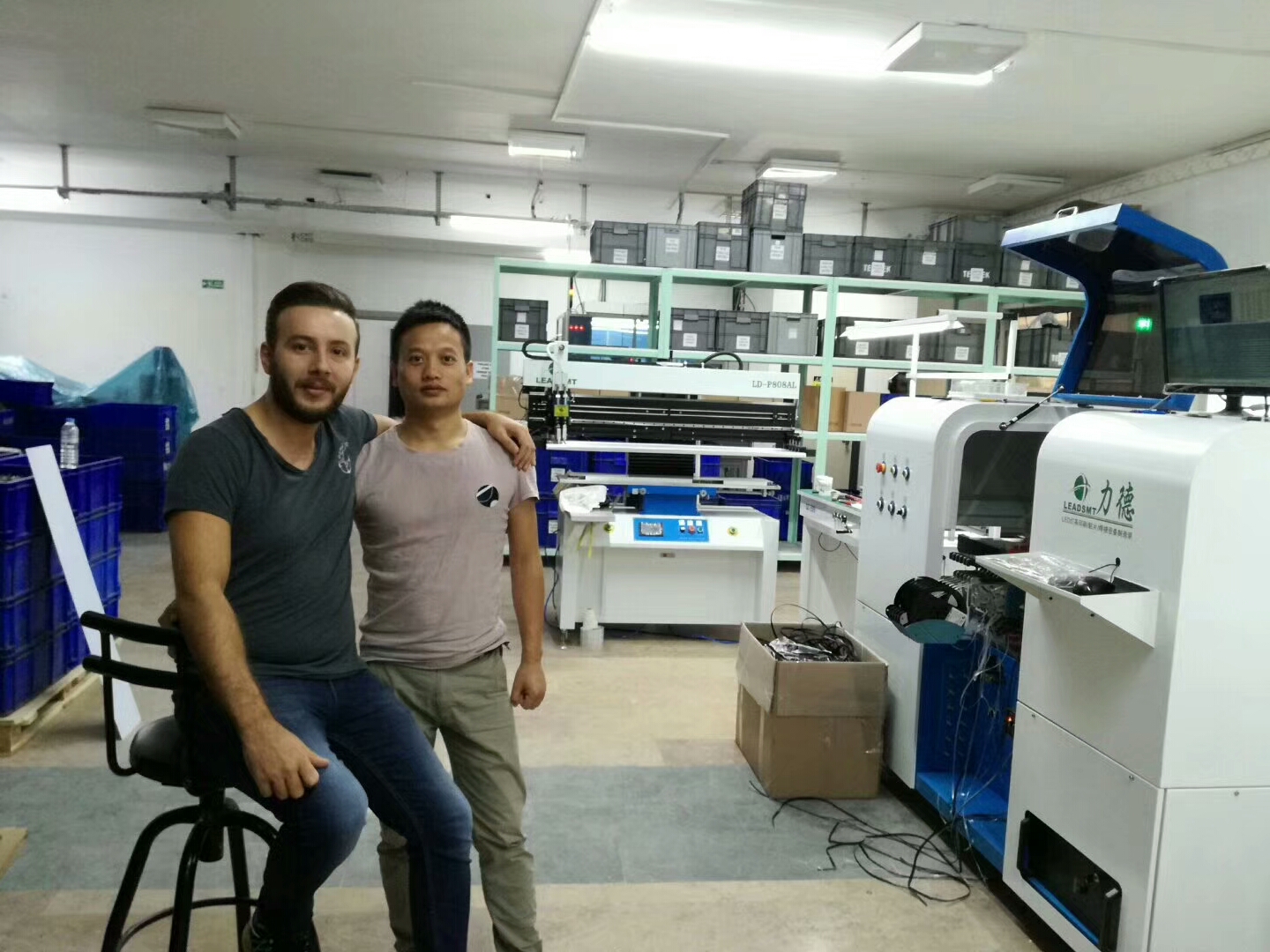

Completed smd machines line in Turkey 2017,September

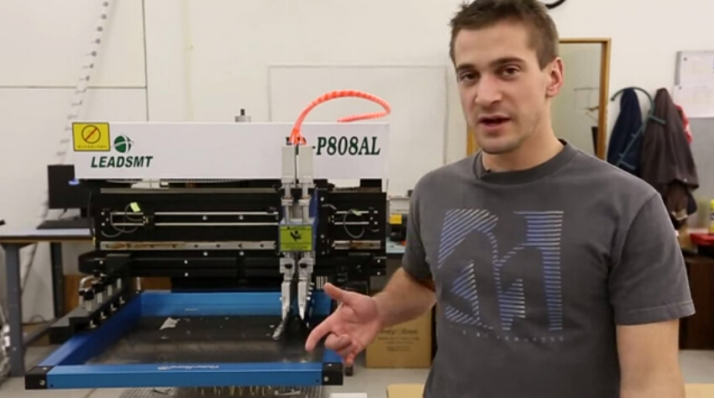

LD-P808AL Smt stencil Printing Machine in USA ,January,2013

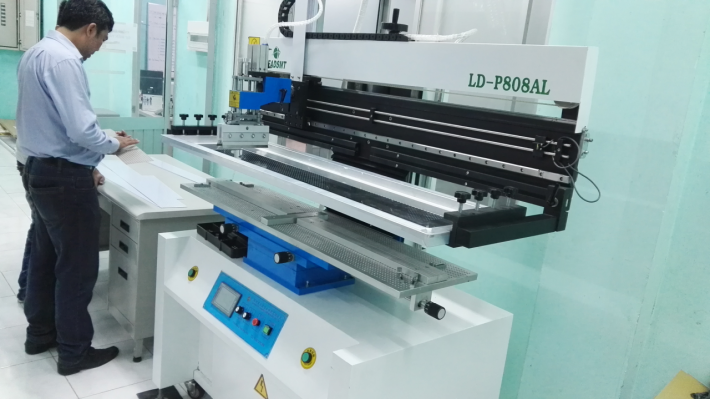

1.2m pcb stencil Printing Machine in Viet Nam ,October ,2016

Details Specifications of the Machine

Features:

1. Use the import precision THK guide rail and famous brand Tai Da frequency motor to drive the scraper, the printing precision is high.

2. The printing scraper can rotate 45 degrees to fixed upwards, in order to facilitate printing halftone and scraper cleaning and replacement.

3. The blade can adjust the upwards and backwards, to choose the appropriate printing position.

4. The combined printing plate has a fixed groove and Pin, easy installation and adjustment, suitable for smt printing .

5.Screw adjust buttons at X,Y,Z easy for the correct the solder positions to meet the stencil holes at high precise rate.

7. Can be set the programming to print one-way or two-ways, or more than two times printing.

8. Has automatic counting function, convenient production statistics.

9.The scraper Angle is adjustable when you needed .

10. Use AE unique program design, printing scraper base convenient adjustment.

11.Printing machine speed display on Touch Screen, can be adjusted .English program and language.

Questions & Answers:

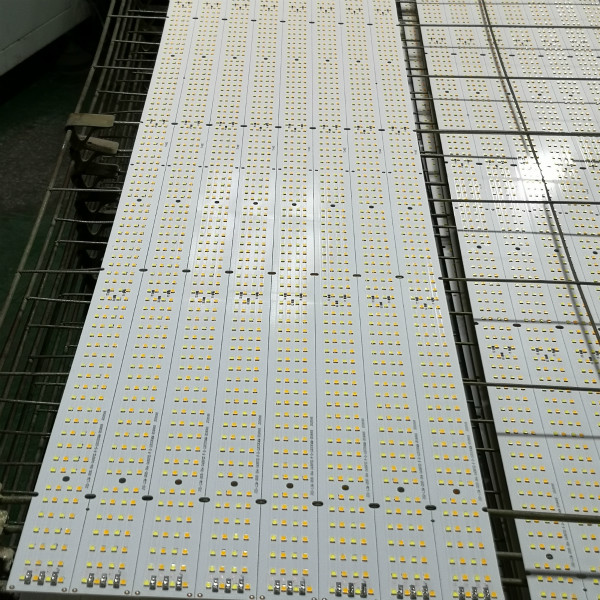

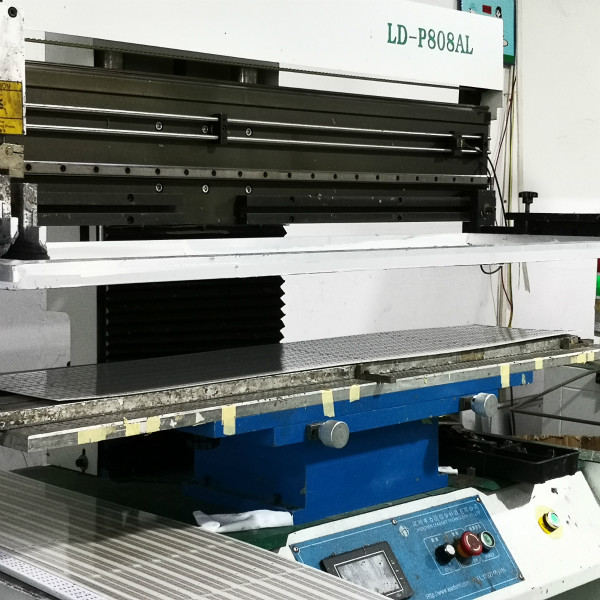

Q1.Can this machine work for 1.2M smd aluminum pcb ?

A1.Yes, it can for smd aluminum pcb up to 1.2M long and also for MC PCB and FR4 pcb too,if made by order can work for 1.5M .

Q2.Does this machine use air pressure supply ?

A2.Yes,this machines is Pneumatic and electric power drive ,need air pressure 0.6MPa,6kgf/cm2 .

Q3.Can this machine work for small pcb ?

A3. Of course ,please re-check the last picture ,our customer in Iran use this stencil printing machine for telecom ADSL pcb .

Q4.What is the best way to ship this machine ?

A4.The best way for shipping of this machine is by sea ,we not suggest customer ship it by air even it is urgent .Because its center of gravity is high ,when on the aircraft ,under the strong vibration ,the machine will fall down and broken .

Its Packing Sizes :Packing Sizes:184*87*181(cm)=2.9CBM, About 330kgs , with CE Certificates for Europeans custom clear.
