Smd Pick And Place Machine for driverless smd led pcb
smd pick and place machine
LD-650V is a general type smd pick and place machine for all kinds of electronics smd pcb process . For led Lighting Industries , i can perfectly work for DOB Smd led boards , with ic ,resistors ,Vertical Capacitors and leds on smd process on the pcb boards .In China MLS Group already order more than 126 sets and now still continually order in the next 3 months.Welcome overseas Led Industries come to cooperation .

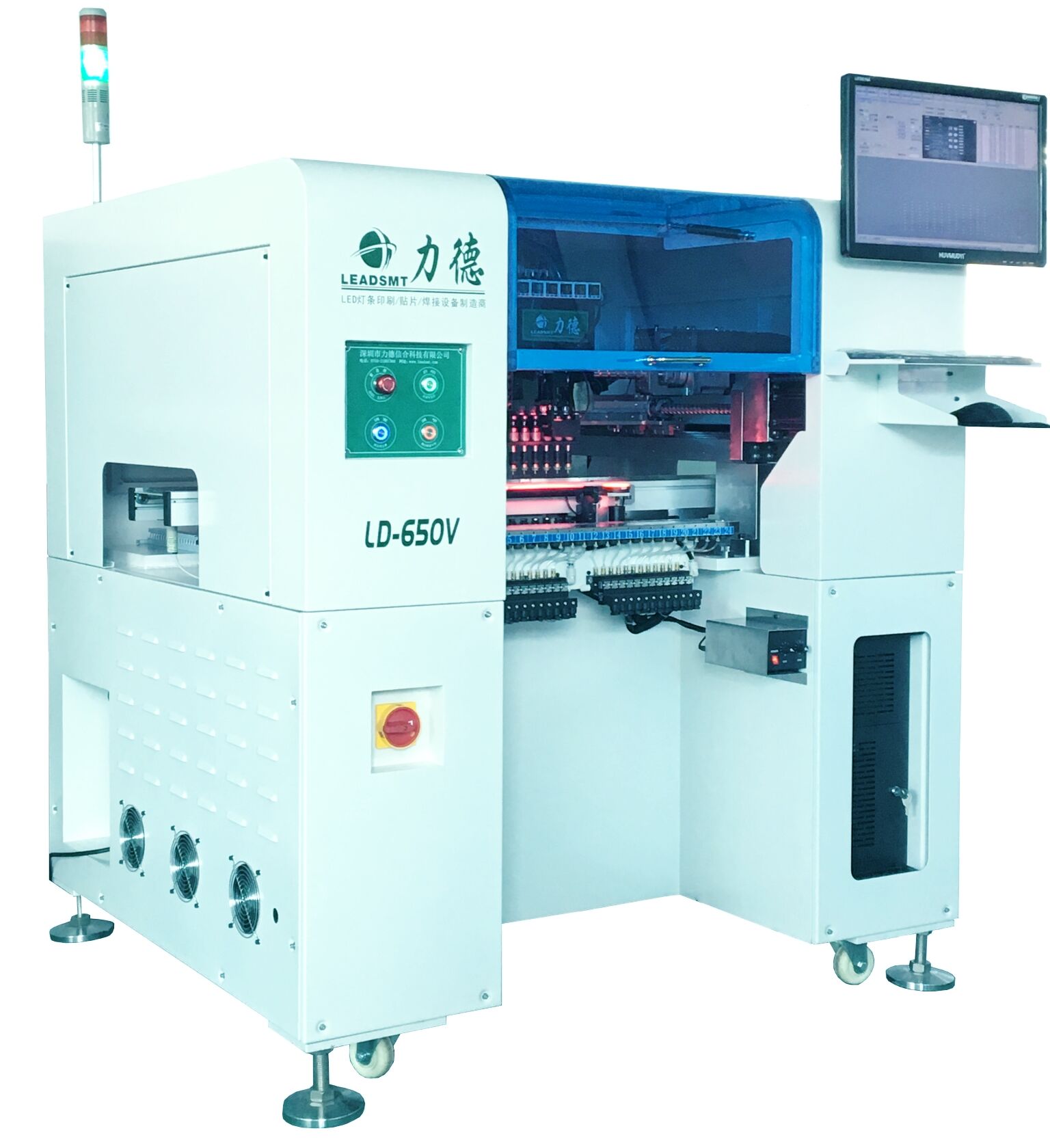

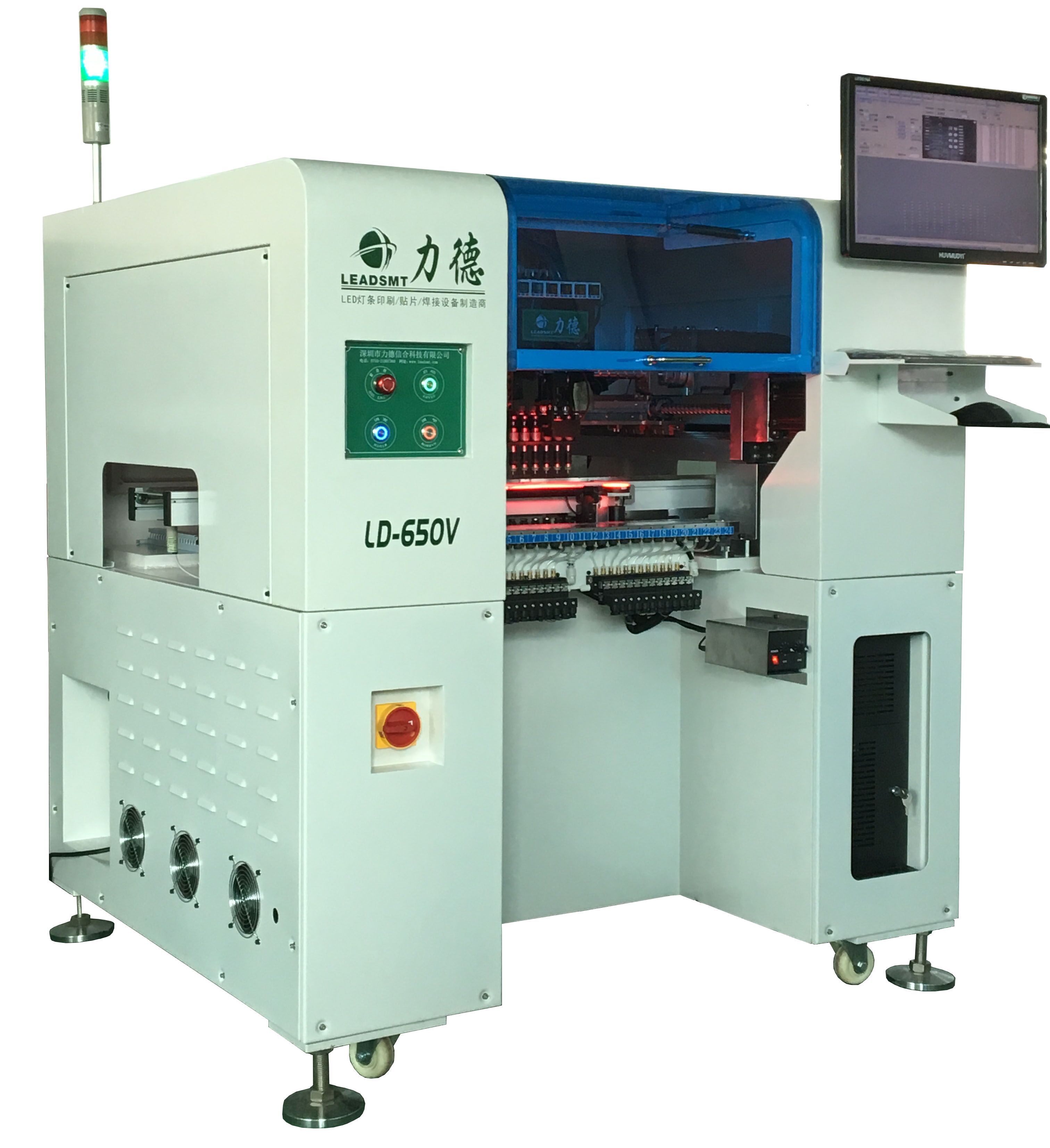

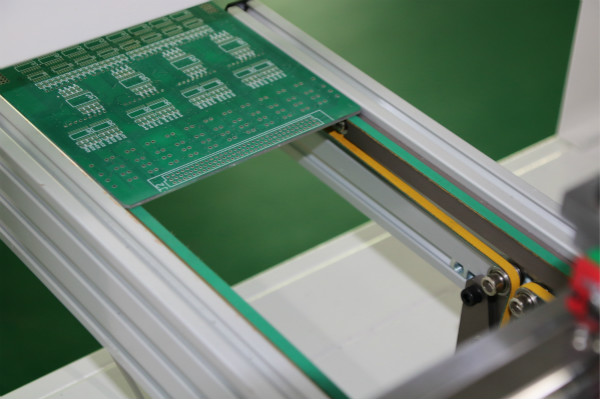

Main Pictures

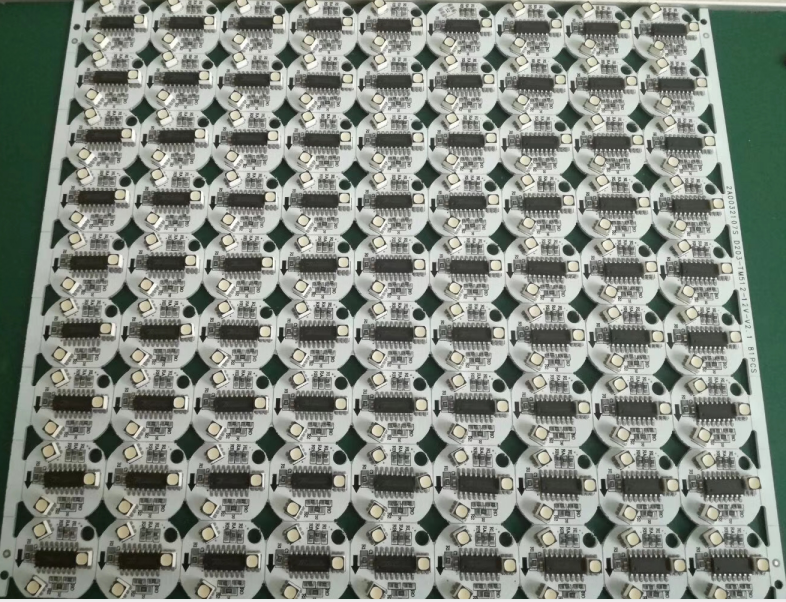

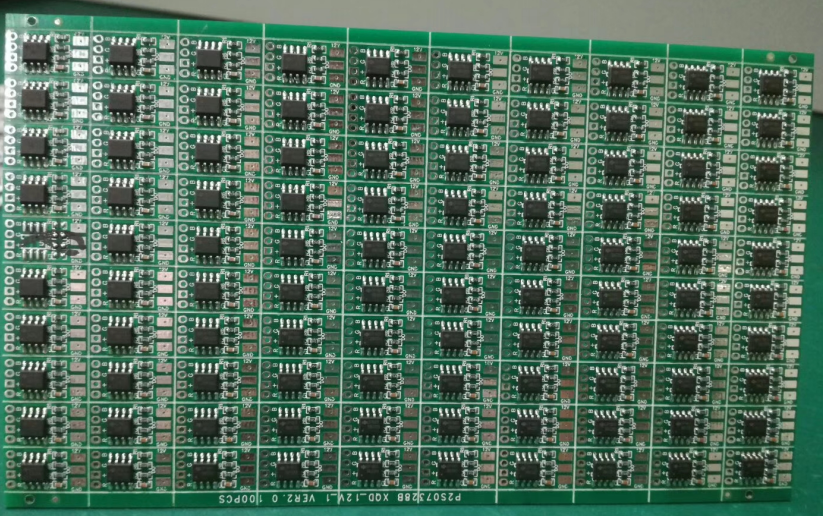

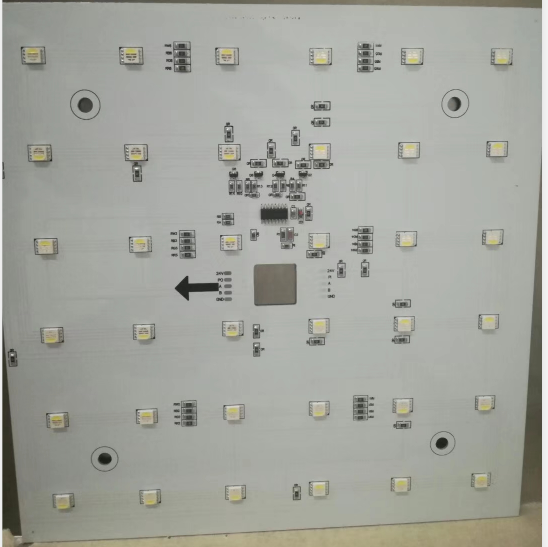

Below is Practical Effective work from Customer factories :
Detail Specifications :
| Machine Model No. | LD-650 Smd Pick And Place Machine |
| Practical Speed | 20000-25000 CPH |
| No. of Placement Head | 6 PCS |
| Calibration System |
1 PCS of Position Camera ,6 PCS of Visual Cameras for each nozzle check after pick up components , 1 PCS of High Precision Panasonic Camera for big sizes components extra calibration ,can work for ic sizes up to 15*15cm . |
| No.of Cameras | 7 SETS with 3 Lac Pixels |
| Vision SYSTEM |
Gray Scale & Pattern Matching & Edge Detection |
| Placement Accuracy |
±0.05mm |
| PCB Board Sizes: |
From 50*50mm to 500×350mm |
| PCB Types |
FR4 PCB,Aluminum pcb ,MC PCB,Flexible PCB etc . |
| PCB Clamp Method |
Edge clamping and Z direction press fix |
| Max Move Range |
X axis: 500mm，Y axis:530mm |
| Work Mode |
Automatic (Online) ,one way transportation |
| Position Method |
Visual Position + Mark Point Scan |
| Application Components |
All kinds o f resistors, smd capacitors ,IC,QFP,SOP,SOT,CSP and LED |
| Components Range | From 0402 types of Components to 15*15cm IC |
| Programming Method |
Computer Graphical Program +Coordinates File Input |
| Feeder Type |
8mm，12mm，16mm and 24mm ，32mm YAMAHA Pneumatic Feeders |
| No.of Feeder Stations |
24 PCS Standard feeder stations |
| Operation System | Windows 7 |
| Negative System |
Vacuum Pump system |
| Power Supply |
1 Phrase ,220V,50Hz，1.5KW |
| Weight |
960 KGS |
| Dimensions |
1570MM(L)*1170MM(W)*1420MM(H) |

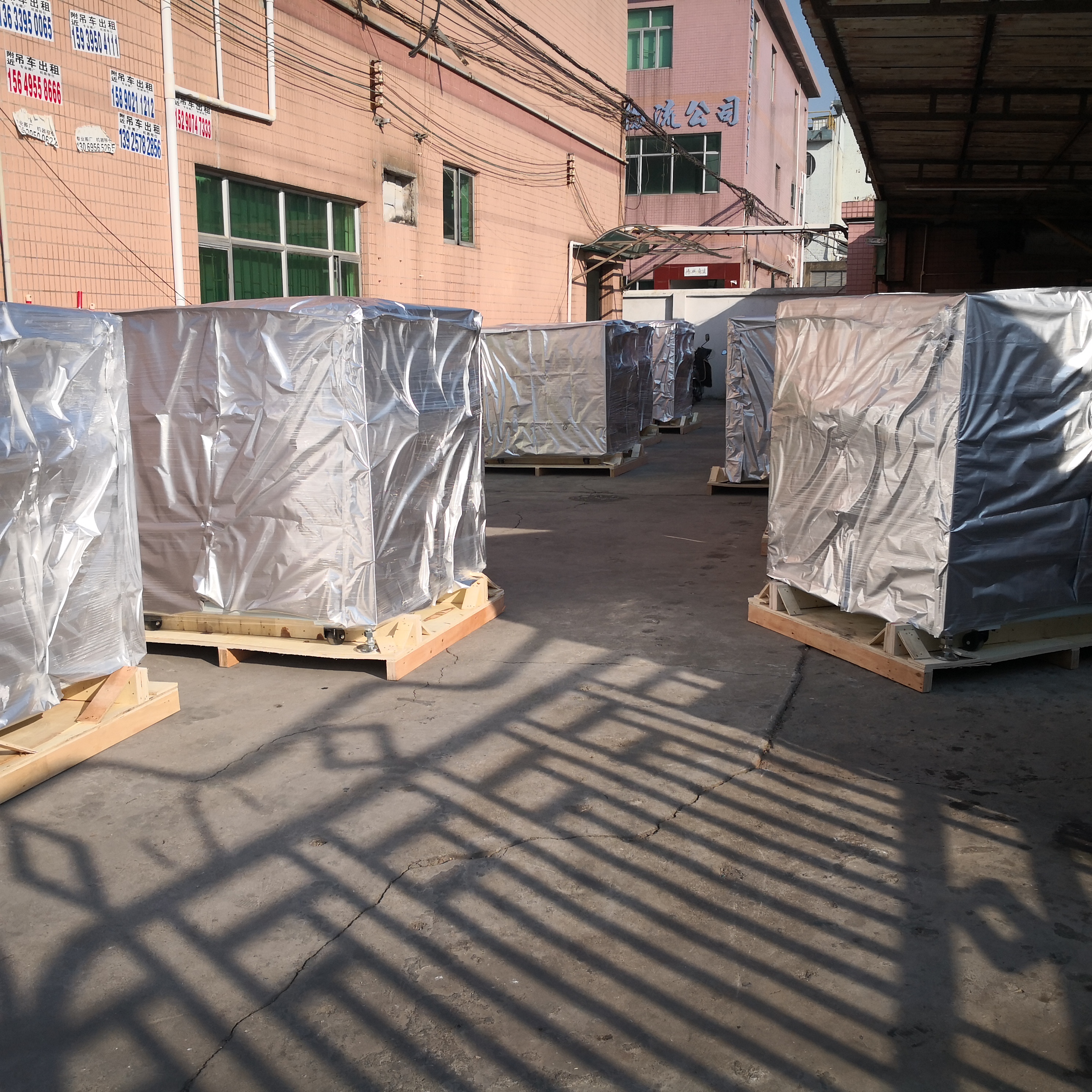

Packing Details :
Covered with Vacuum bag and packed with plywood Box .
Video Links of the Packing as below
https://www.youtube.com/watch?v=qchMggr76Fw
