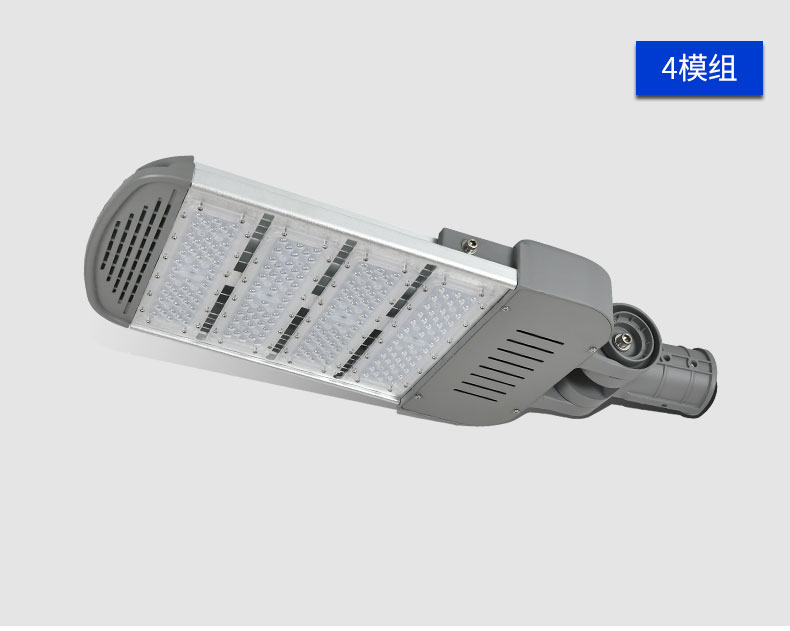

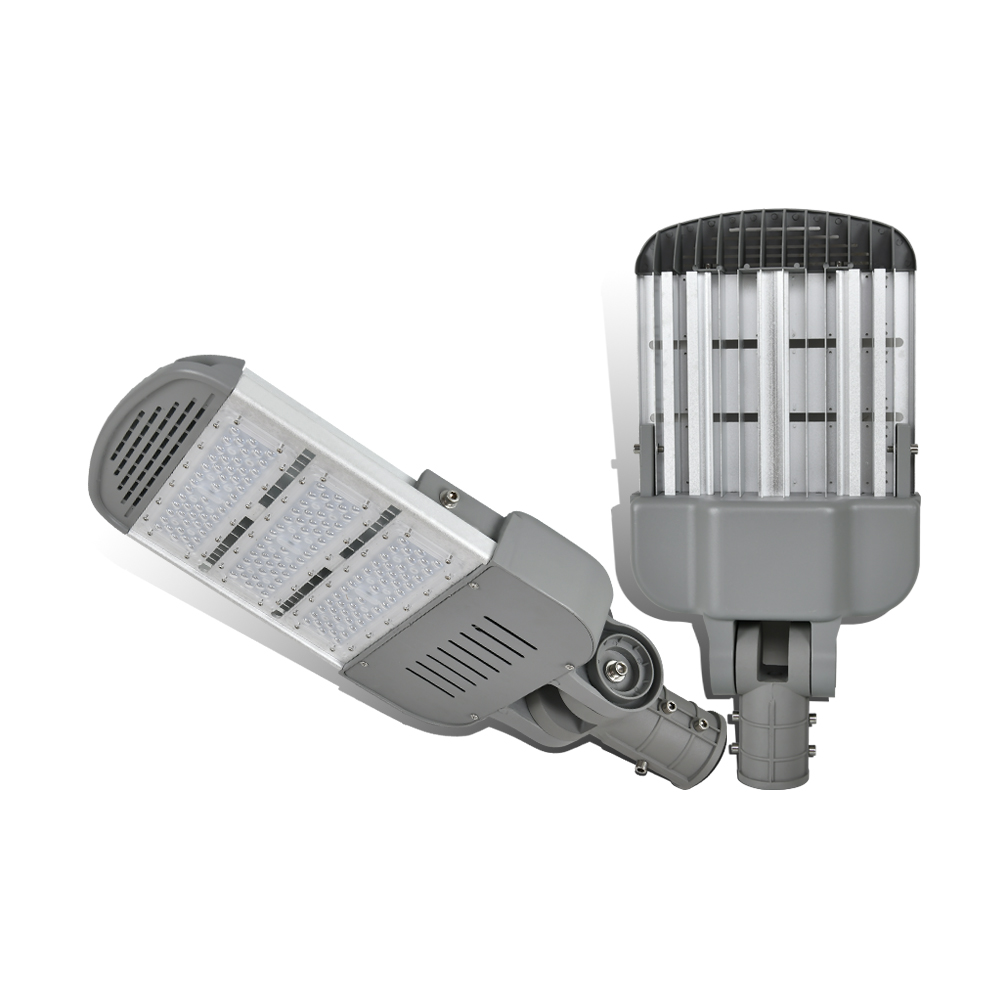

Rotation Led Street Lights for Projects

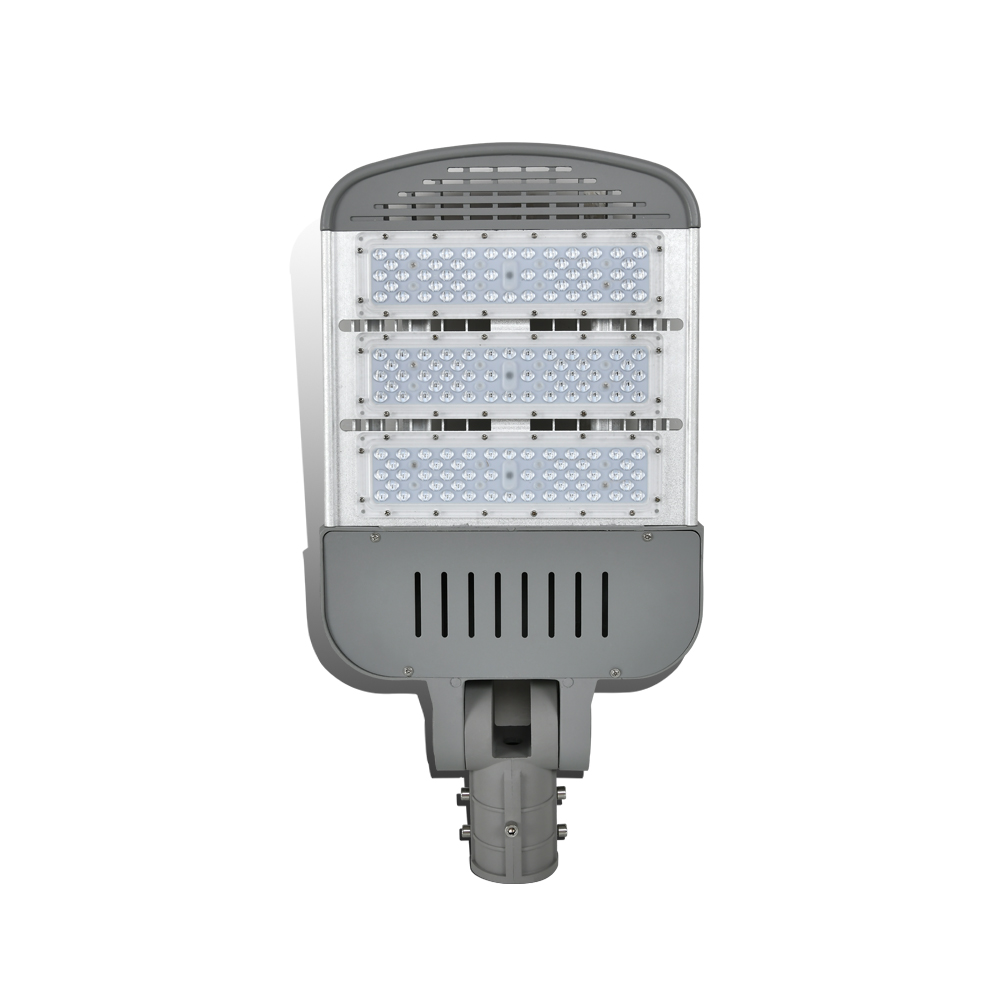

This is the Rotation arm Led Street Light with Strong Quality , can application with Meanwell Led Drivers or Philips Led Drivers , can application with Brigerux Led 3030 Or Philips Led 3030

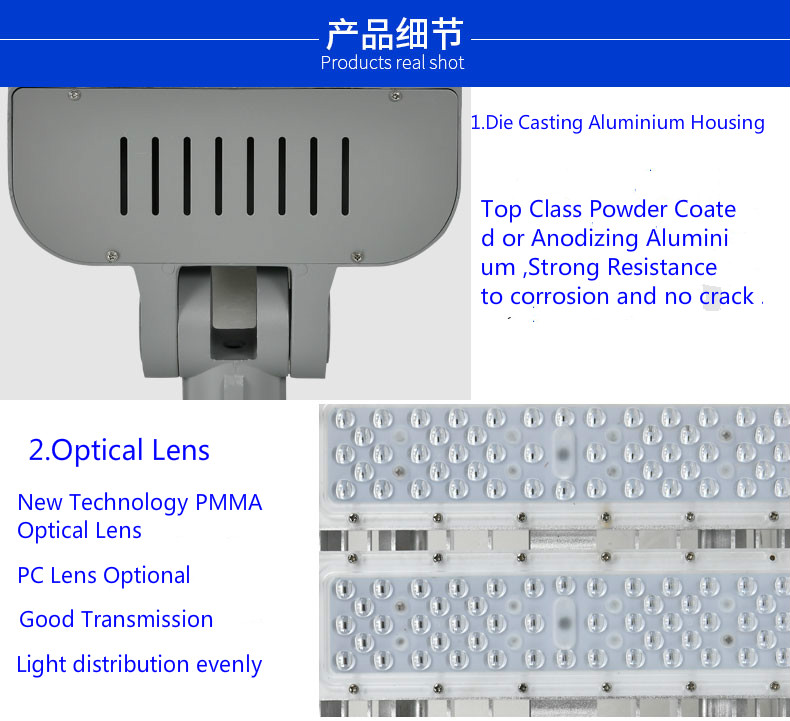

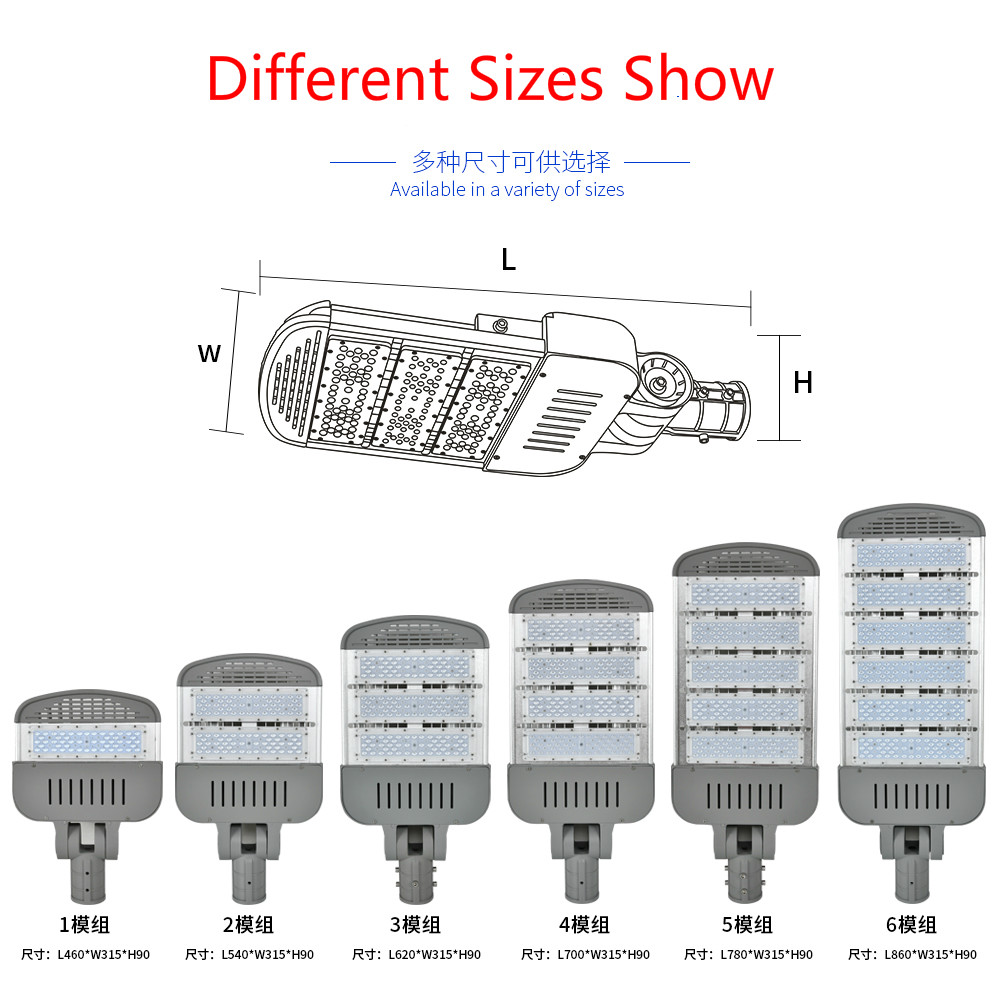

Housing Details Specifications
| Number of Modules | Net Weight | Dimensions (MM) |
| 1 Module | 3.5 KGS | L460* W315*H90 |
| 2 Modules | 4.1 KGS | L540*W315*H90 |
| 3 Modules | 4.7 KGS | L620*W315*H90 |
| 4 Modules | 5.3 KGS | L700*W315*H90 |
| 5 Modules | 6.0 KGS | L780*W315*H90 |
| 6 Modules | 6.6 KGS | L860*W315*H90 |

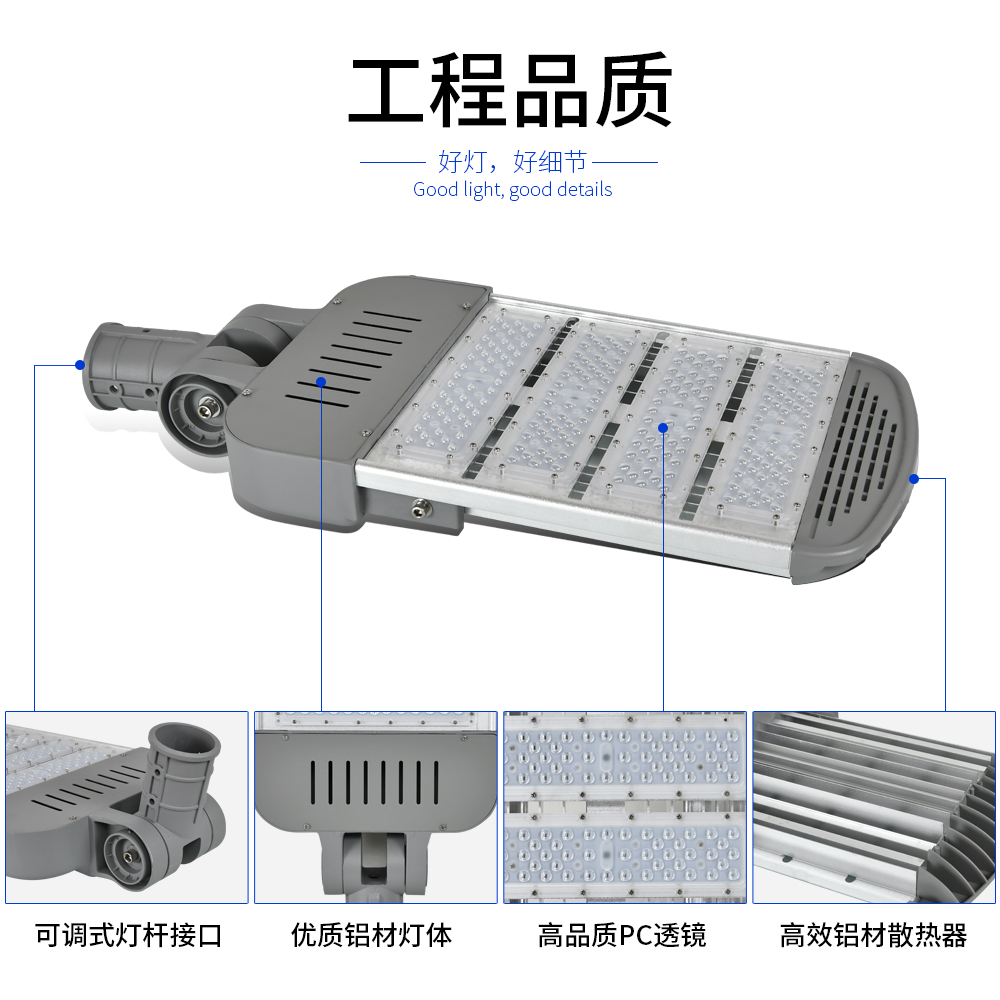

Other Parts Specifications
Items
Discriptions
PCB
50 PCS of led (5S ,10P),56 PCS of led (7S,8P), 30 PCS OF led (5S,6P)
LED
3030 Led 1W ,6V,150mA,Brand Bridgerux or Phillips
Lens
PC Lens or PMMA Lens ,Lens Angle 70*140 degree,
Power
30W,60W,90W,120W,15W,180W(30W/Module) ,50-300W(50W/Module)
Warranty
5 YEARS

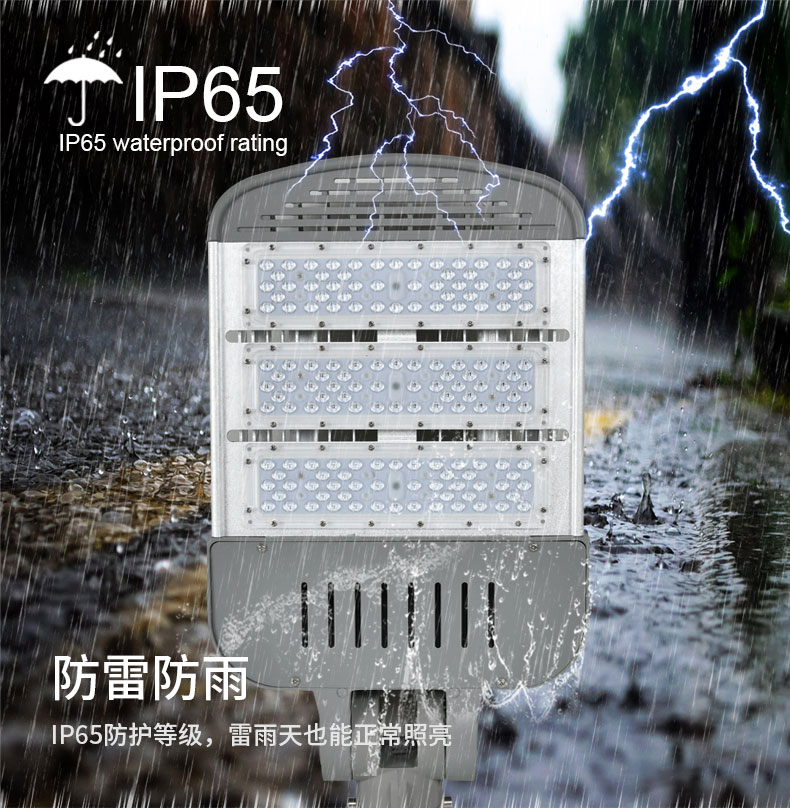

IP Class
IP 65,100% Water-Proof type
Led Driver
Meanwell Drivers or Phillips

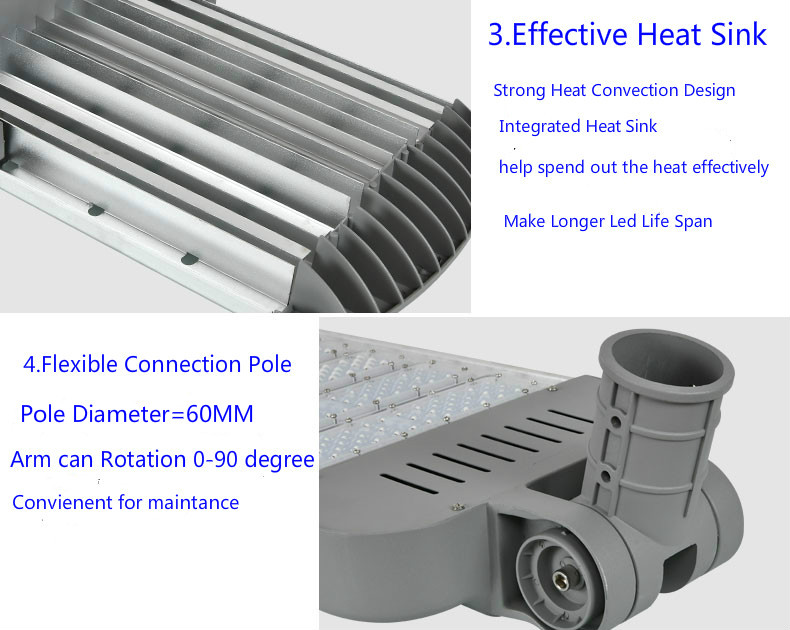

Pole Details
Diameters=60mm , Arm adjustable from 0-90 degree

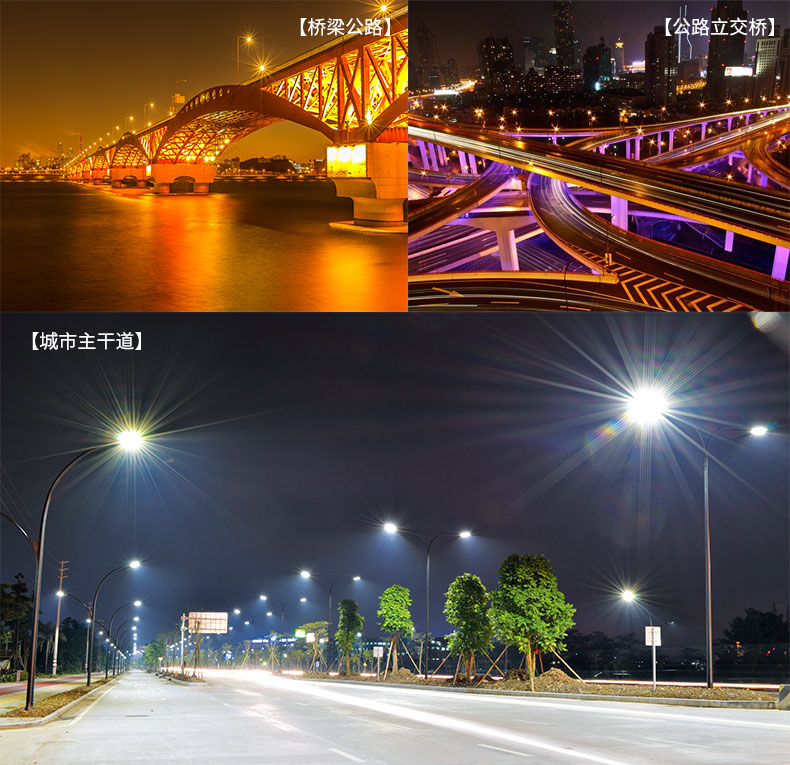

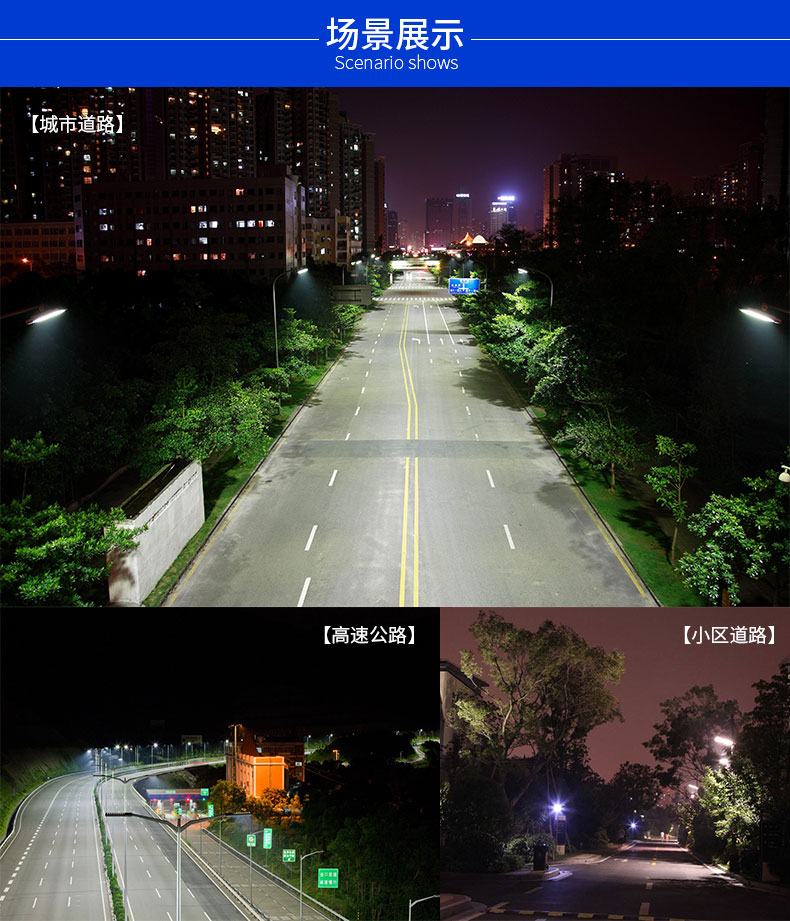

Application Scene Show
Welcome to Contact us For Samples
