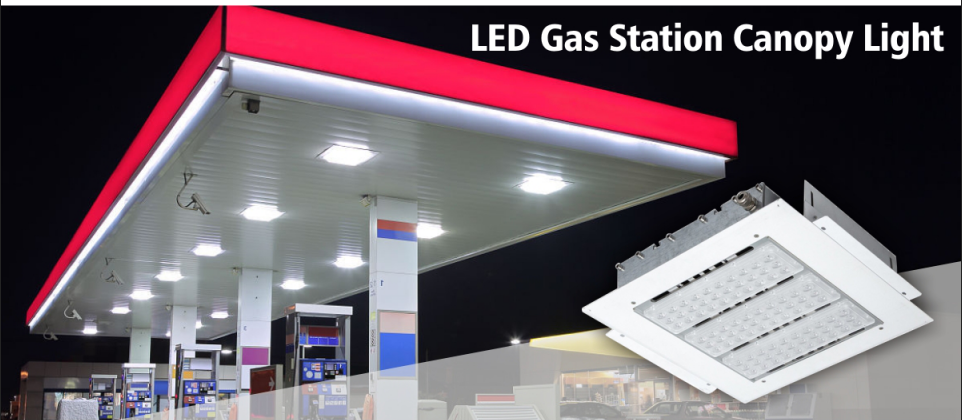

Led Gas /Petrol Station Canopy Light
Led Canopy Light
Gas /Petrol Station Led Canopy Light
Type 1 (Hang with Ceiling Hole)
Type 2 Hang with Tapping Screws

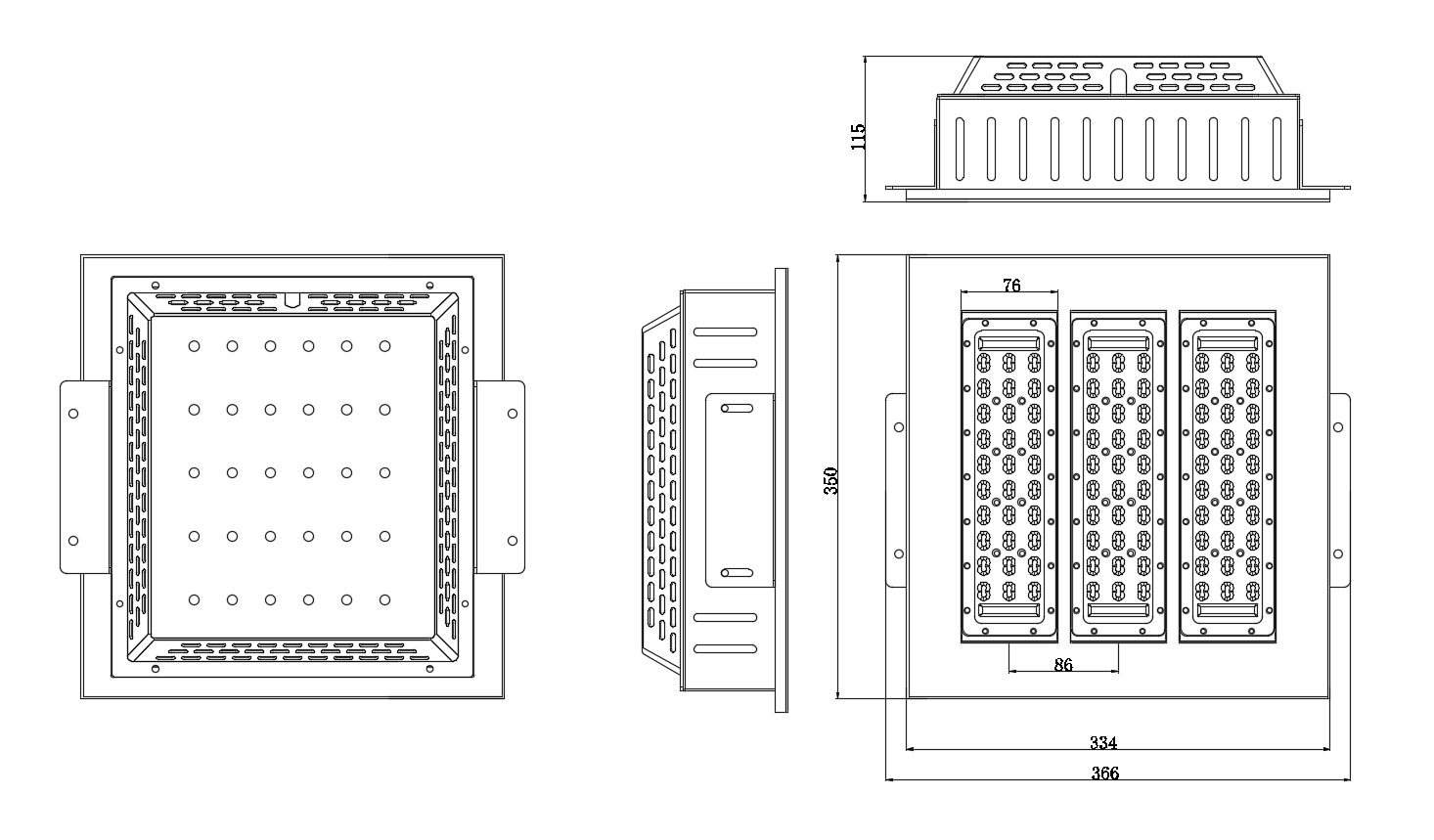

Out shape Drawing
Technical Specifications
|
Power |
Housing Model |
Sizes |
Packing Sizes |
Net Weight |
|
60-100W |
2 Modules 236 Housing |
28*35*11.5CM |
33*40*17CM |
4.8kgs |
|
90-150W |
3 Modules 236 Housing |
36.6*35*11.5CM |
41*40*17CM |
5.8kgs |
|
120-200W |
4 Modules 236 Housing |
45.2*35*11.5CM |
49*40*17CM |
7.1kgs |
|
150-250W |
5 Modules 236 Housing |
53.8*35*11.5CM |
57*40*17CM |
8.4kgs |
Notes:
1. Above prices are Based on terms ex at work at our Shenzhen Factory .
2. Prices are including all parts ,including Housing ,PC Lens ,Screws ,Driver fixture,Light Fixture ,Aluminum PCB ,water-proof rubber ,except power drivers and Led chips .

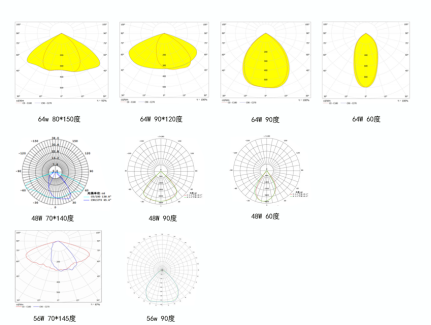

Light Distribution Curve
Features
1.Independent Modular design ，Easy to assembly，Convenient for Maintenance；
2.The sizes of the modular is International，can be general use in different countries，flexible assembly to meet customers different requirements；
3.Wide range for Watts ，adequately solve various solutions
4.Aluminum housing adopt 6063 National Aluminum profile,with excellent performance on heat discharges .
5.the Led Lens materials is Polycarbonate (PC) with High transmission of the Light，Anti Dust and water-proof，different requires for bean angle can be available，lights distribution uniformly；
6.the Light with shockproof structures，can stand some force attach.
7.The Housing of the Petrol station light use Anodized aluminum,frame and fittings treated by high-tech environment friendly spraying materials with function of Antiseptic and rust-proof.
8.Housing color can be made by your requirements .
Welcome to contact for further details discussions
