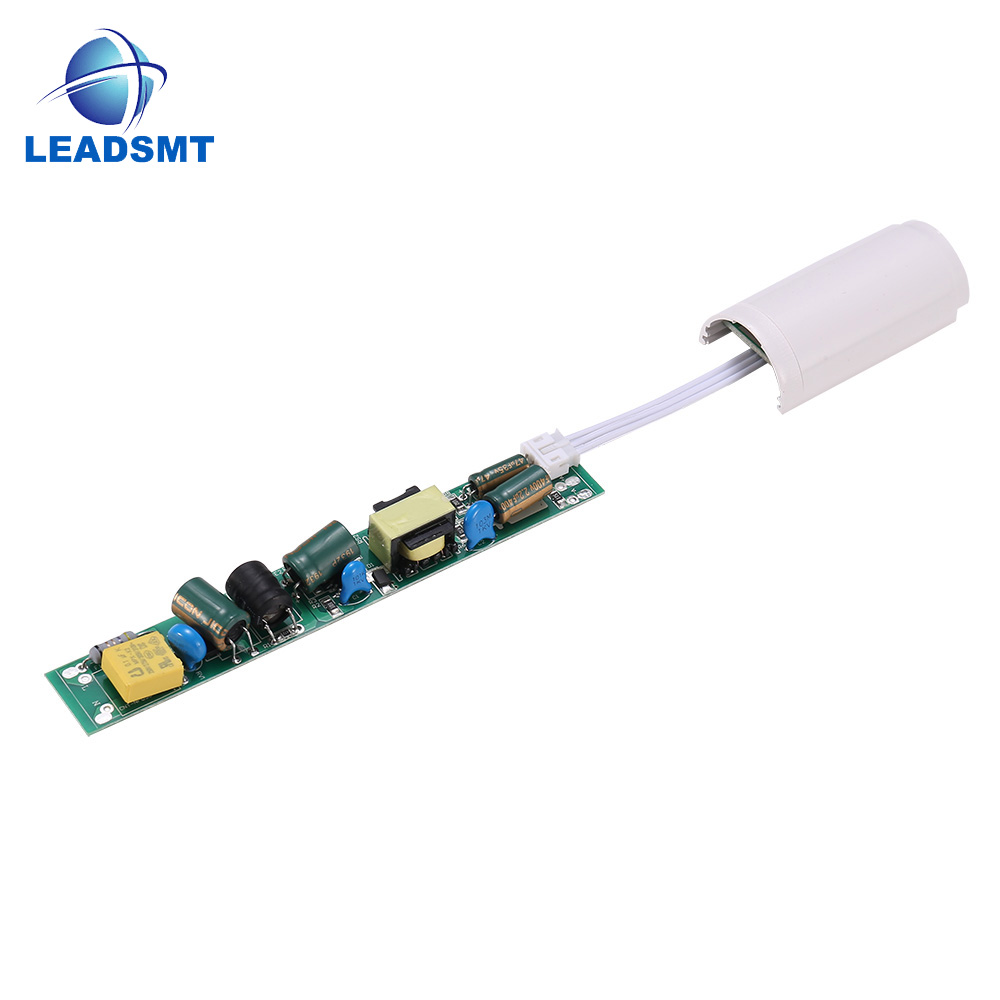

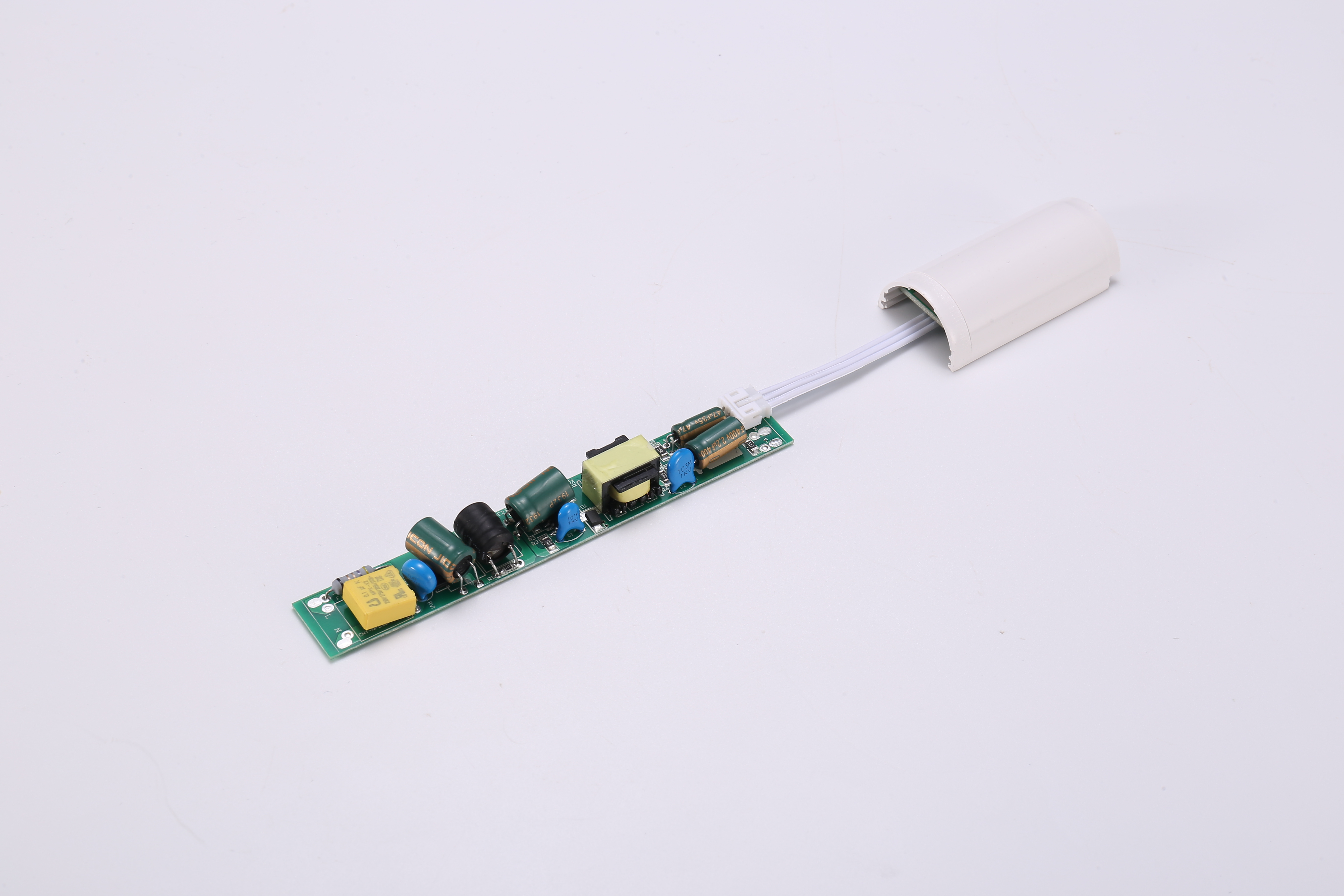

Led T8 Tube Light Microwave Sensor Driver
5 Years Warranty
High Power Factor Led Tube Light Microwave sensor Driver
This is the Led T8 Tube Power Supply (driver) with microwave sensor for 17-20W led Tube Lights . It Make with excellent quality for True 5 years warranty .This Series Led Tube Drivers already been applied by our customer in Johannesburg in South Africa for more than 6 years . The Microwave Sensor driver is super effective Can feel any mini micro-wave come with actions/movement ,Voice/Sounds even out of the door . It is widely application in the Car Parking place , home garden ,Metro stations , Train station .Its Superior quality designed for only Project Led Tube Lighting Business .
Specifications of our Micro-Wave Sensor 18W Led Tube Driver
| Model No. | CNT-NF090-V5.1 |
| Sizes | (L)108*(W)16*(H) 1.0 MM |
| Net Weight | 18 grams |
| Input Voltage Range | 100-265V |
| Output Voltage Range | 50-80V |
| Output Current | 240mA |
| Output Power | 17W(DC 72V) ,18W(DC 75V) |
| Power Factor | PF >0.9 |
| Frequency | 50/60Hz |
| Total Harmonic Distortion(THD) | <25% (230V) |
| Surge Protection | 0.5KV |
| Working Temperature Range |
-25℃ ～ +45℃ |
| Storage Protection |
-40℃ ～ +60℃ |
| Isolation or Non-Isolation | Non Isolation |
| Flicker or Flicker Free | Flicker |
| Short Circuit Protection | YES |
| Over Voltage Protection | YES |
| Lifespan | 25000 Hours at 85℃ |
| Warranty | 5 Years |
| After Sense Working Power | 100% ,18W |
| Non Sense Working Power | 0 % t0 50% Power working can be set |
| Working time after Sense | 30 Seconds |

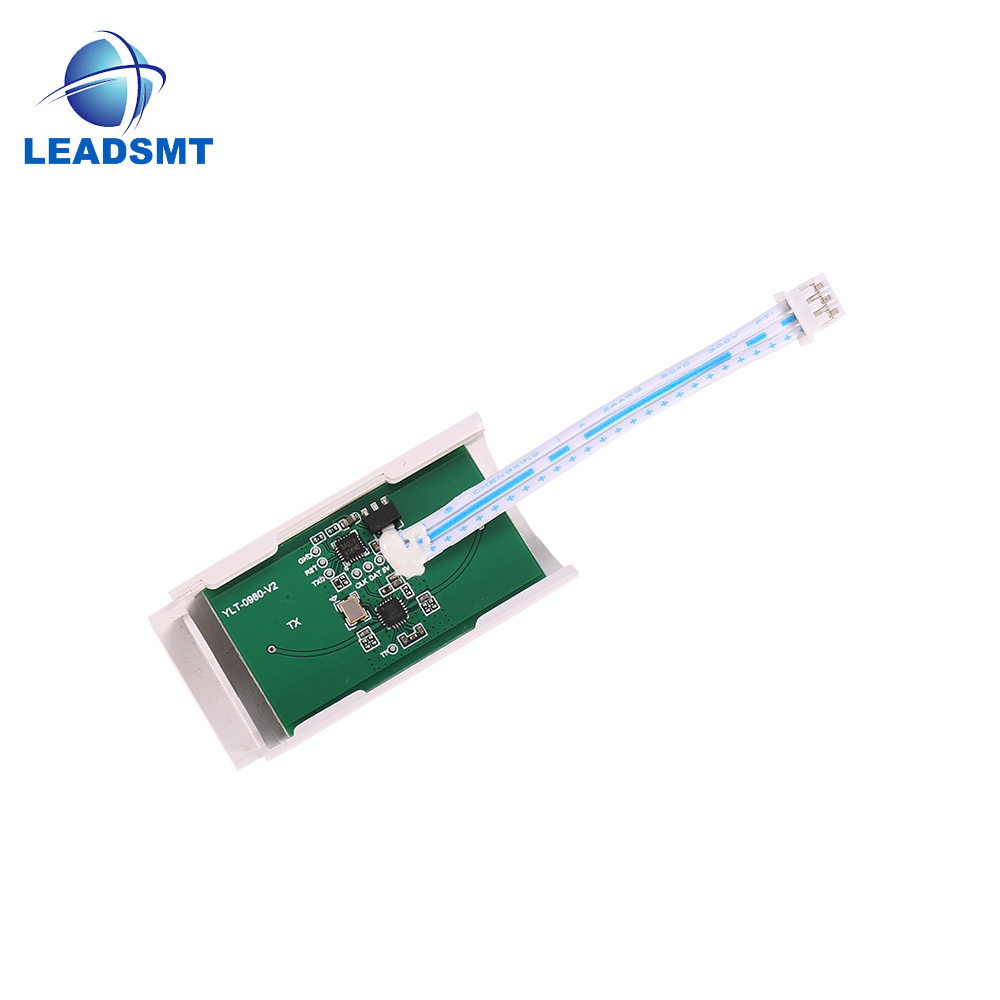

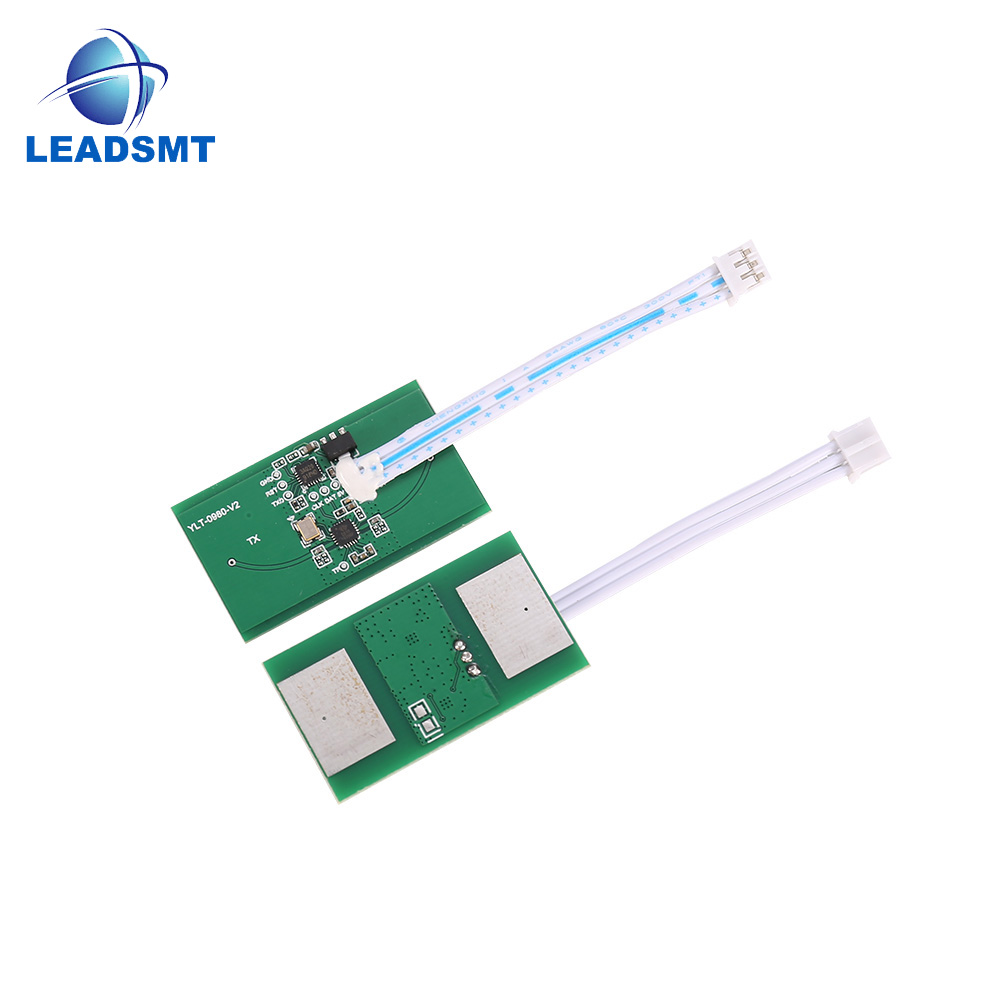

| Way of Sensing | Micro-Wave Sensor |
| Effective Distance | 2-5 Meters |
| Sensor Class | Top Strong Signals |
| If you have more questions ,please free to inquiry us .Welcome for samples Order . | |
