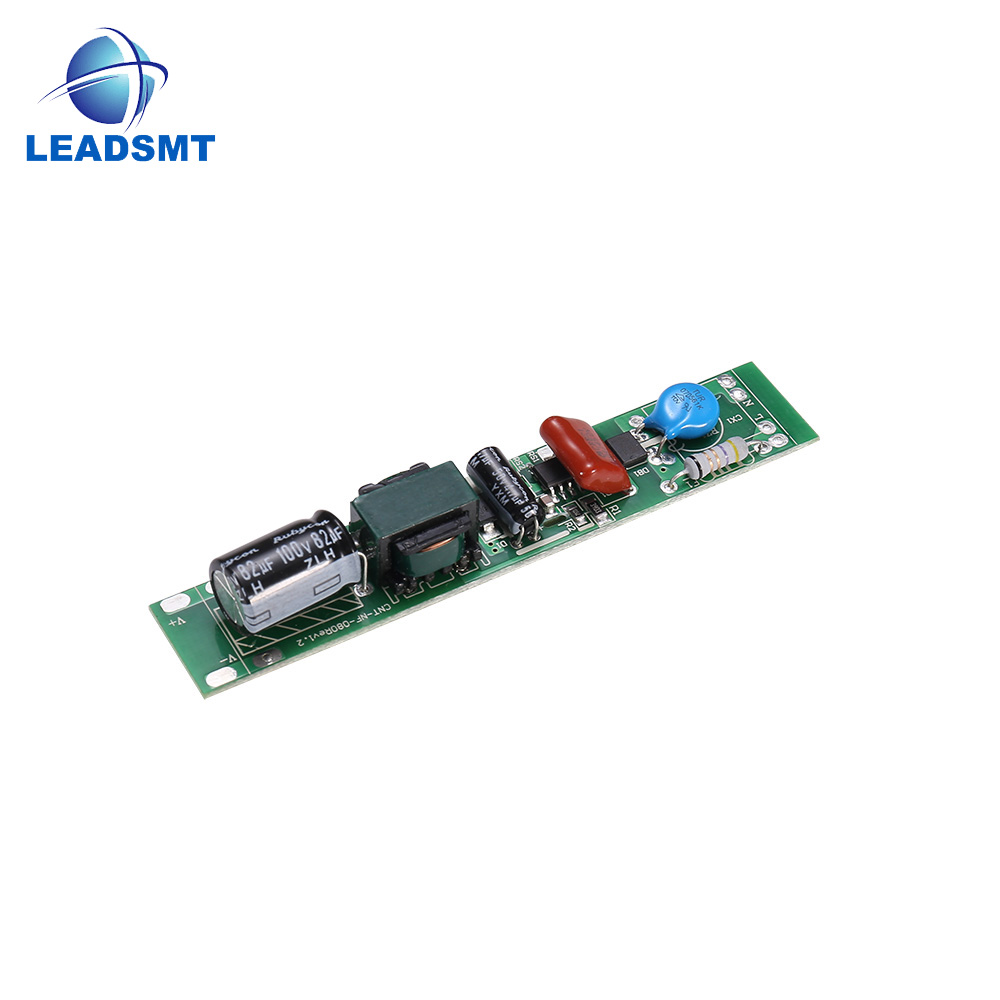

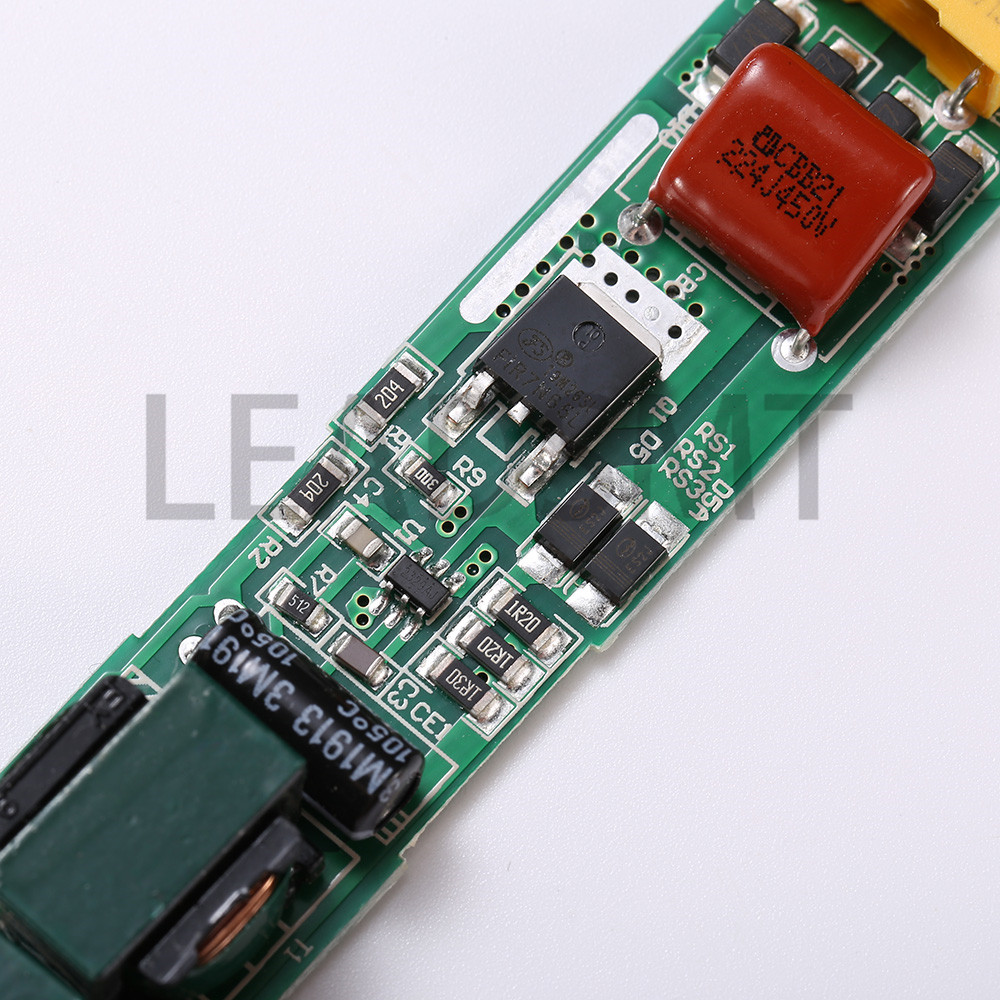

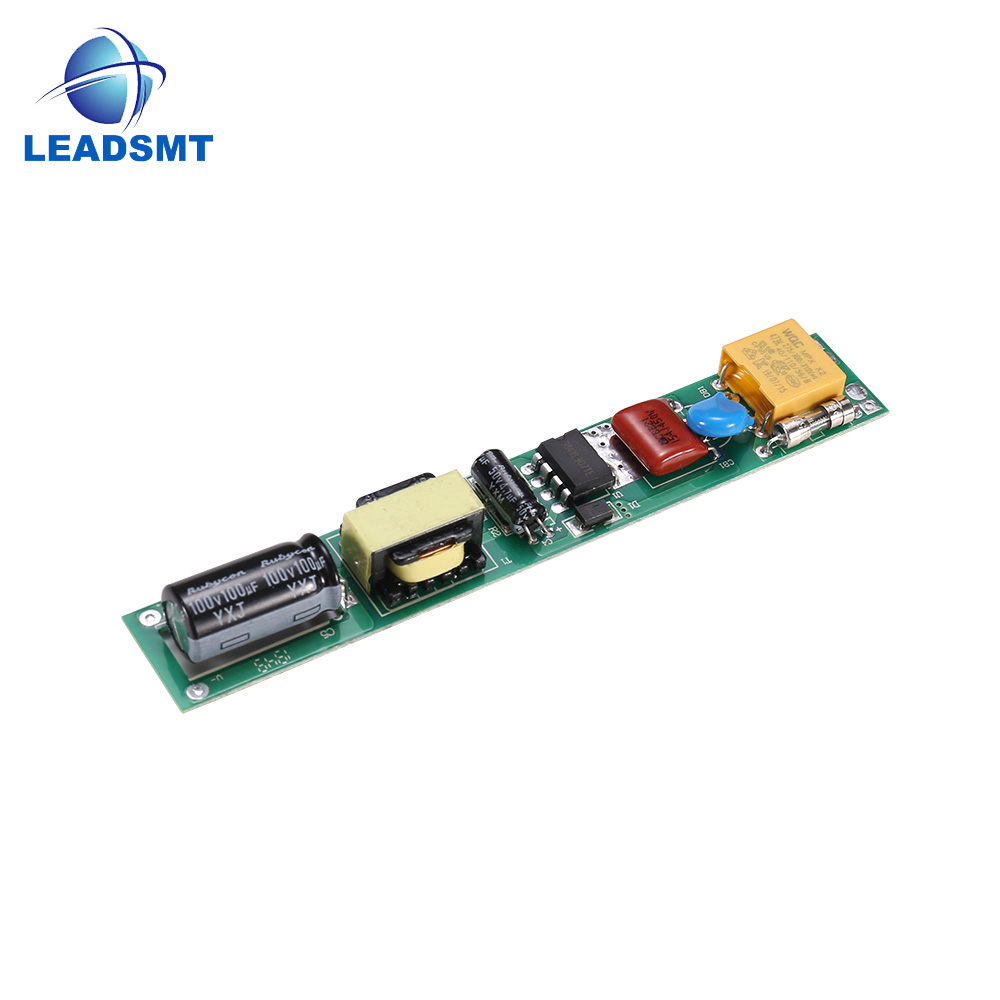

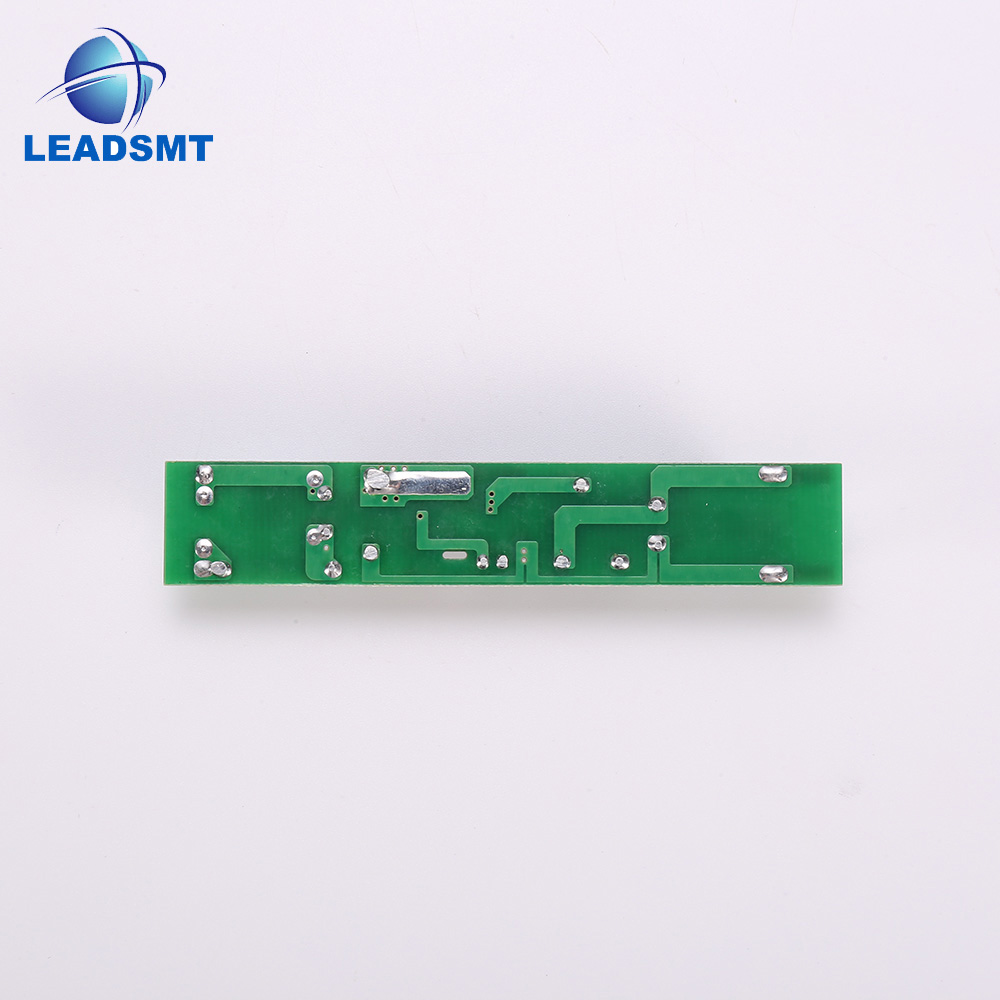

240mA Constant Led Tube light Power Supply (Driver)
5 Years Warranty
Main Specifications as below :
| Model No. (Maybe updated) |
CNT-NF080B-V5.0 |
CNT-NF101-V5.0 |
| Sizes (L*W*H) | 84*16*11 mm | 105*16.5*11 mm |
| Net Weight | 13g | 15g |
| Input Voltage Range | 100-265V | 100-265V |
| Output Voltage Range | 35-82V | 35-82V |
| No Load Voltage Output | 89V | 96V |
| Output Current | 240mA | 24MmA |
| Output Power Range | 12-19W | 12-19W |
| Power Factor |
Normally >0.9 , but >0.95 when (input Voltage =220V,Output Voltage =72V,Output Current=240mA) |
Normally >0.9 , but >0.95 when (input Voltage =220V,Output Voltage =72V,Output Current=240mA) |
| Frequency | 50/60Hz | 50/60Hz |
| Efficiency | >=88% | >=87% |
| THD | <25%(200-240V),<=15%(230V) |
<25%(200-240V),<=15%(230V) |
| Surge Protection | 1-1.5KV | 1-1.5KV |
| Ambient Temperature | -25℃--+80℃ |
-25℃--+80℃ |
| Storage Temperature |
-40℃--+60℃ |
-40℃--+60℃ |
| Isolation or non isolation | Non isolation | Non isolation |
| Flicker or Flicker Free | Flicker | Flicker-Free |
| Short Circuit Protection | YES | YES |
| Over Voltage Protection | YES | YES |
| Over Temperature Protection | at 150℃ |
at 150℃ |
| Life span | 25000 Hours (working temperature less 85℃) |
25000 Hours (working temperature less 85℃) |
| Warranty | 5 Years | 5 Years |
|
We can make the Led drivers for Led Tubes for 5 years warranty according for your detail requirements .Welcome to inquiry us . |
||
By the way ,we can also help you design the Aluminum smd pcb for the led tubes to meet the drivers .We have one stop supply chain for led drivers and Smd Led Aluminum PCB .
