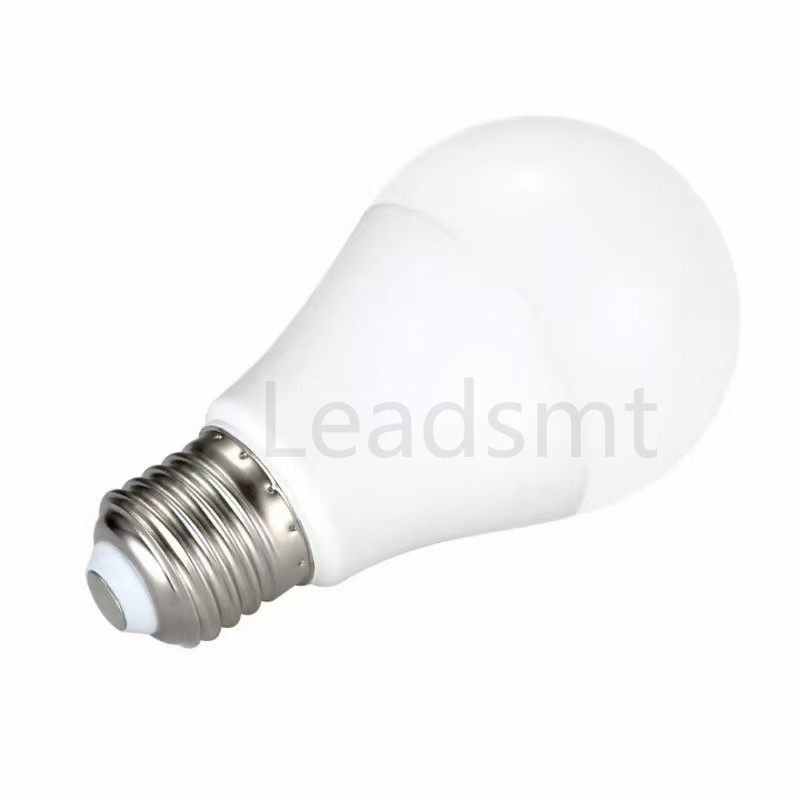

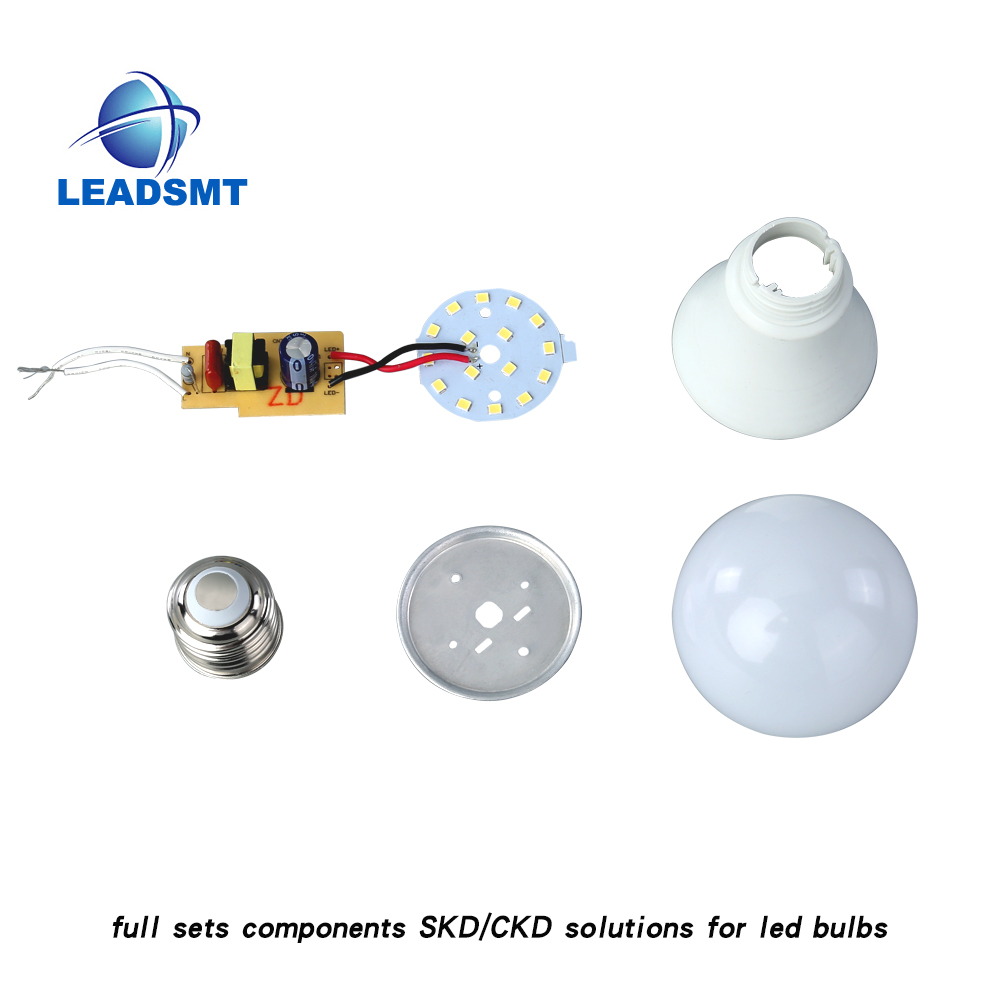

Skd Led bulb Components

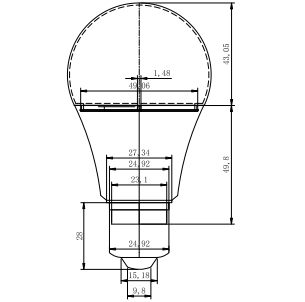

A60 9W
| 1.Power | 7-9W Led bulb |
| 2.PC Lens |
Raw Materials :PC ,Luminousness≥ 92%,Light Angle 140°-170° |

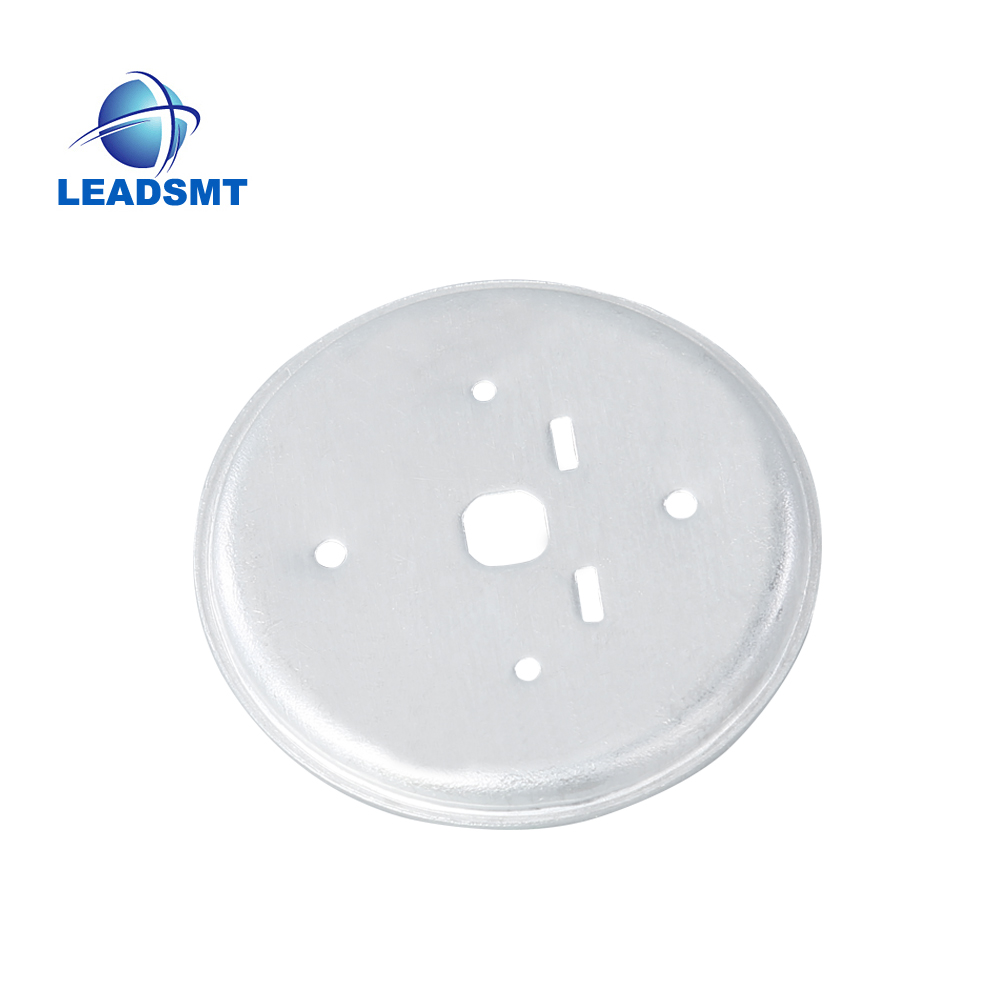

| 3.Heat Sink Plate | Made by 1.0MM Steel |
| 4.Aluminum PCB |
Raw Materials: A Class fully New Aluminum ,Process work: Cooper Printed , Surface Treatment:OSP , Pad Cooper Thickness: 0.5 Oz(18Um) ,Aluminum Thickness: 1.01mm ,Diameter=(38-40mm) |
| 5.Led | Model : 2835,0.5W ,60-65LM , CRI>80 ,3-3.2V,150mA,4000k/5000k,6000k , 16pcs led for 7W and 20 pcs of led for 9W . |

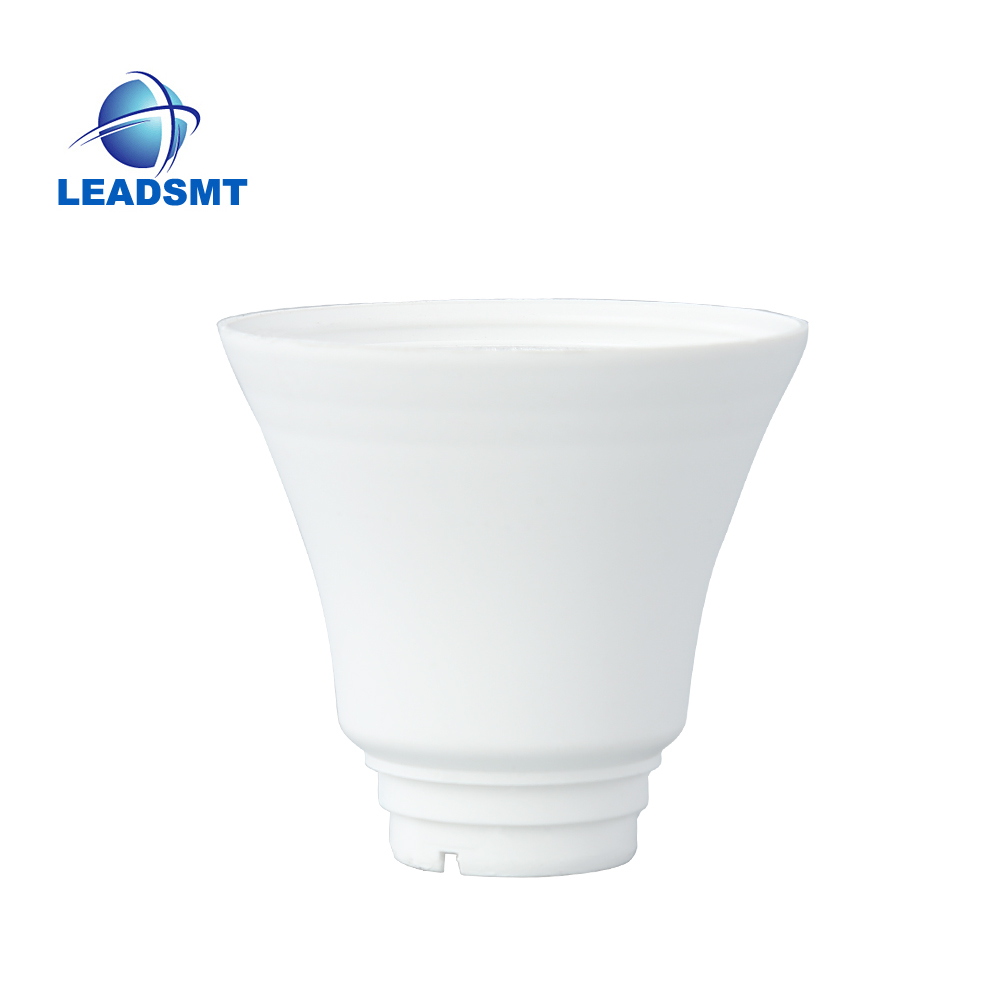

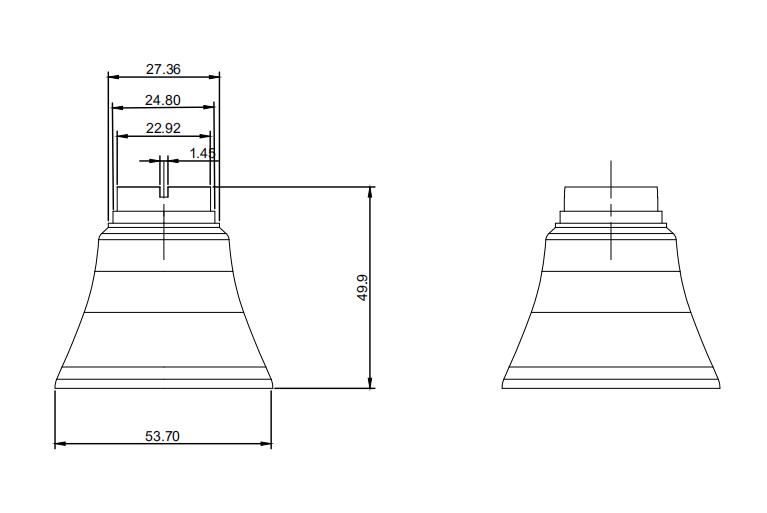

| 6.Housing | Plastic Aluminum Housing ,Weight =16grams ,with driver clap lanes and screws path at the base. |

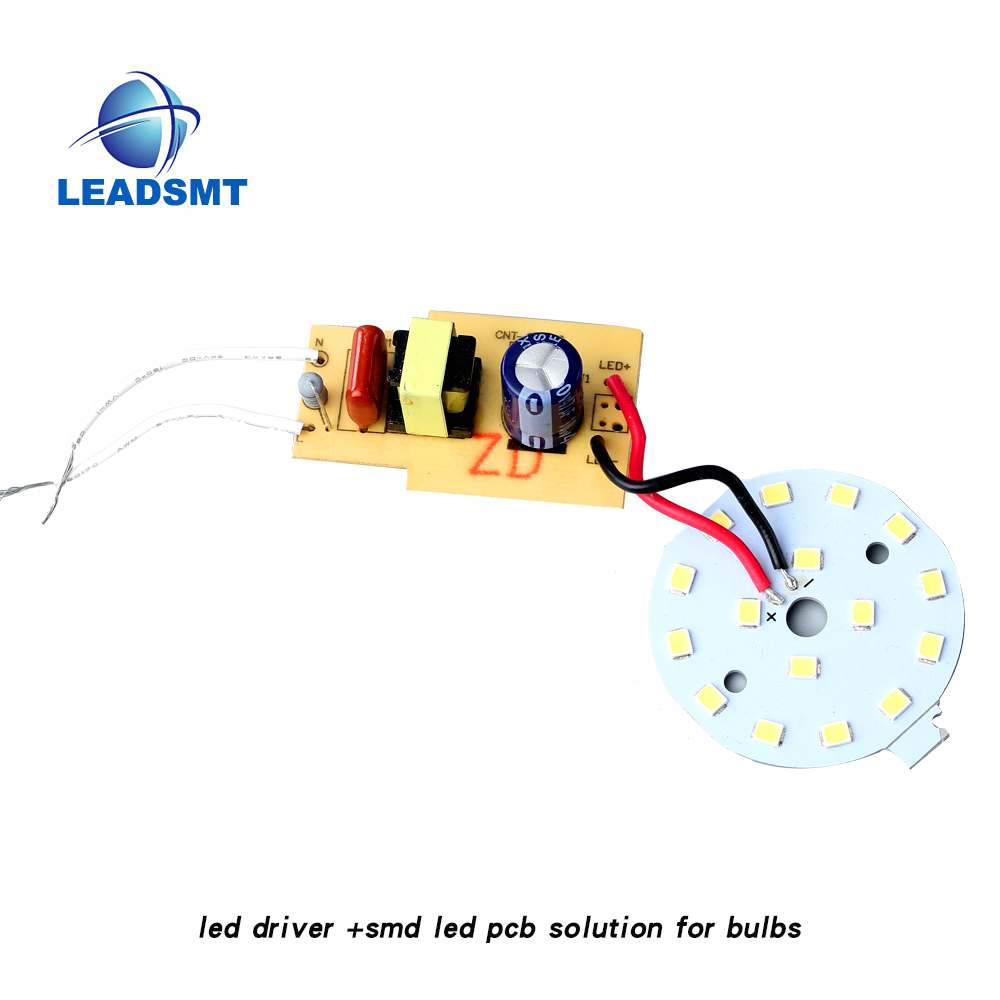

| 7.Driver |
PF≥0.92,Input Voltage 100-240Vac,Input Current 0.1A, Output Voltage 45-80Vac,Max output Current=0.11A, Efficiency=90%,Weight=8grams, Dimensions=L42.5*W25.5*H20mm |

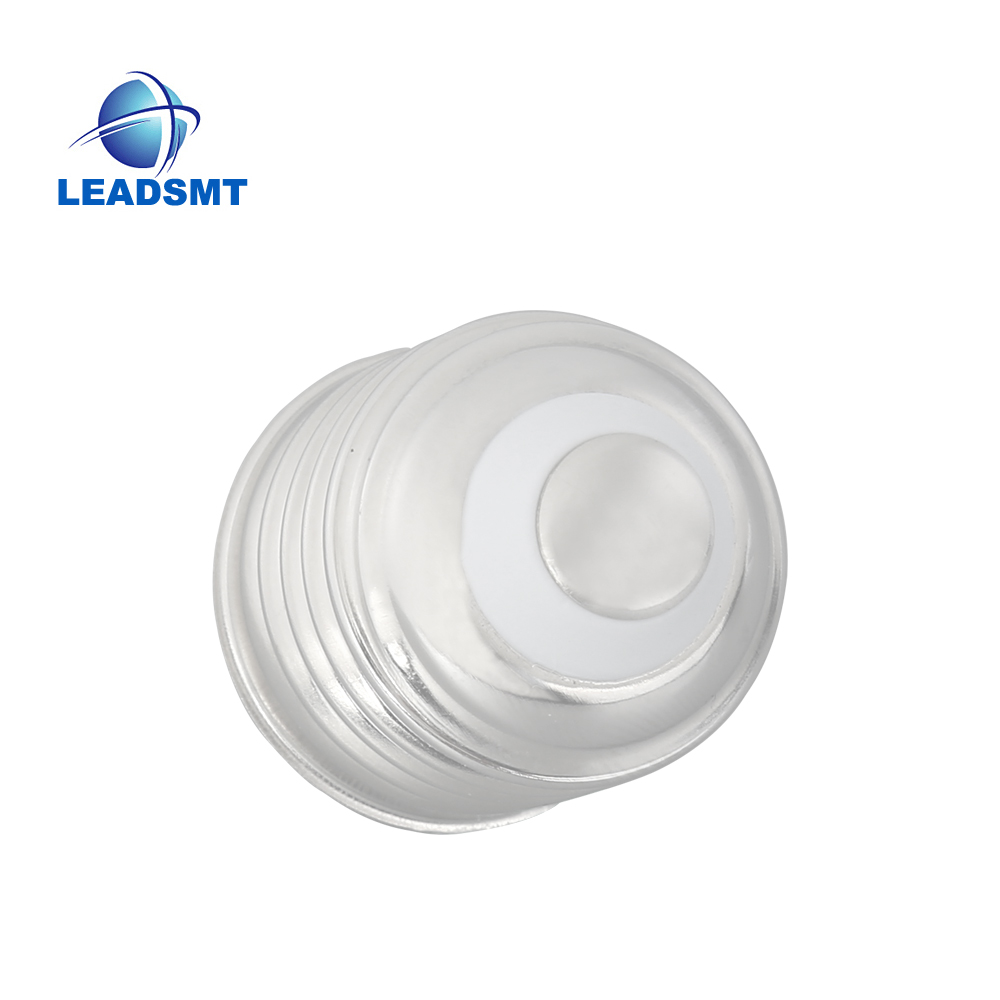

| 8.End Cap | Made of Nickelferrite,E27 Popular end cap（with pin）in the Market or B22 end cap with two pins . |

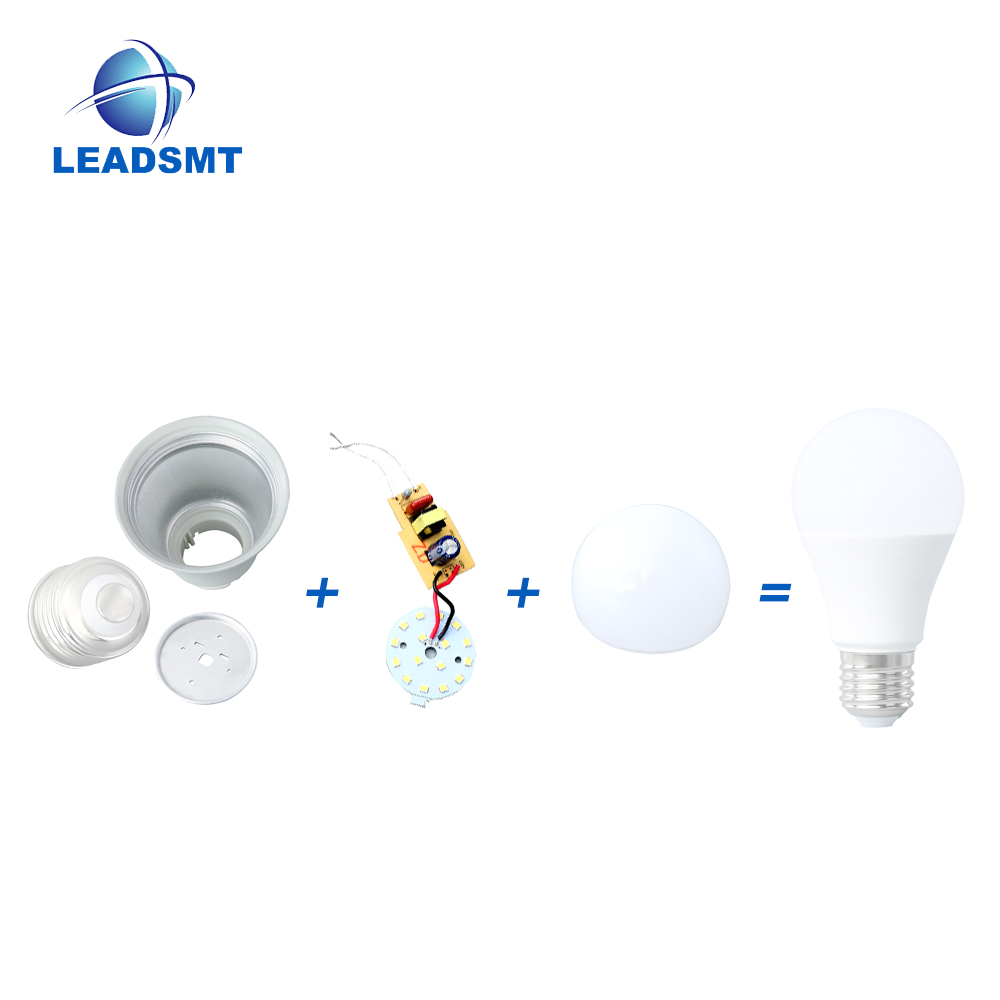

Including plastic Aluminum Housing + High transmission PC Lens + E27/B22 Lamp Cap with pins + smd led pcb + Heat sink
You can buy all components from us , or just buy one or some from us . It is very flexible way for cooperation .
Please contact for further details discussion :
