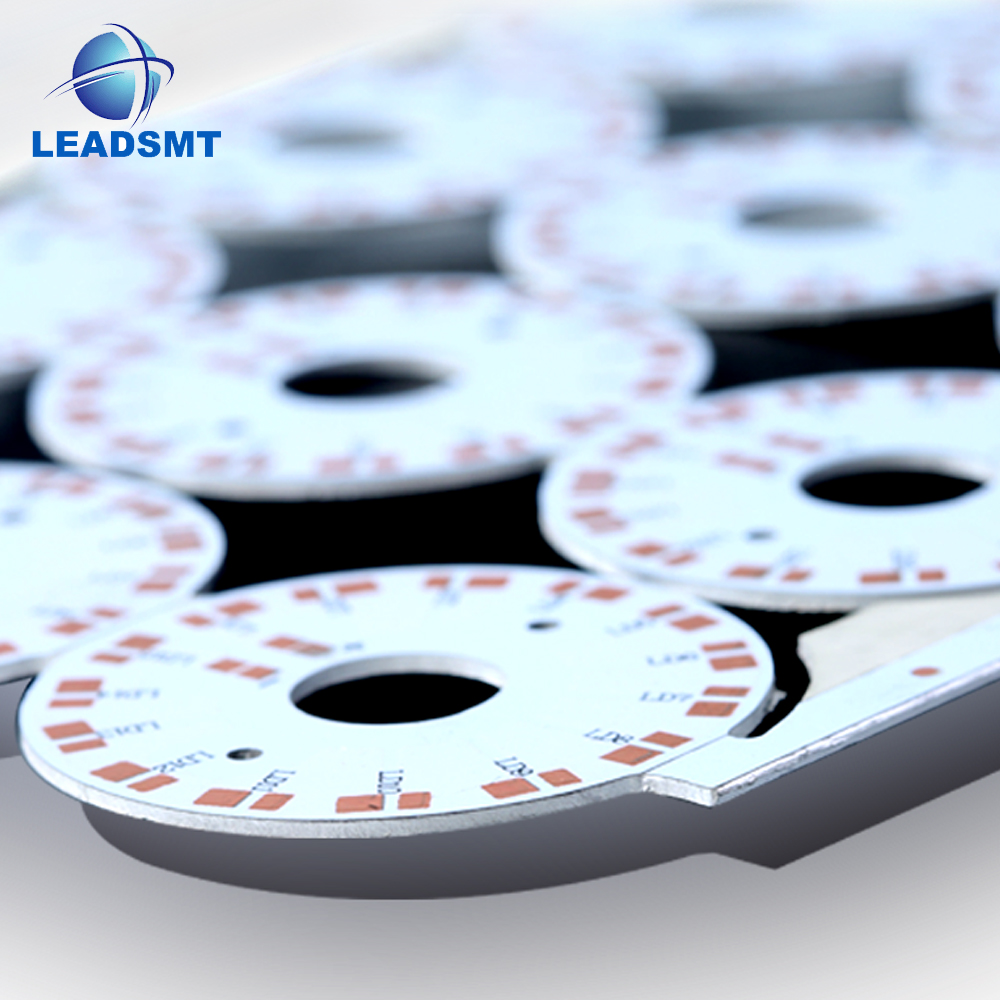

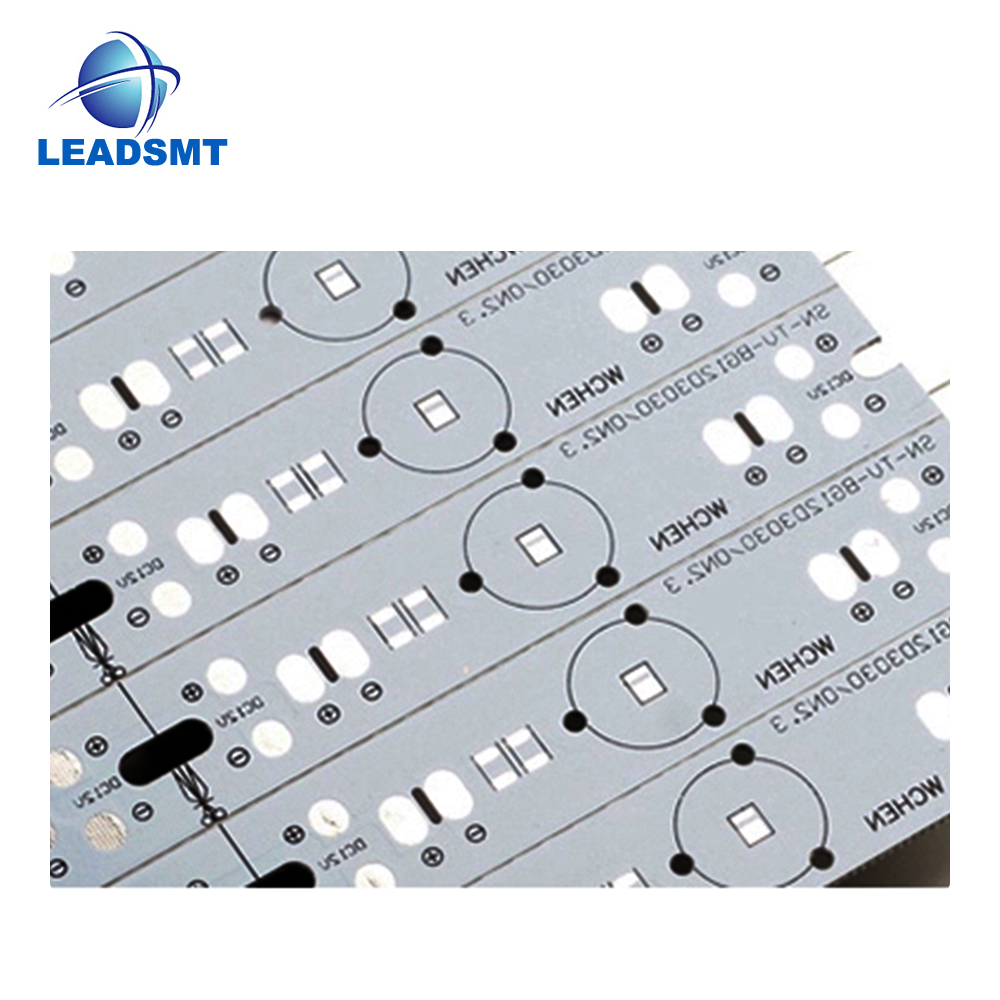

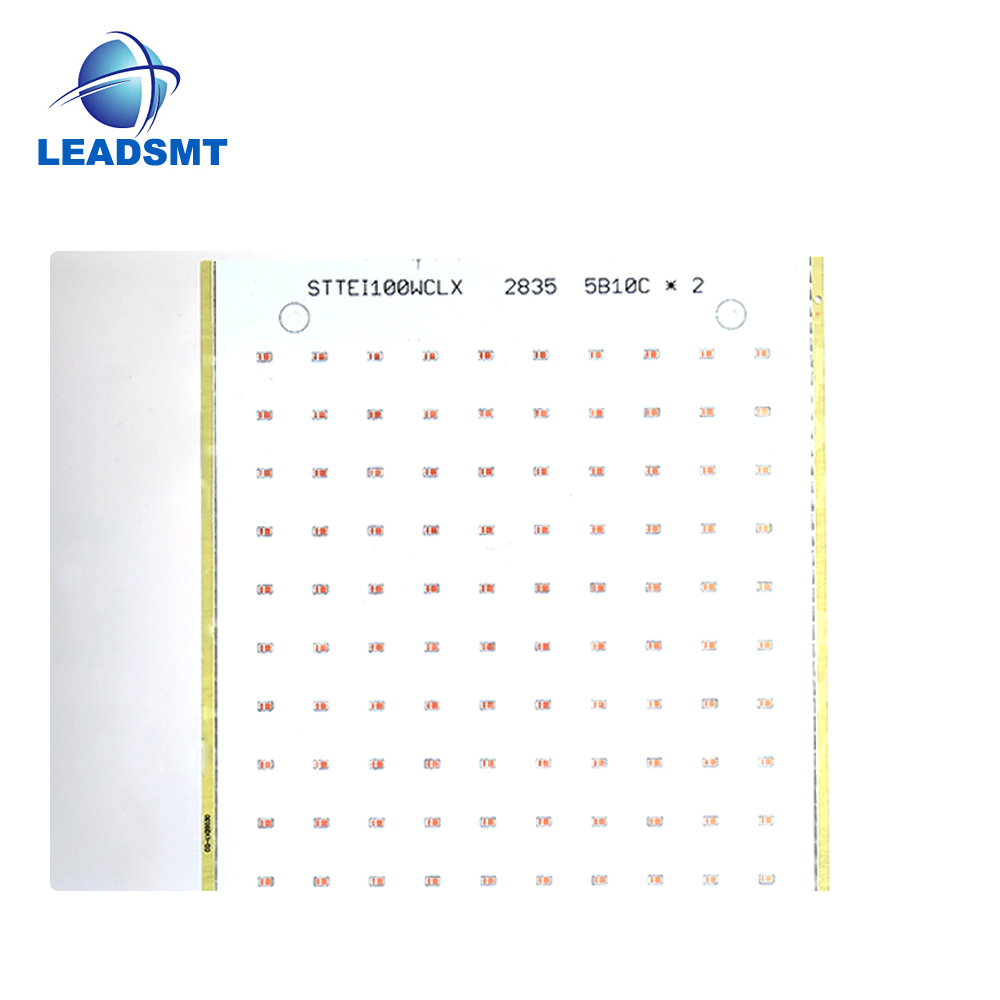

Aluminum PCB for led lighting (MC PCB Board)
Aluminum pcb
Aluminum PCB also called MC PCB made of aluminum profile , PP material and Cooper,is the most Popular PCB Board for smd led pcb board for led lighting Industry .

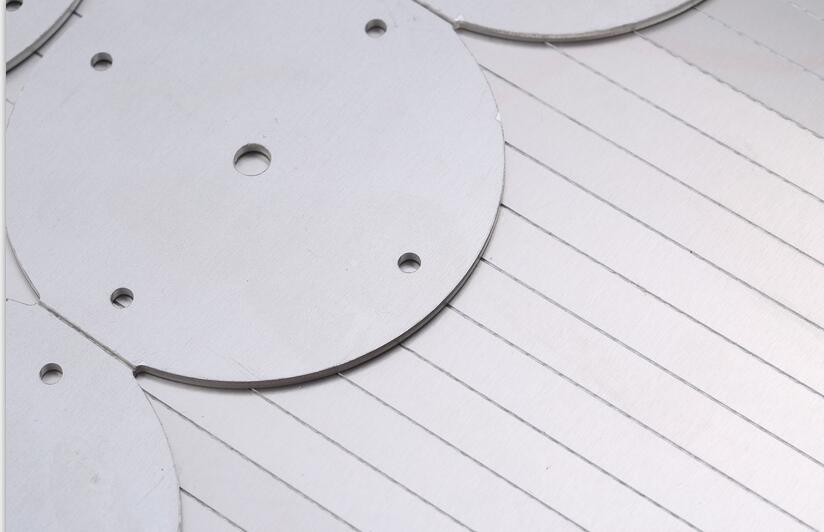

Led Aluminum PCB Normally is one side with 3 Layers ,the basic layer is the Aluminum layer as the heat sink for the leds,The Second one is the circuit layer made of cooper ,the Third one is the isolation layer make of PP Materials .
Aluminum PCB with excellent advantages in Heat discharge for led lighting business ,also with cost sensitive concern,which make it widely use in led bulbs ,led tube lights ,Led Street Lights ,Led Flood Lighting ,Led high Bay Lights ,Led Black Light ,Led Corn Lights .
LED Aluminum PCB Specifications
| Descriptions | LED Aluminum PCB |
| Raw Materials | Aluminum ,Cooper &PP Isolation Material |
| No.of Layer | 3 Layers |
| Surface Treatment | OSP,Tin Leaded ,HASL |
| PCB Thickness | 0.7-5.0mm ,normally is 1.0mm for led bulbs and Tubes Lights |
| Copper Thickness | 0.5Oz(18um) -4.0Oz (144um) ,Normally 0.5 Oz for led tube lights and Bulbs |
| Oil & Letters on PCB | White Oil & Black Letters |
| No.of Side | Single Side |
| Type of Led Lighting Applications | led bulb ,led tube ,led panel,led flood Light,Led street Light Led Corn Light etc |
| PCB Sizes | Made by your detail requirements |
| PCB Design | We can discuss the details together |
Steps for your purchase led aluminum pcb
1.Discussion for Details .
2.Price Offer .
3.Place order
4.We arrange Production and provide you a sample for confirmation by Video and Pictures or by International Express to your factory .

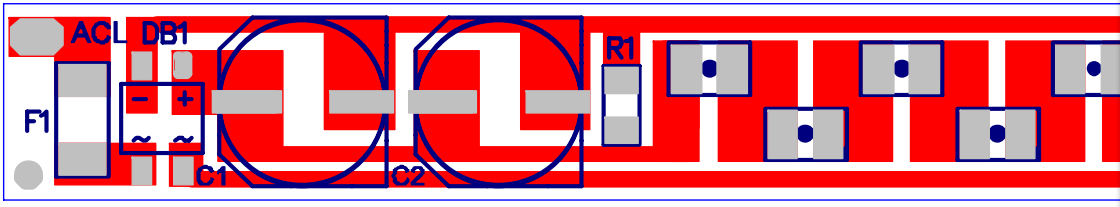

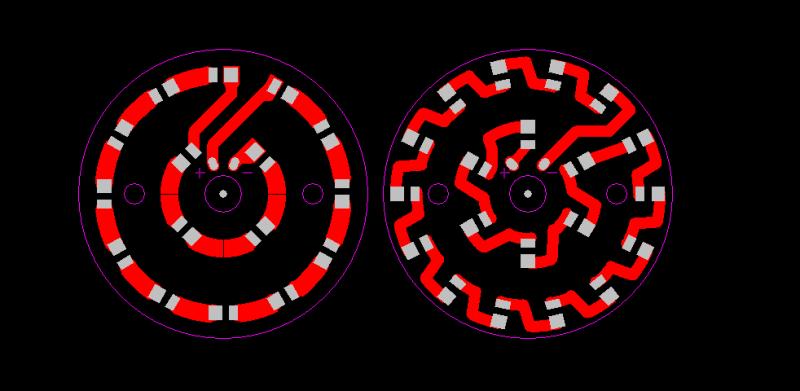

For PCB Design , you can give us your Gerber File or discuss with us your PCB details then we design for you .

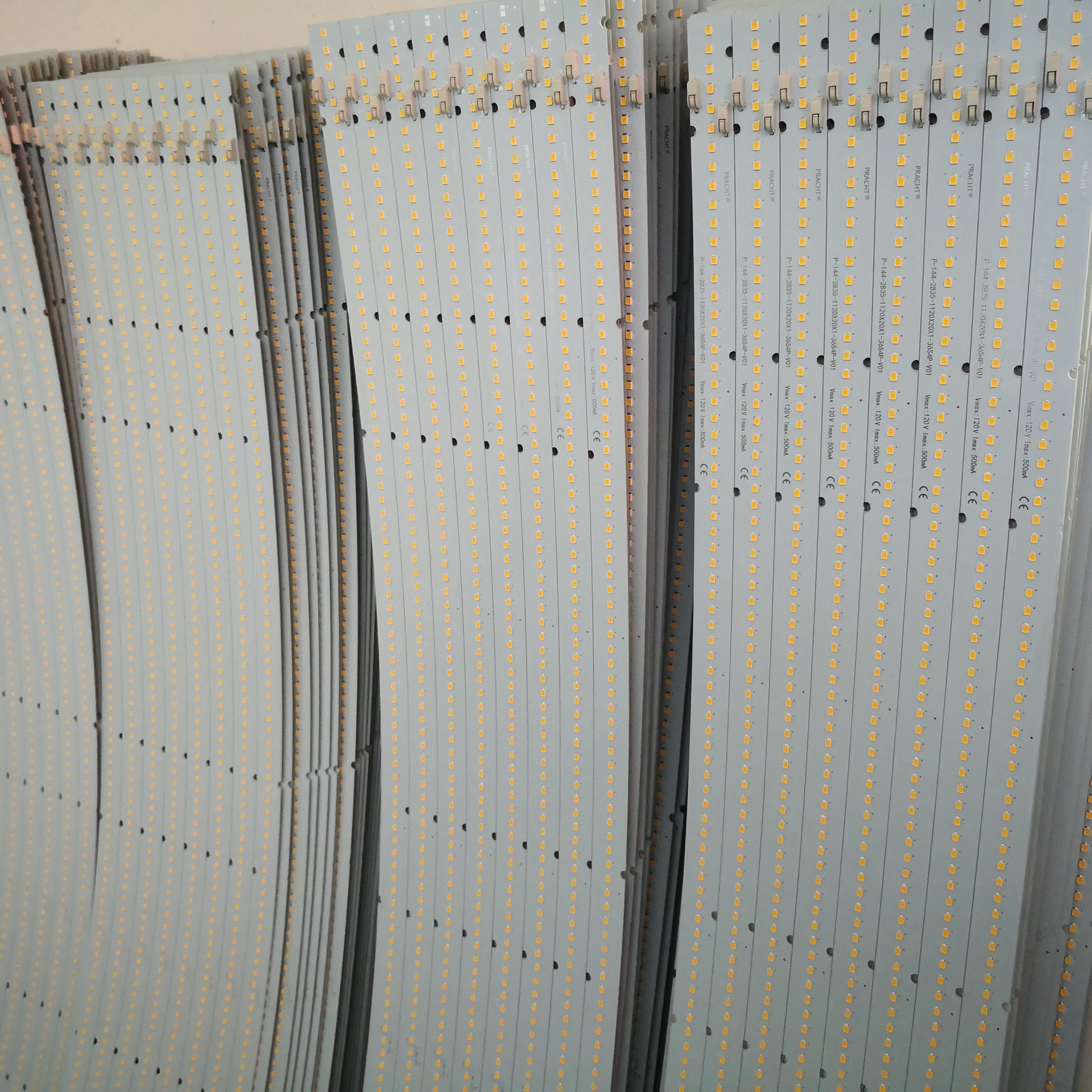

We Also have smd workshop with 6 lines of smd machines production Millions of smd led Completed PCB Board for Local Led Lighting Factories at our factory , Welcome to inquiry smd led pcb boards from us too .
Welcome to Contact me for further discussion and Sincere Cooperation .
