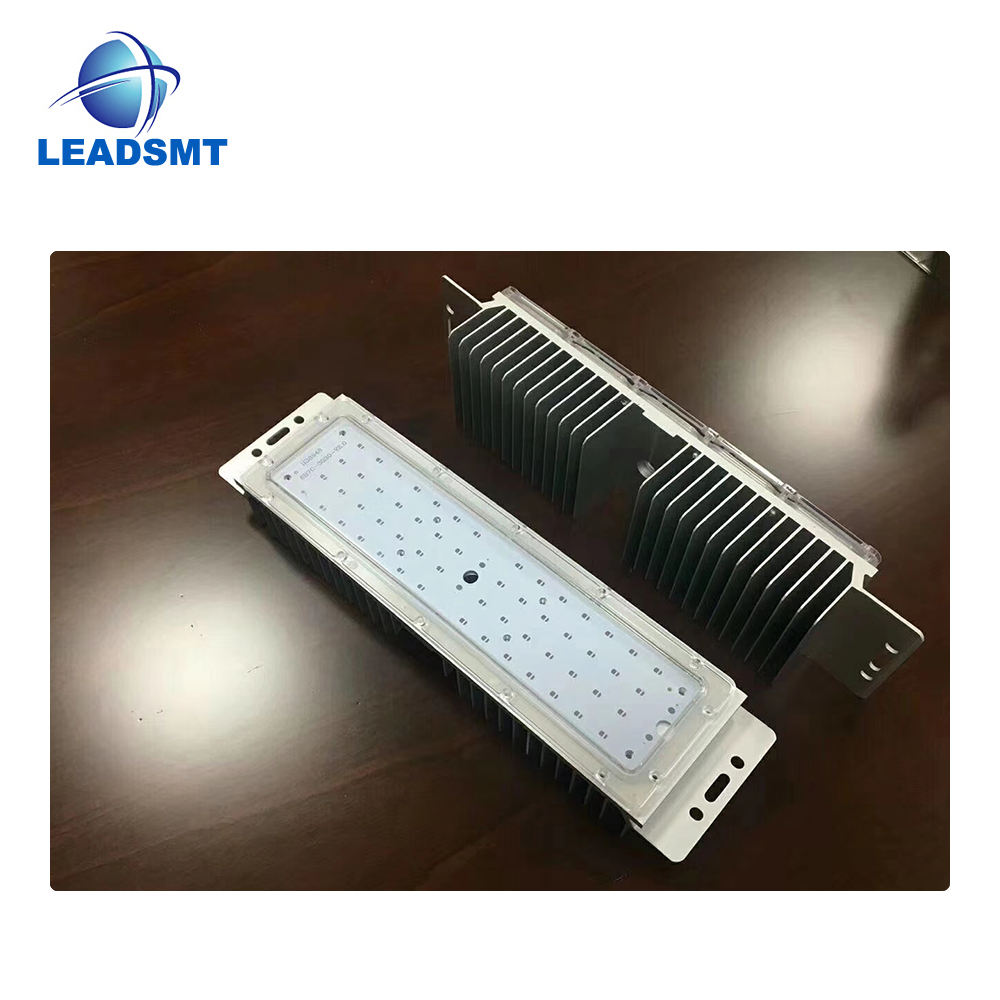

Qualified Led Flood Light Housing (236)

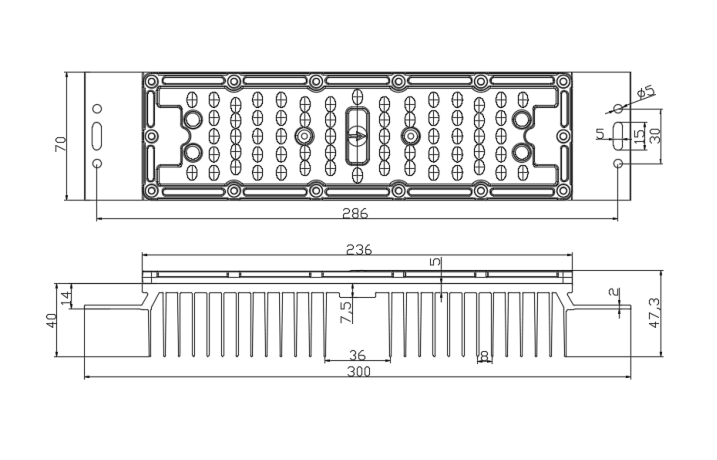

1. Housing Drawings
2.Detail Specifications
Aluminum Housing Model No.
236

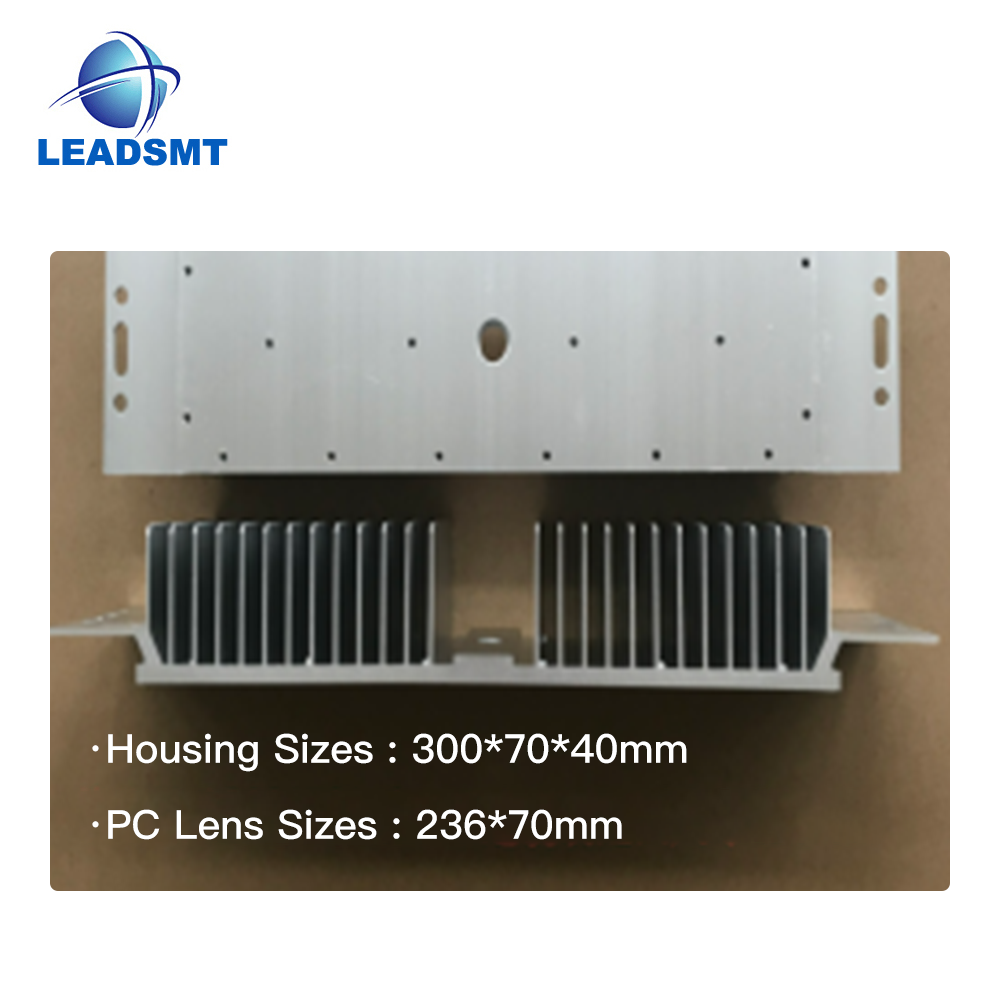

Housing Sizes
300*70*40(MM)
PC Lens Required Sizes
236*70(MM)
Housing Weight
450 grams
Material of the Housing
National Standard 6063 Anodized Aluminum with excellent quality for Surface treatment
Other Components Specifications
Optical PC Lens
Light Transmittance >90%,with Bean Angle 30 ,60,90 degree ,80*150,90*120 degree optional for different solutions,Combination of water-proof rubber meet requirements of IP65 and IP66 Standard
Aluminum PCB
PCB Board thickness=1.5mm ,Copper Printed Process,Copper Thickness=2.0 Oz,Made of Class A material,Heat Conductivity Coefficient =1.2
Screws
M3*4 screws for pcb board (6pcs) ,M3*7 for PC Lens (14pcs ), M12 for power driver wire (1pcs)
Other Parts
Power Driver fixture and Led Flood Light Fixture and Carton Box without Logo

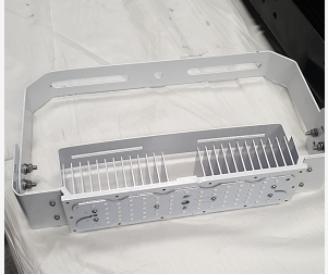

3.Main Components Demonstration

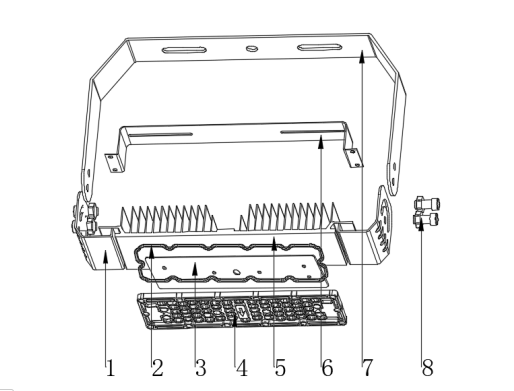

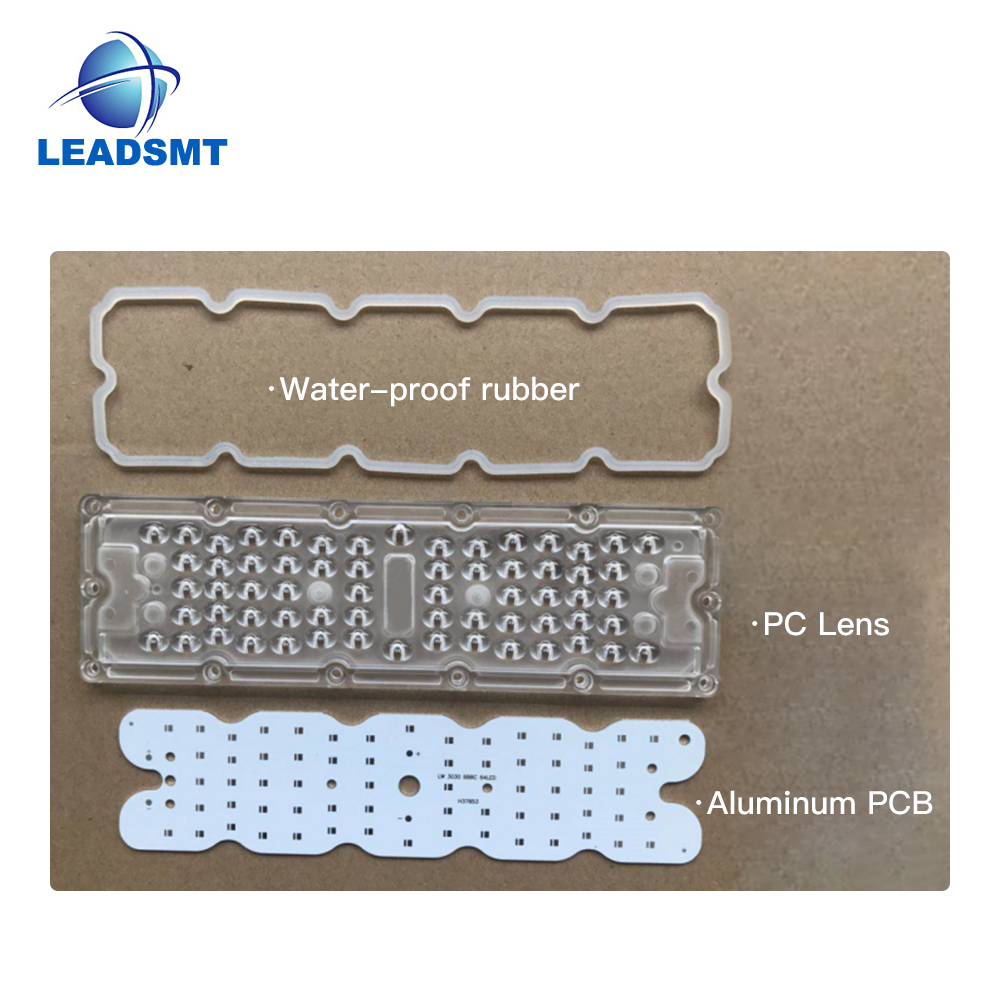

1. End Block 2.Water-proof Rubber 3.Aluminum PCB 4.PC Lens 8 Screws
5.Aluminum Housing 6.Power Driver Fixture 7.Flood Lighting U Fixture
4.Solutions for Single Model
Description
Power
PCB Design
No.of Led
PC Lens Bean Angle
Solution 1
64W
8 Parallels ,8 Series
64 PCS of 3030 led
30,60,90,80*150,90*120 Degree Available

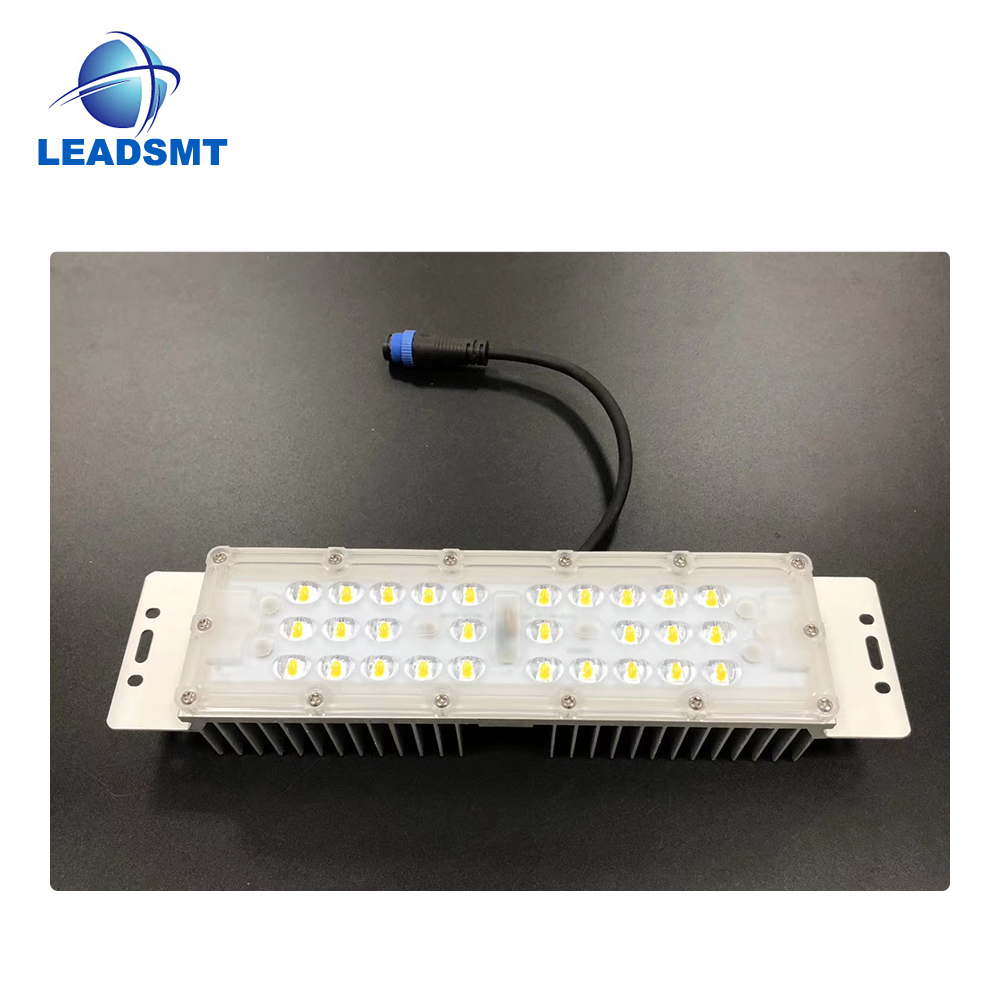

Solution 2
42W
7 Parallels ,6 Series
42 PCS of 3030 Led
80*150 degree
Solution 3
28W
12 Parallels, 2 Series
28 PCS of 5050 Led
60,90,80*150,90*120 degree

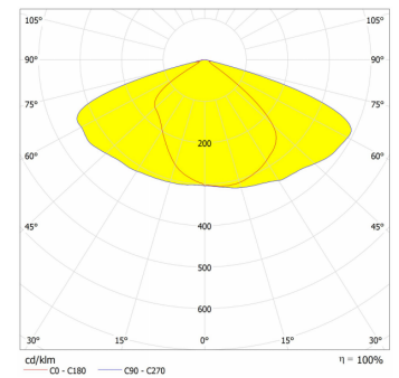

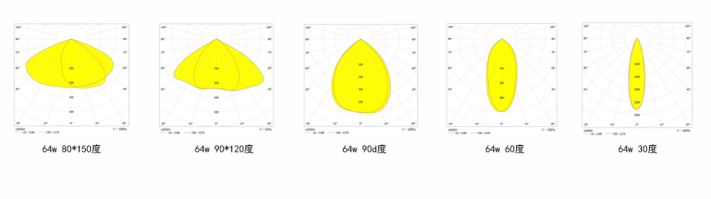

Solution 1 Photometric Graph
Solution 2 Photometric Graph

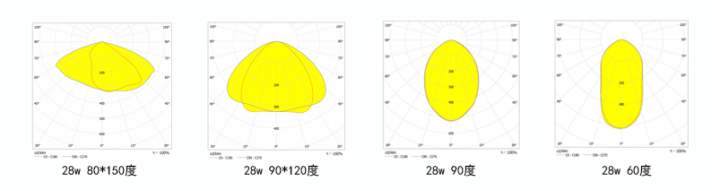

Solution 3 Photometric Graph

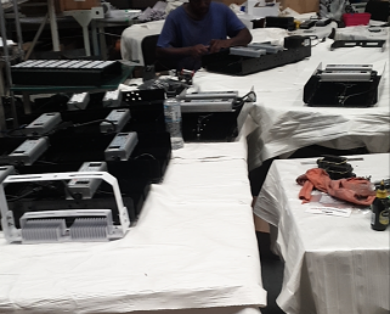

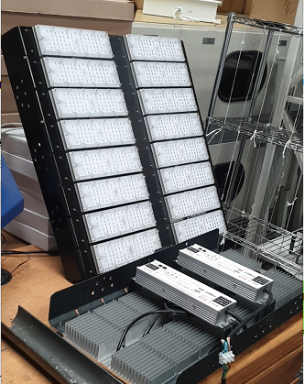

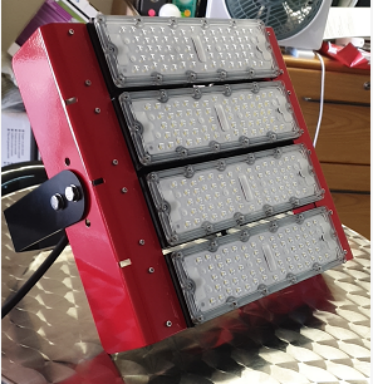

7.Customer’s assembly the Led Flood Lights at their factories Around the world.
